Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-WN0706-D063-A22-Z06-H
AHFM(L)-WN series · see all 10 sizes
Insert compatibility
This size is built for the insert designation WNMU 070620 (as listed in the catalogue data).

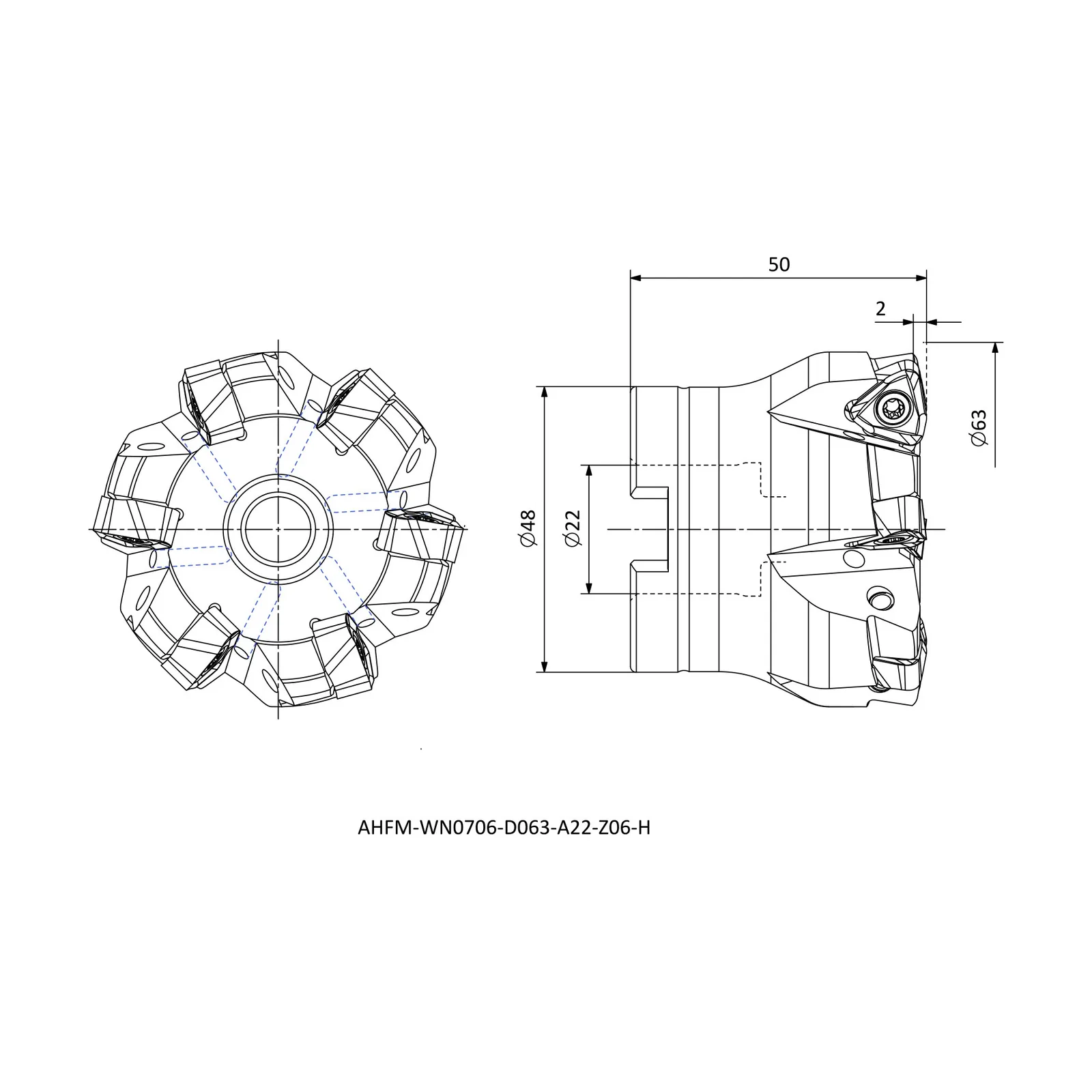

Specifications — AHFM-WN0706-D063-A22-Z06-H
| Insert Code | Insert designation | WNMU 070620 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 63 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
