Tool Holders / High Feed Milling Tools (ARBOR Type)

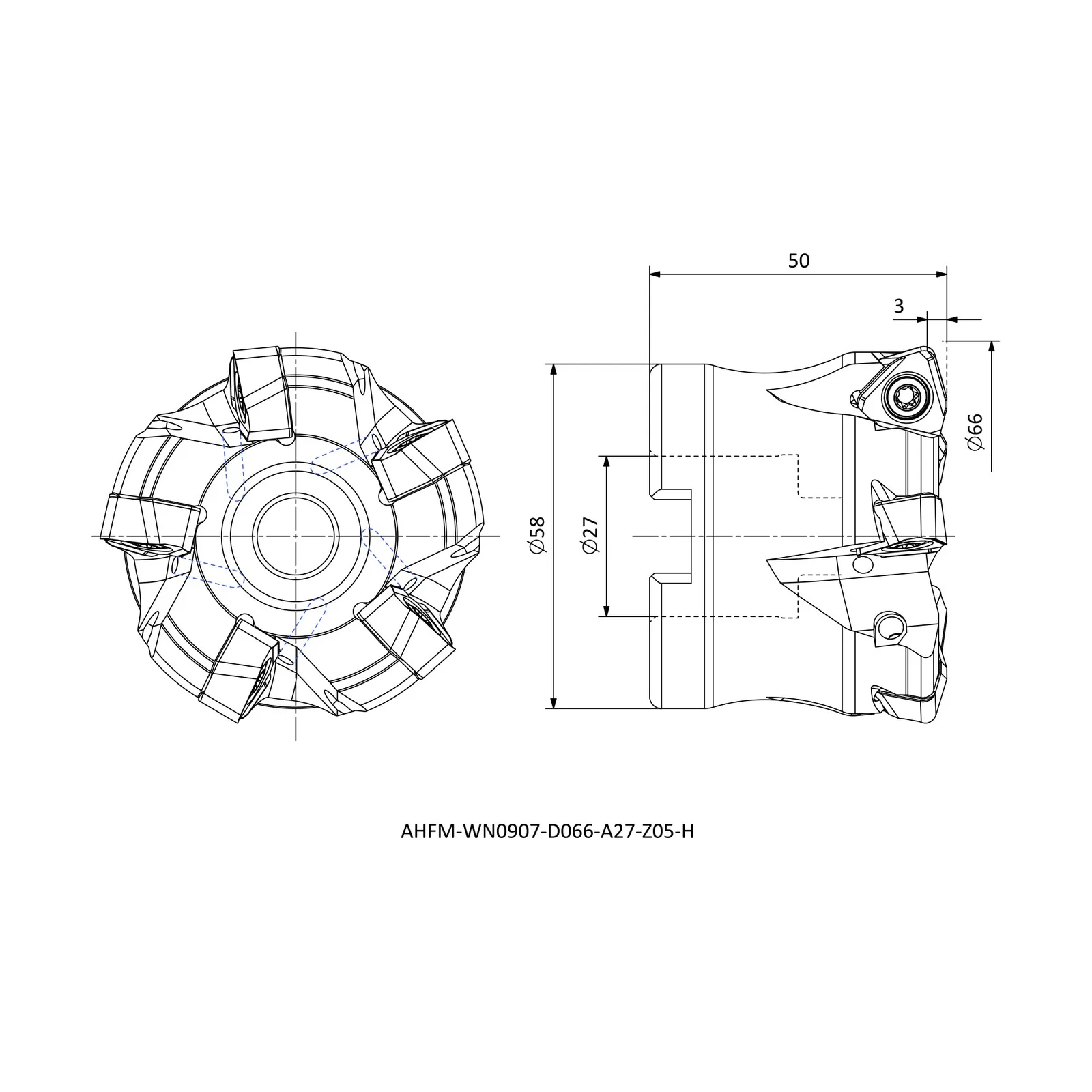

AHFM-WN0907-D066-A27-Z05-H
AHFM(L)-WN series · see all 10 sizes
Insert compatibility
This size is built for the insert designation WNMU 0907 (as listed in the catalogue data).
Specifications — AHFM-WN0907-D066-A27-Z05-H
| Insert Code | Insert designation | WNMU 0907.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 66 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 3 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in AHFM(L)-WN
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-WN0503-D050-A22-Z07-H | R | 22 | 50 | 50 |
| AHFM-WN0706-D050-A22-Z05-H | R | 22 | 50 | 50 |
| AHFM-WN0706-D063-A22-Z06-H | R | 22 | 50 | 63 |
| AHFM-WN0706-D080-A27-Z07-H | R | 27 | 50 | 80 |
| AHFM-WN0907-D050-A22-Z04-H | R | 22 | 50 | 50 |
| AHFM-WN0907-D052-A22-Z04-H | R | 22 | 50 | 52 |
| AHFM-WN0907-D063-A22-Z05-H | R | 22 | 50 | 63 |
| AHFM-WN0907-D066-A27-Z05-H | R | 27 | 50 | 66 |
| AHFM-WN0907-D080-A27-Z06-H | R | 27 | 50 | 80 |
| AHFM-WN0907-D100-A32-Z07-H | R | 32 | 50 | 100 |
