Tool Holders / M-System Boring Bars
S32T MCLNR 12
MCLNR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation CNM. 1204 (as listed in the catalogue data).

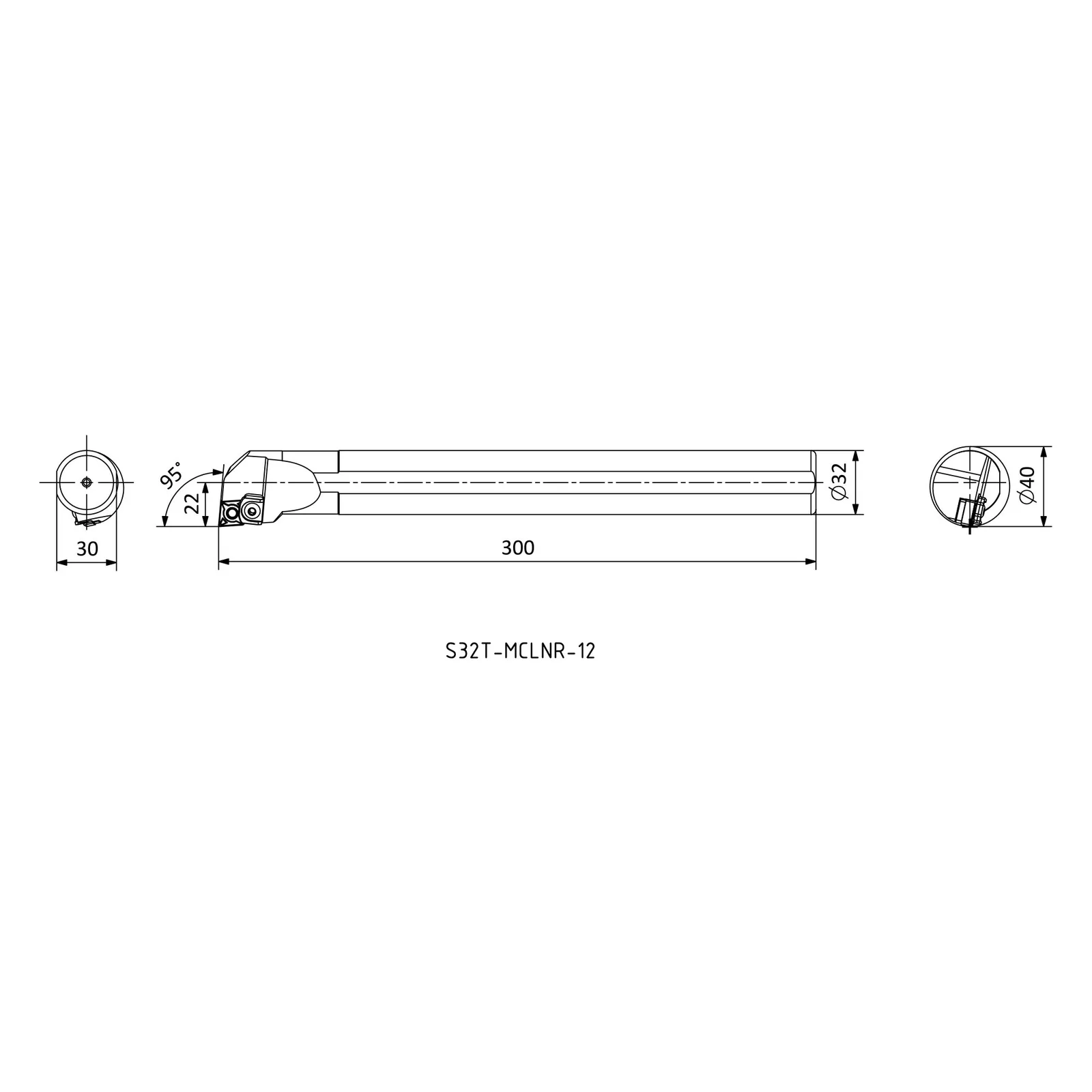

Specifications — S32T MCLNR 12
| Insert Code | Insert designation | CNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 300 |
| WF | Functional width (mm) | 22 |
| H | Shank height (mm) | 30 |
| D min | Minimum working diameter (mm) | ≥40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in MCLNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S20R MCLNL 12 | L | 20 | 200 | 13 |
| S20R MCLNR 12 | R | 20 | 200 | 13 |
| S25S MCLNL 12 | L | 25 | 250 | 17 |
| S25S MCLNR 12 | R | 25 | 250 | 17 |
| S32T MCLNL 12 | L | 32 | 300 | 22 |
| S32T MCLNR 12 | R | 32 | 300 | 22 |
