Tool Holders / M-System Boring Bars
S20R MWLNR 06
MWLNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation WNM. 0604 (as listed in the catalogue data).

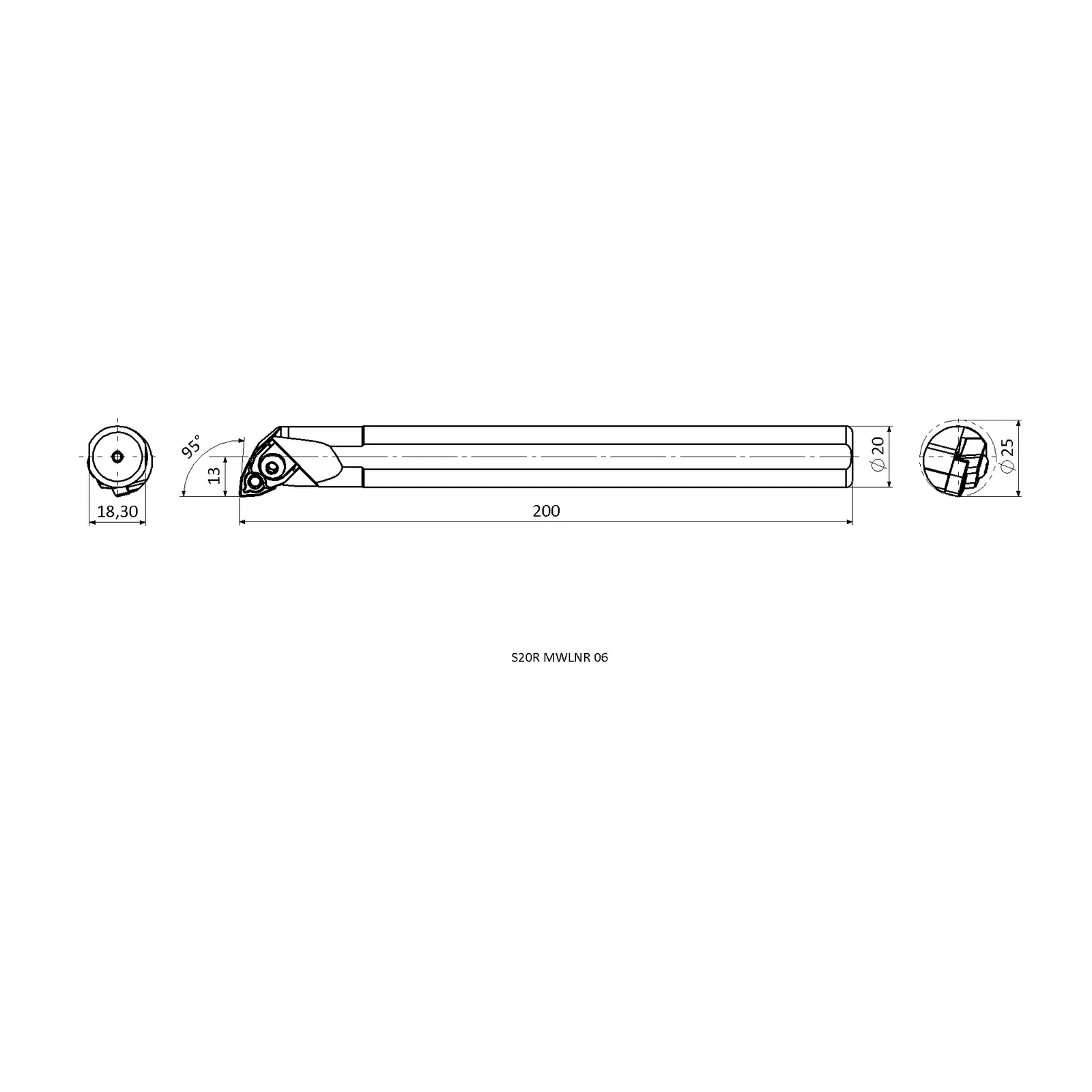

Specifications — S20R MWLNR 06
| Insert Code | Insert designation | WNM. 0604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 200 |
| WF | Functional width (mm) | 13 |
| H | Shank height (mm) | 18.3 |
| D min | Minimum working diameter (mm) | ≥25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in MWLNR/L
