Tool Holders / M-System Boring Bars
S32T MWLNL 08
MWLNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).

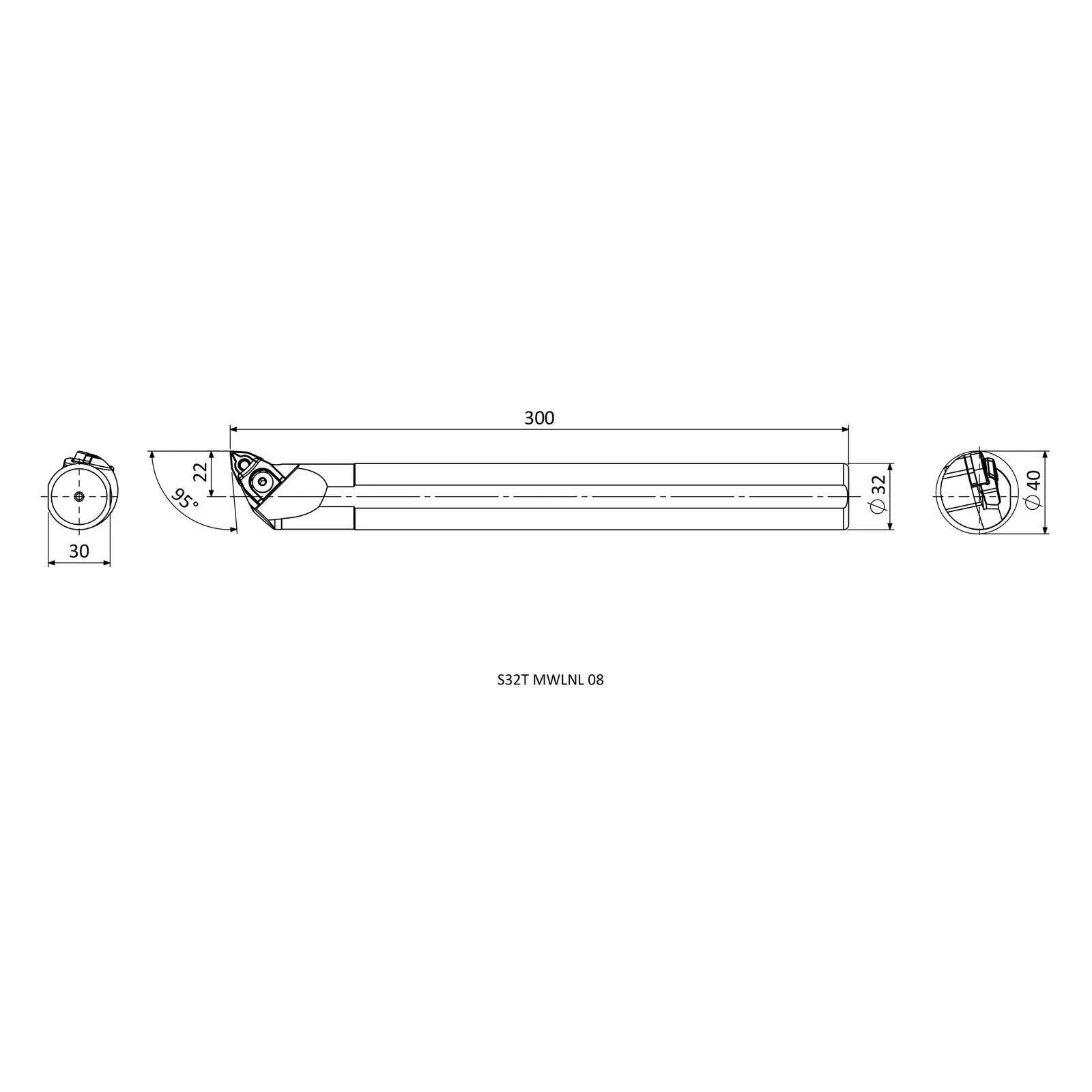

Specifications — S32T MWLNL 08
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 300 |
| WF | Functional width (mm) | 22 |
| H | Shank height (mm) | 30 |
| D min | Minimum working diameter (mm) | ≥40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in MWLNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S16P MWLNL 06 | L | 16 | 170 | 11 |
| S16P MWLNR 06 | R | 16 | 170 | 11 |
| S20R MWLNL 06 | L | 20 | 200 | 13 |
| S20R MWLNR 06 | R | 20 | 200 | 13 |
| S25S MWLNL 06 | L | 25 | 250 | 17 |
| S25S MWLNR 06 | R | 25 | 250 | 17 |
| S25S MWLNL 08 | L | 25 | 250 | 17 |
| S25S MWLNR 08 | R | 25 | 250 | 17 |
| S20R MWLNL 08 | L | 20 | 200 | 13 |
| S20R MWLNR 08 | R | 20 | 200 | 13 |
| S32T MWLNL 08 | L | 32 | 300 | 22 |
| S32T MWLNR 08 | R | 32 | 300 | 22 |
| S40U MWLNL 08 | L | 40 | 350 | 27 |
| S40U MWLNR 08 | R | 40 | 350 | 27 |
