Tool Holders / M-System External Turning Toolholders

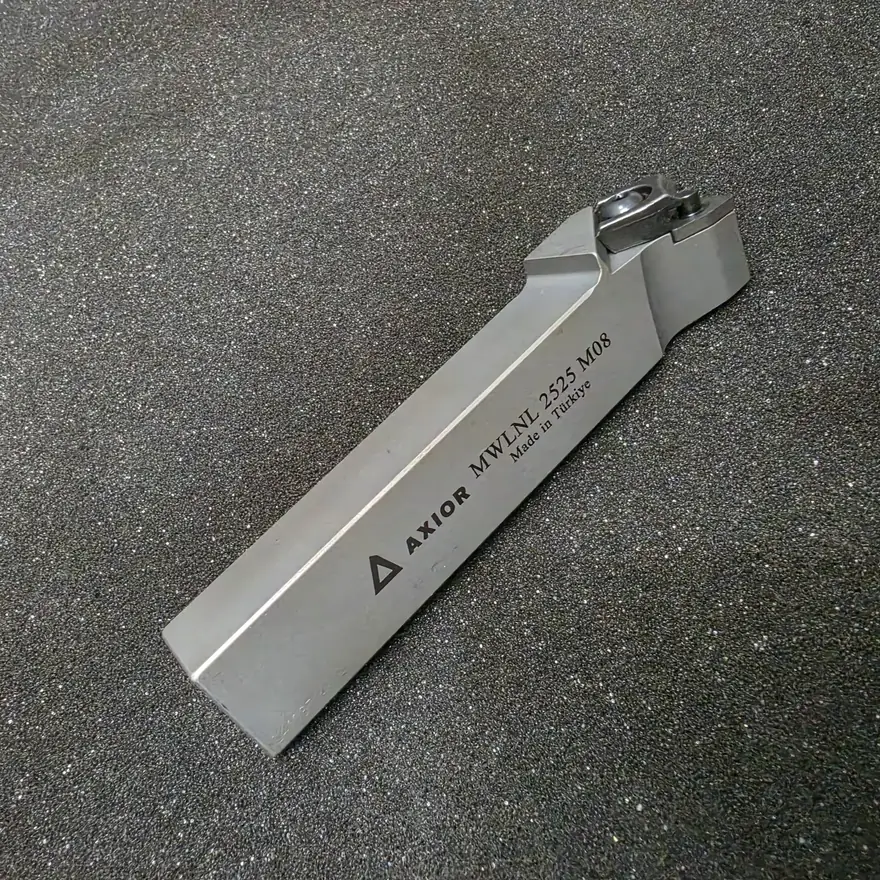

MWLNR/L
12 sizes available · 7 specification fields · standard: ISO
MWLNR/L is an external turning tool holder that takes negative 80° trigon (W-type) inserts. It is listed here in 12 sizes, 16–32 × 16–32 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- WNM. 0804..
- WNM. 0604..
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|
| MWLNR 2020 K08 | WNM. 0804.. | R | 125 | 25 | 20 | 20 |
| MWLNL 2020 K08 | WNM. 0804.. | L | 125 | 25 | 20 | 20 |
| MWLNL 1616 H06 | WNM. 0604.. | L | 100 | 20 | 16 | 16 |
| MWLNR 1616 H06 | WNM. 0604.. | R | 100 | 20 | 16 | 16 |
| MWLNL 2020 K06 | WNM. 0604.. | L | 125 | 25 | 20 | 20 |
| MWLNR 2020 K06 | WNM. 0604.. | R | 125 | 25 | 20 | 20 |
| MWLNL 2525 M06 | WNM. 0604.. | L | 150 | 32 | 25 | 25 |
| MWLNR 2525 M06 | WNM. 0604.. | R | 150 | 32 | 25 | 25 |
| MWLNL 2525 M08 | WNM. 0804.. | L | 150 | 32 | 25 | 25 |
| MWLNR 2525 M08 | WNM. 0804.. | R | 150 | 32 | 25 | 25 |
| MWLNL 3232 P08 | WNM. 0804.. | L | 170 | 40 | 32 | 32 |
| MWLNR 3232 P08 | WNM. 0804.. | R | 170 | 40 | 32 | 32 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
