Tool Holders / M-System External Turning Toolholders

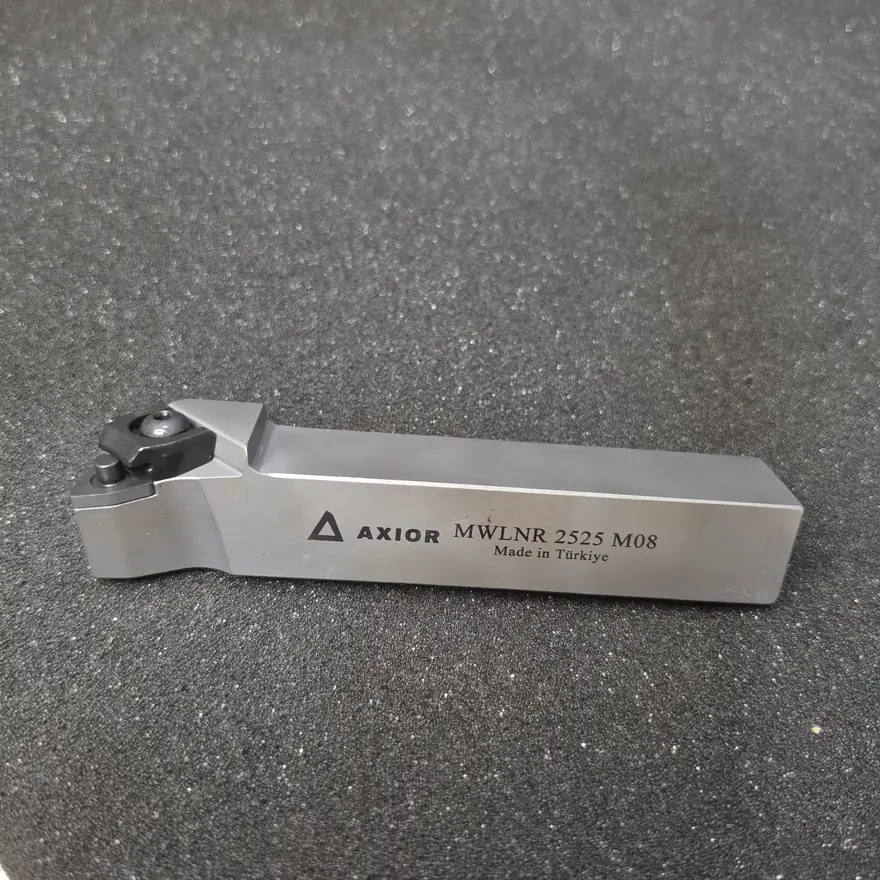

MWLNR 2525 M08
MWLNR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).

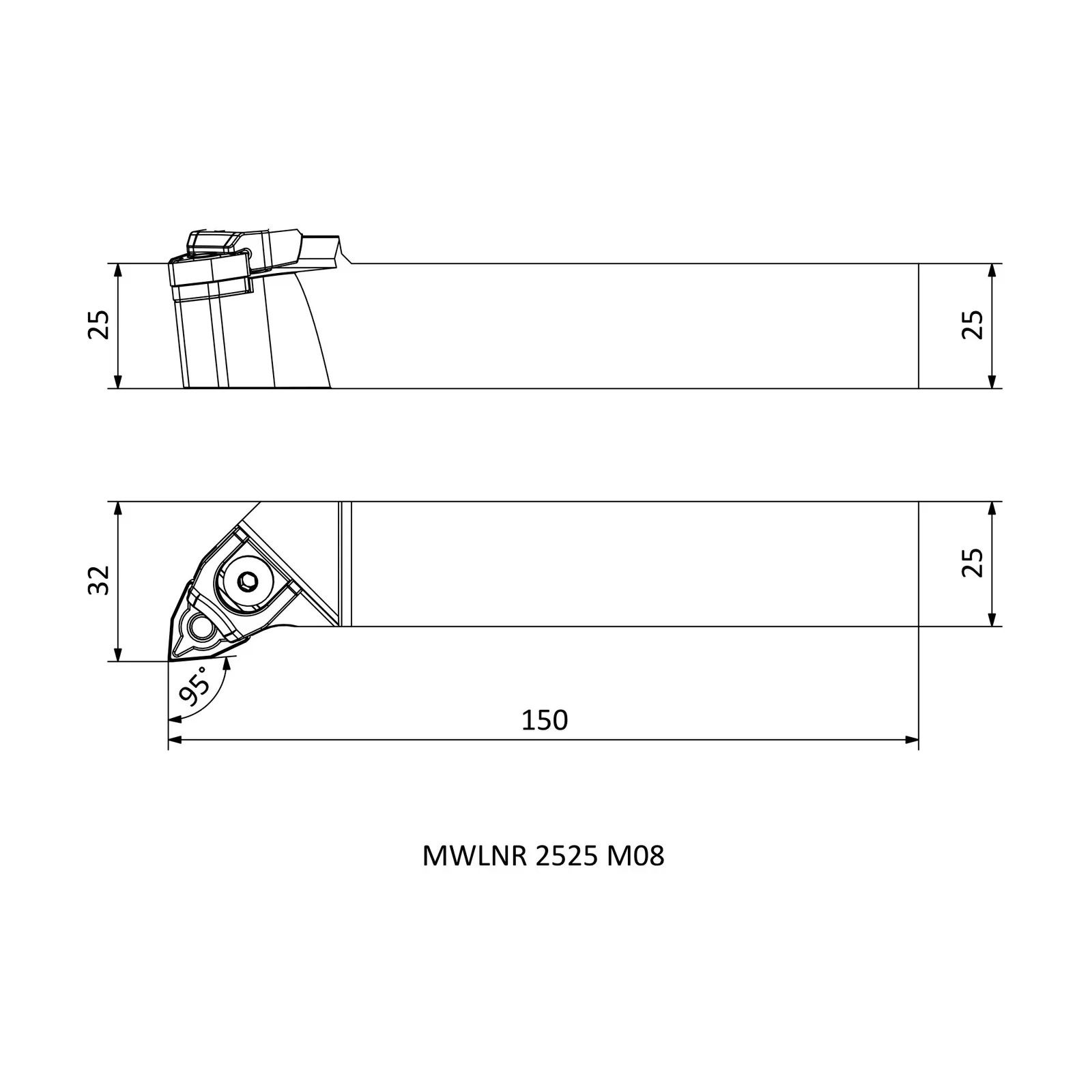

Specifications — MWLNR 2525 M08
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in MWLNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| MWLNR 2020 K08 | R | 125 | 25 | 20 |
| MWLNL 2020 K08 | L | 125 | 25 | 20 |
| MWLNL 1616 H06 | L | 100 | 20 | 16 |
| MWLNR 1616 H06 | R | 100 | 20 | 16 |
| MWLNL 2020 K06 | L | 125 | 25 | 20 |
| MWLNR 2020 K06 | R | 125 | 25 | 20 |
| MWLNL 2525 M06 | L | 150 | 32 | 25 |
| MWLNR 2525 M06 | R | 150 | 32 | 25 |
| MWLNL 2525 M08 | L | 150 | 32 | 25 |
| MWLNR 2525 M08 | R | 150 | 32 | 25 |
| MWLNL 3232 P08 | L | 170 | 40 | 32 |
| MWLNR 3232 P08 | R | 170 | 40 | 32 |
