Tool Holders / M-System External Turning Toolholders
MWLNR 2525 M06
MWLNR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation WNM. 0604 (as listed in the catalogue data).

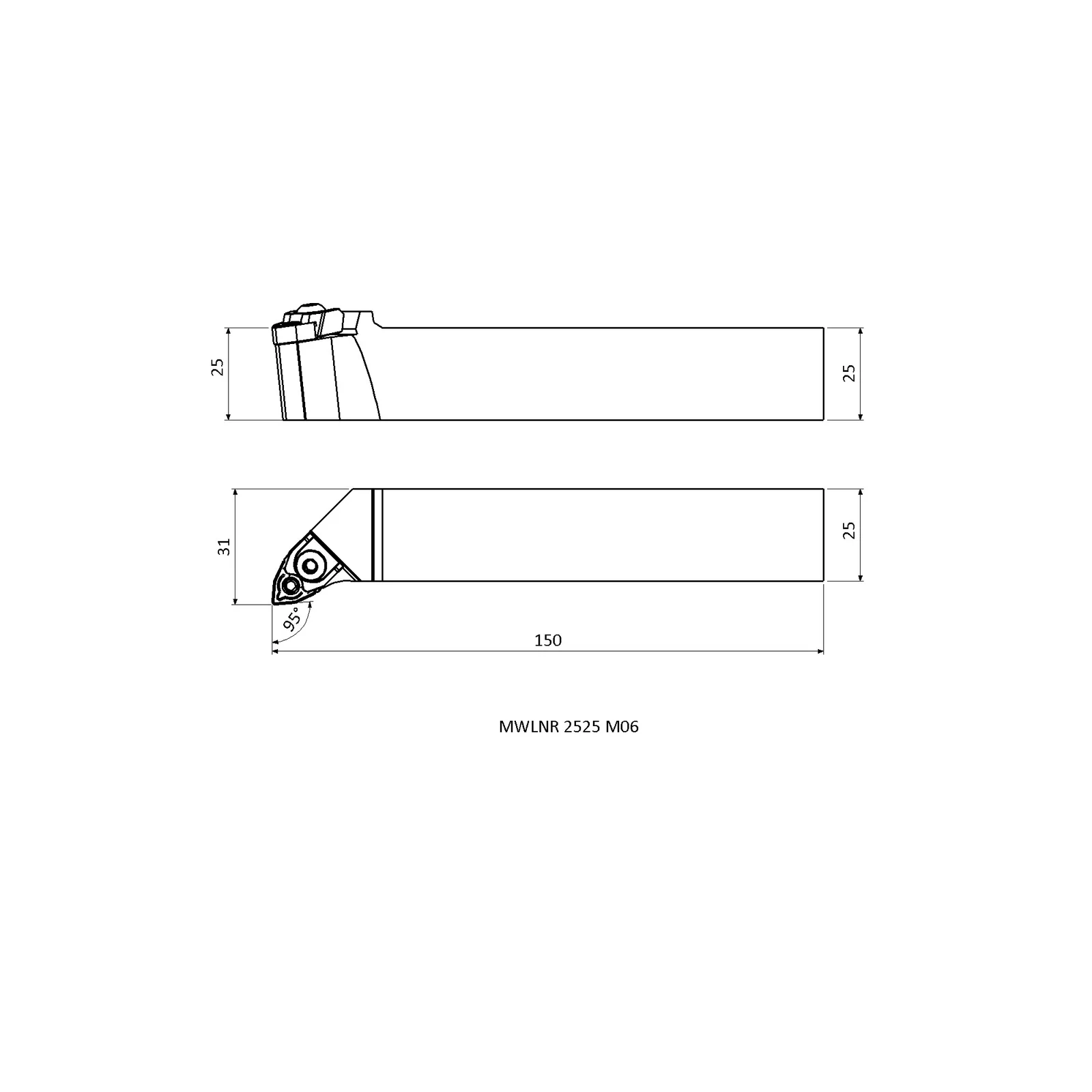

Specifications — MWLNR 2525 M06
| Insert Code | Insert designation | WNM. 0604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
