PDJNR/L

14 sizes available · 7 specification fields · standard: ISO

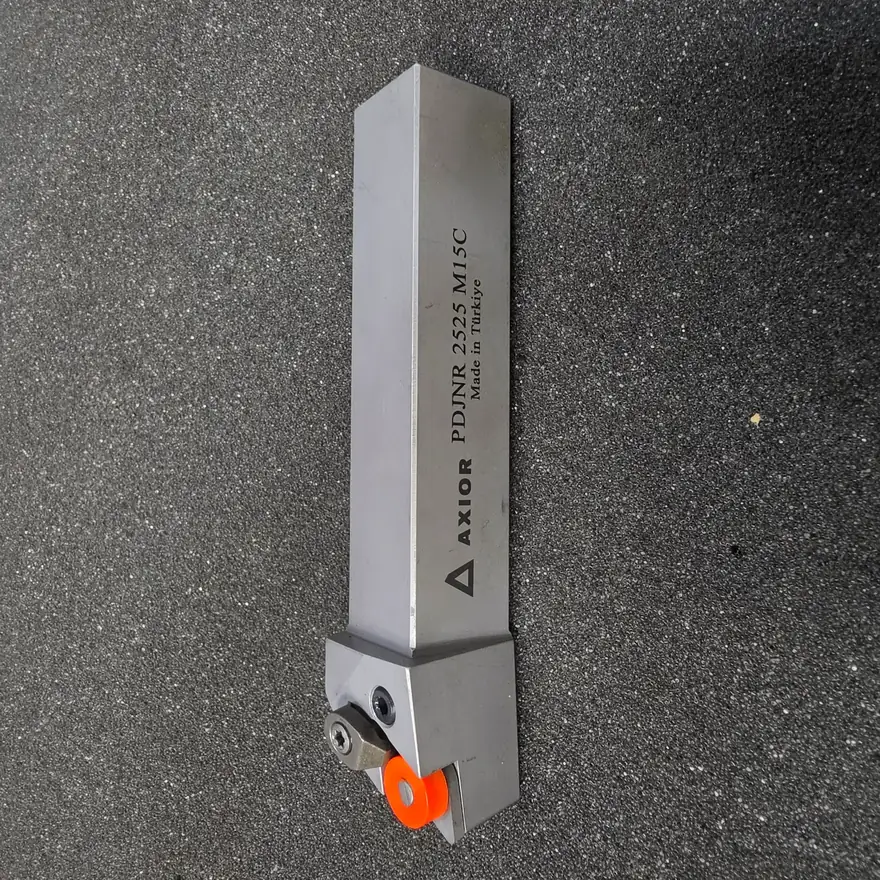

PDJNR/L is an external turning tool holder that takes negative 55° rhombic (D-type) inserts. It is listed here in 14 sizes, 16–40 × 16–40 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

DNM. 1104..
DNM. 1506..

Choose a size ↓ Ask about PDJNR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)	Shank width (mm)
PDJNR 1616 H11	DNM. 1104..	R	100	20	16	16
PDJNL 1616 H11	DNM. 1104..	L	100	20	16	16
PDJNL 2020 K11	DNM. 1104..	L	125	25	20	20
PDJNR 2020 K11	DNM. 1104..	R	125	25	20	20
PDJNL 2525 M11	DNM. 1104..	L	150	32	25	25
PDJNR 2525 M11	DNM. 1104..	R	150	32	25	25
PDJNL 2020 K15C	DNM. 1506..	L	125	25	20	20
PDJNR 2020 K15C	DNM. 1506..	R	125	25	20	20
PDJNL 2525 M15C	DNM. 1506..	L	150	32	25	25
PDJNR 2525 M15C	DNM. 1506..	R	150	32	25	25
PDJNL 3232 P15C	DNM. 1506..	L	170	40	32	32
PDJNR 3232 P15C	DNM. 1506..	R	170	40	32	32
PDJNL 4040 S15C	DNM. 1506..	L	252	50	40	40
PDJNR 4040 S15C	DNM. 1506..	R	250	50	40	40
