Tool Holders / P-System External Turning Toolholders
PDJNL 3232 P15C
PDJNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

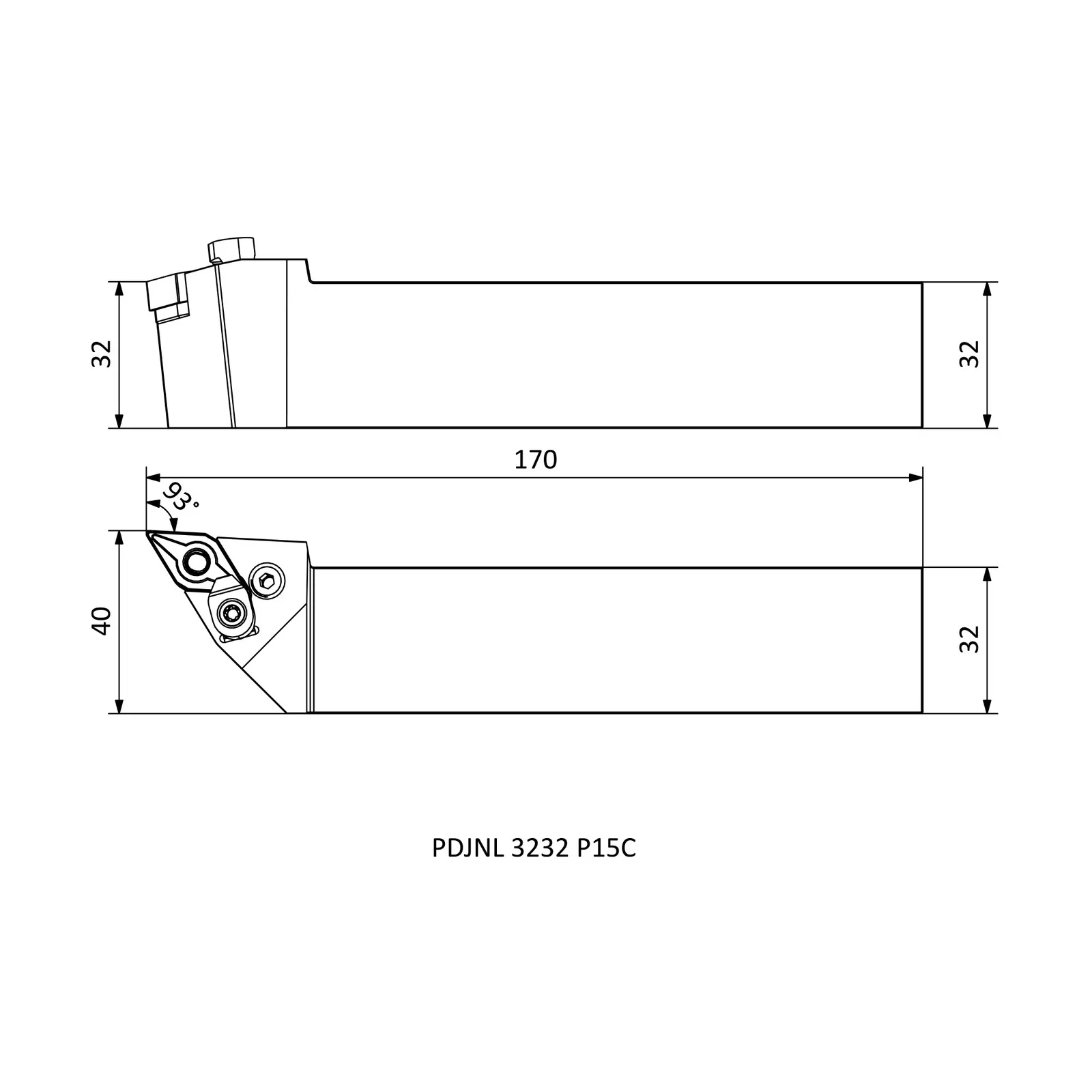

Specifications — PDJNL 3232 P15C
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in PDJNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PDJNR 1616 H11 | R | 100 | 20 | 16 |
| PDJNL 1616 H11 | L | 100 | 20 | 16 |
| PDJNL 2020 K11 | L | 125 | 25 | 20 |
| PDJNR 2020 K11 | R | 125 | 25 | 20 |
| PDJNL 2525 M11 | L | 150 | 32 | 25 |
| PDJNR 2525 M11 | R | 150 | 32 | 25 |
| PDJNL 2020 K15C | L | 125 | 25 | 20 |
| PDJNR 2020 K15C | R | 125 | 25 | 20 |
| PDJNL 2525 M15C | L | 150 | 32 | 25 |
| PDJNR 2525 M15C | R | 150 | 32 | 25 |
| PDJNL 3232 P15C | L | 170 | 40 | 32 |
| PDJNR 3232 P15C | R | 170 | 40 | 32 |
| PDJNL 4040 S15C | L | 252 | 50 | 40 |
| PDJNR 4040 S15C | R | 250 | 50 | 40 |
