Tool Holders / P-System External Turning Toolholders

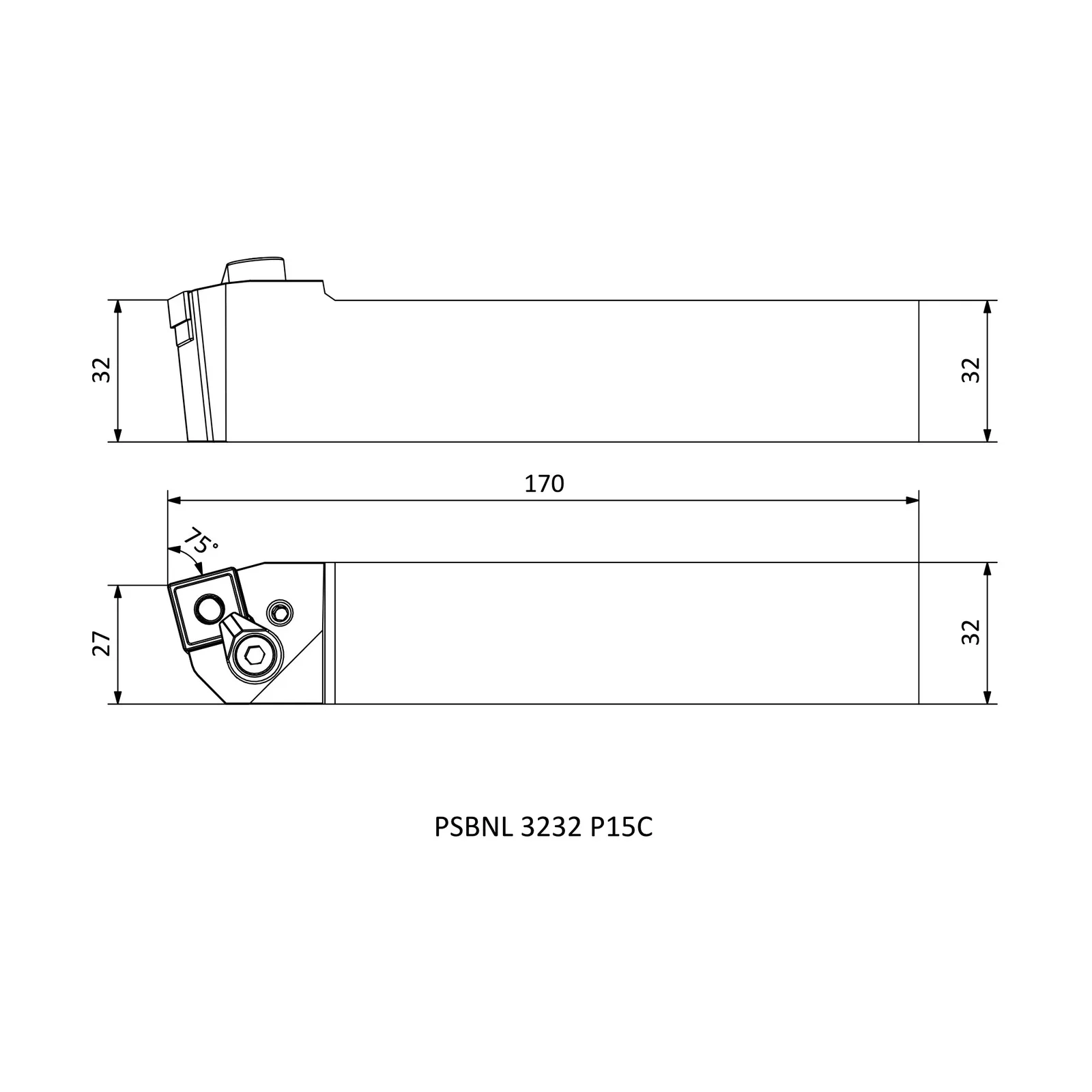

PSBNL 3232 P15C
PSBNR/L series · see all 26 sizes
Insert compatibility
This size is built for the insert designation SNM. 1506 (as listed in the catalogue data).
Specifications — PSBNL 3232 P15C
| Insert Code | Insert designation | SNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 27 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 26 sizes in PSBNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PSBNL 5050 S2507C | L | 250 | 43 | 50 |
| PSBNR 5050 S2507C | R | 250 | 43 | 50 |
| PSBNL 5050 S19C | L | 250 | 45 | 50 |
| PSBNR 5050 S19C | R | 250 | 45 | 50 |
| PSBNL 1616 H09 | L | 100 | 13 | 16 |
| PSBNR 1616 H09 | R | 100 | 13 | 16 |
| PSBNL 2020 K09 | L | 125 | 17 | 20 |
| PSBNR 2020 K09 | R | 125 | 17 | 20 |
| PSBNL 2020 K12 | L | 125 | 17 | 20 |
| PSBNR 2020 K12 | R | 125 | 17 | 20 |
| PSBNL 2525 M12C | L | 150 | 22 | 25 |
| PSBNR 2525 M12C | R | 150 | 22 | 25 |
| PSBNL 3232 P12C | L | 170 | 27 | 32 |
| PSBNR 3232 P12C | R | 170 | 27 | 32 |
| PSBNL 2525 M15 | L | 150 | 22 | 25 |
| PSBNR 2525 M15 | R | 150 | 22 | 25 |
| PSBNL 3232 P15C | L | 170 | 27 | 32 |
| PSBNR 3232 P15C | R | 170 | 27 | 32 |
| PSBNL 3232 P19C | L | 170 | 27 | 32 |
| PSBNR 3232 P19C | R | 170 | 27 | 32 |
| PSBNL 4040 S19C | L | 250 | 35 | 40 |
| PSBNR 4040 S19C | R | 250 | 35 | 40 |
| PSBNL 4040 S25C | L | 250 | 35 | 40 |
| PSBNR 4040 S25C | R | 250 | 35 | 40 |
| PSBNL 5050 S25C | L | 250 | 43 | 50 |
| PSBNR 5050 S25C | R | 250 | 43 | 50 |
