Tool Holders / P-System External Turning Toolholders
PTFNL 2525 M16
PTFNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).

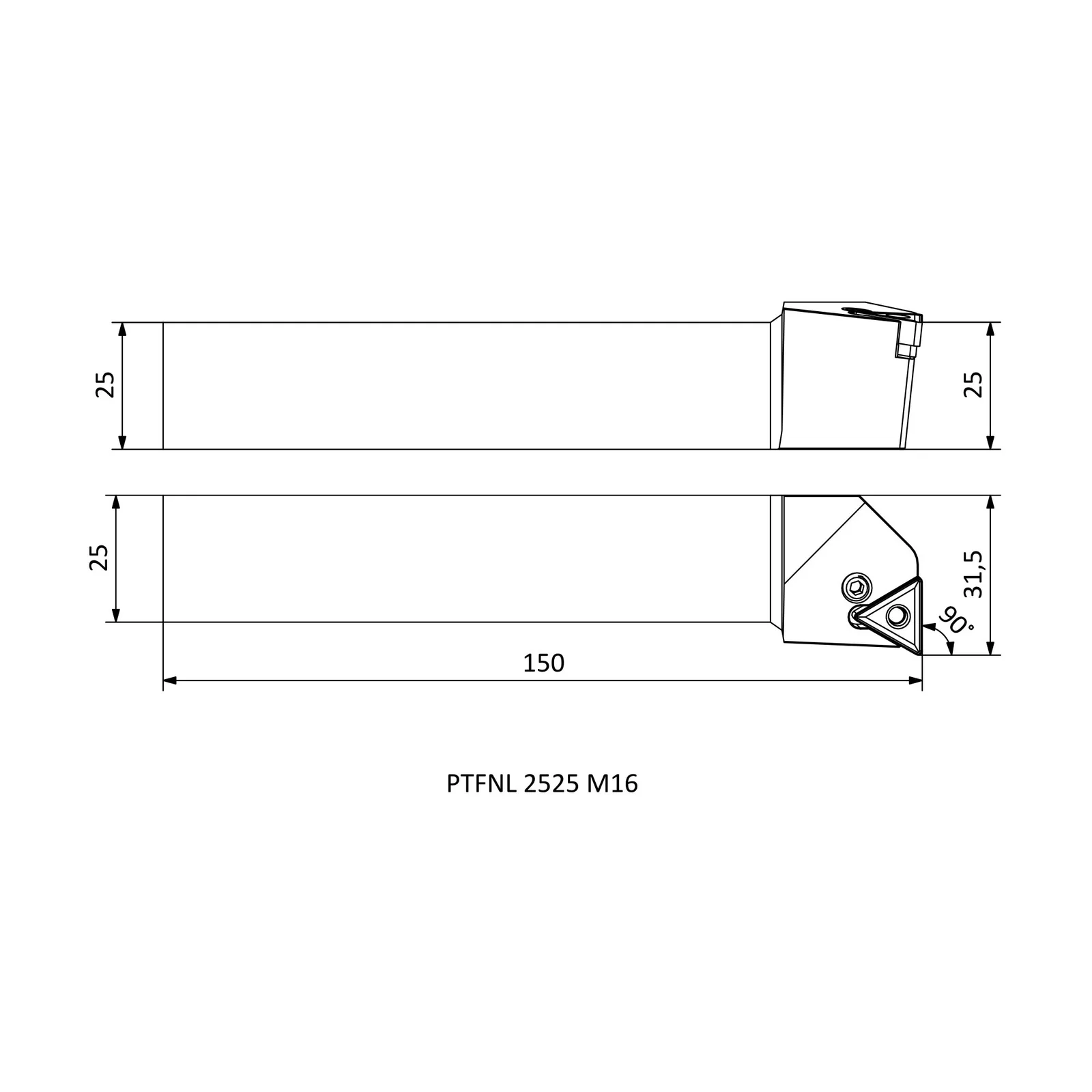

Specifications — PTFNL 2525 M16
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in PTFNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PTFNL 1616 H16 | L | 100 | 20 | 16 |
| PTFNR 1616 H16 | R | 100 | 20 | 16 |
| PTFNL 2020 K16 | L | 125 | 25 | 20 |
| PTFNR 2020 K16 | R | 125 | 25 | 20 |
| PTFNL 2525 M16 | L | 150 | 32 | 25 |
| PTFNR 2525 M16 | R | 150 | 32 | 25 |
| PTFNL 3232 P16 | L | 170 | 40 | 32 |
| PTFNR 3232 P16 | R | 170 | 40 | 32 |
| PTFNL 2525 M22C | L | 150 | 32 | 25 |
| PTFNR 2525 M22C | R | 150 | 32 | 25 |
| PTFNL 3232 P22C | L | 170 | 40 | 32 |
| PTFNR 3232 P22C | R | 170 | 40 | 32 |
| PTFNL 4040 S27C | L | 250 | 50 | 40 |
| PTFNR 4040 S27C | R | 250 | 50 | 40 |
