Tool Holders / P-System External Turning Toolholders
PTFNL 3232 P22C
PTFNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TNM. 2204 (as listed in the catalogue data).

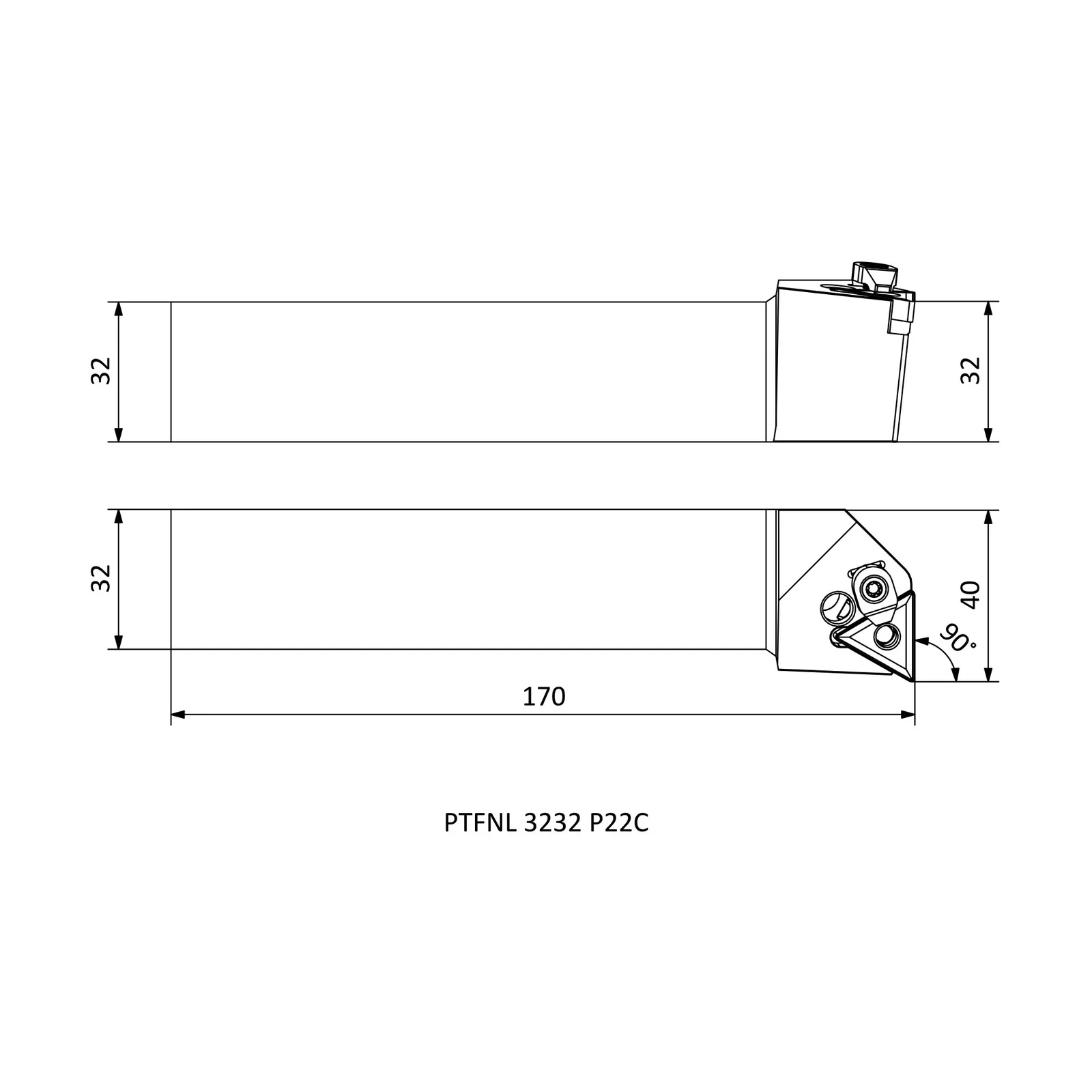

Specifications — PTFNL 3232 P22C
| Insert Code | Insert designation | TNM. 2204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
