Tool Holders / P-System External Turning Toolholders

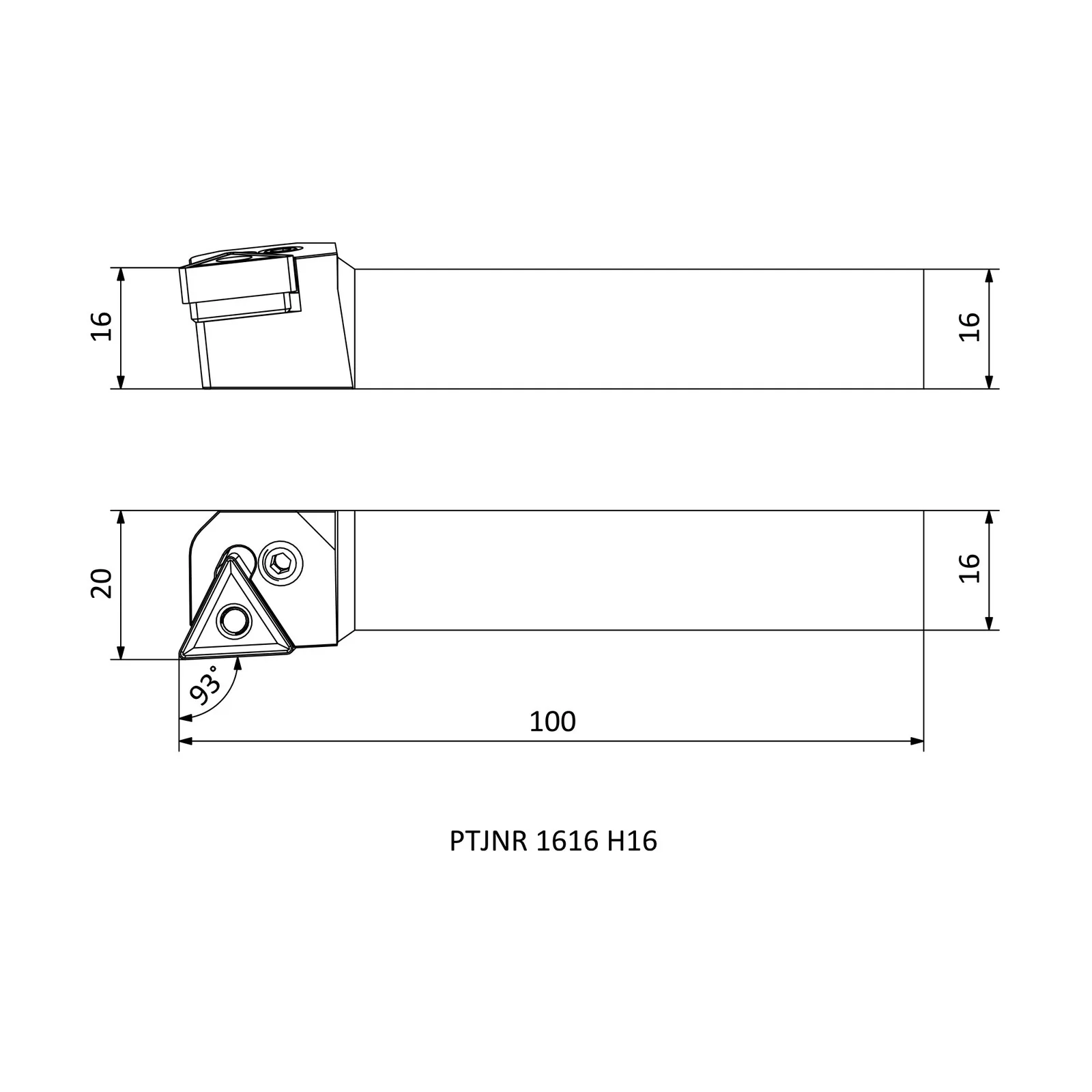

PTJNR 1616 H16
PTJNR/L series · see all 20 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).
Specifications — PTJNR 1616 H16
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 100 |
| HF=H | Functional height (mm) | 16 |
| B | Shank width (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 20 sizes in PTJNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PTJNR 3232 P16 | R | 170 | 40 | 32 |
| PTJNL 3232 P16 | L | 170 | 40 | 32 |
| PTJNL 1010 E11 | L | 70 | 70 | 10 |
| PTJNR 1010 E11 | R | 70 | 70 | 10 |
| PTJNL 1212 F11 | L | 80 | 80 | 12 |
| PTJNR 1212 F11 | R | 80 | 80 | 12 |
| PTJNL 1616 H11 | L | 100 | 100 | 16 |
| PTJNR 1616 H11 | R | 100 | 100 | 16 |
| PTJNL 1616 H16 | L | 100 | 100 | 16 |
| PTJNR 1616 H16 | R | 100 | 100 | 16 |
| PTJNL 2020 K16 | L | 125 | 125 | 20 |
| PTJNR 2020 K16 | R | 125 | 125 | 20 |
| PTJNL 2525 M16 | L | 150 | 150 | 25 |
| PTJNR 2525 M16 | R | 150 | 150 | 25 |
| PTJNL 2525 M22C | L | 150 | 150 | 25 |
| PTJNR 2525 M22C | R | 150 | 150 | 25 |
| PTJNL 3232 P22C | L | 170 | 170 | 32 |
| PTJNR 3232 P22C | R | 170 | 170 | 32 |
| PTJNL 4040 S27C | L | 250 | 250 | 40 |
| PTJNR 4040 S27C | R | 250 | 250 | 40 |
