PWLNR/L

16 sizes available · 7 specification fields · standard: ISO

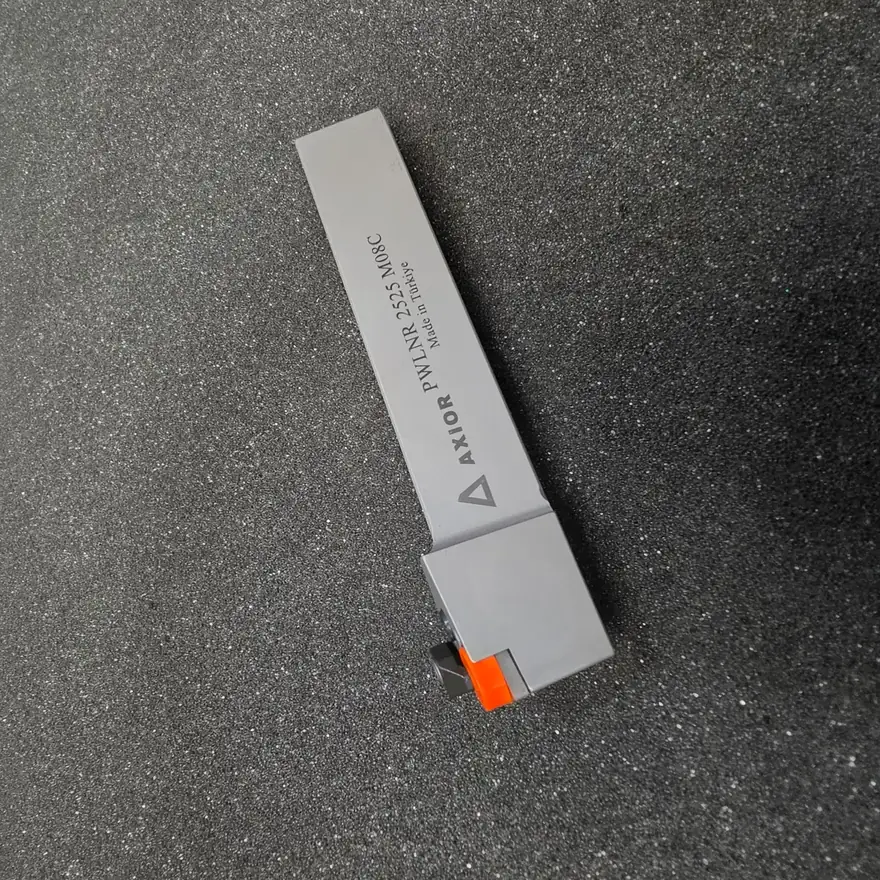

PWLNR/L is an external turning tool holder that takes negative 80° trigon (W-type) inserts. It is listed here in 16 sizes, 16–32 × 16–32 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

WNM. 0604..
WNM. 0804..

Choose a size ↓ Ask about PWLNR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)	Shank width (mm)
PWLNL 1616 H06	WNM. 0604..	L	100	20	16	16
PWLNR 1616 H06	WNM. 0604..	R	100	20	16	16
PWLNL 2020 K06	WNM. 0604..	L	125	25	20	20
PWLNR 2020 K06	WNM. 0604..	R	125	25	20	20
PWLNL 2525 M06	WNM. 0604..	L	150	32	25	25
PWLNR 2525 M08C	WNM. 0804..	R	150	32	25	25
PWLNL 3232 P06	WNM. 0604..	L	170	40	32	32
PWLNR 3232 P08C	WNM. 0804..	R	170	40	32	32
PWLNL 3232 P08C	WNM. 0804..	L	170	40	32	32
PWLNR 3232 P06	WNM. 0604..	R	170	40	32	32
PWLNL 1616 H08	WNM. 0804..	L	100	20	16	16
PWLNR 1616 H08	WNM. 0804..	R	100	20	16	16
PWLNL 2020 K08C	WNM. 0804..	L	125	25	20	20
PWLNR 2020 K08C	WNM. 0804..	R	125	25	20	20
PWLNL 2525 M08C	WNM. 0804..	L	150	32	25	25
PWLNR 2525 M06	WNM. 0604..	R	150	32	25	25
