Tool Holders / P-System External Turning Toolholders
PWLNL 2020 K08C
PWLNR/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).

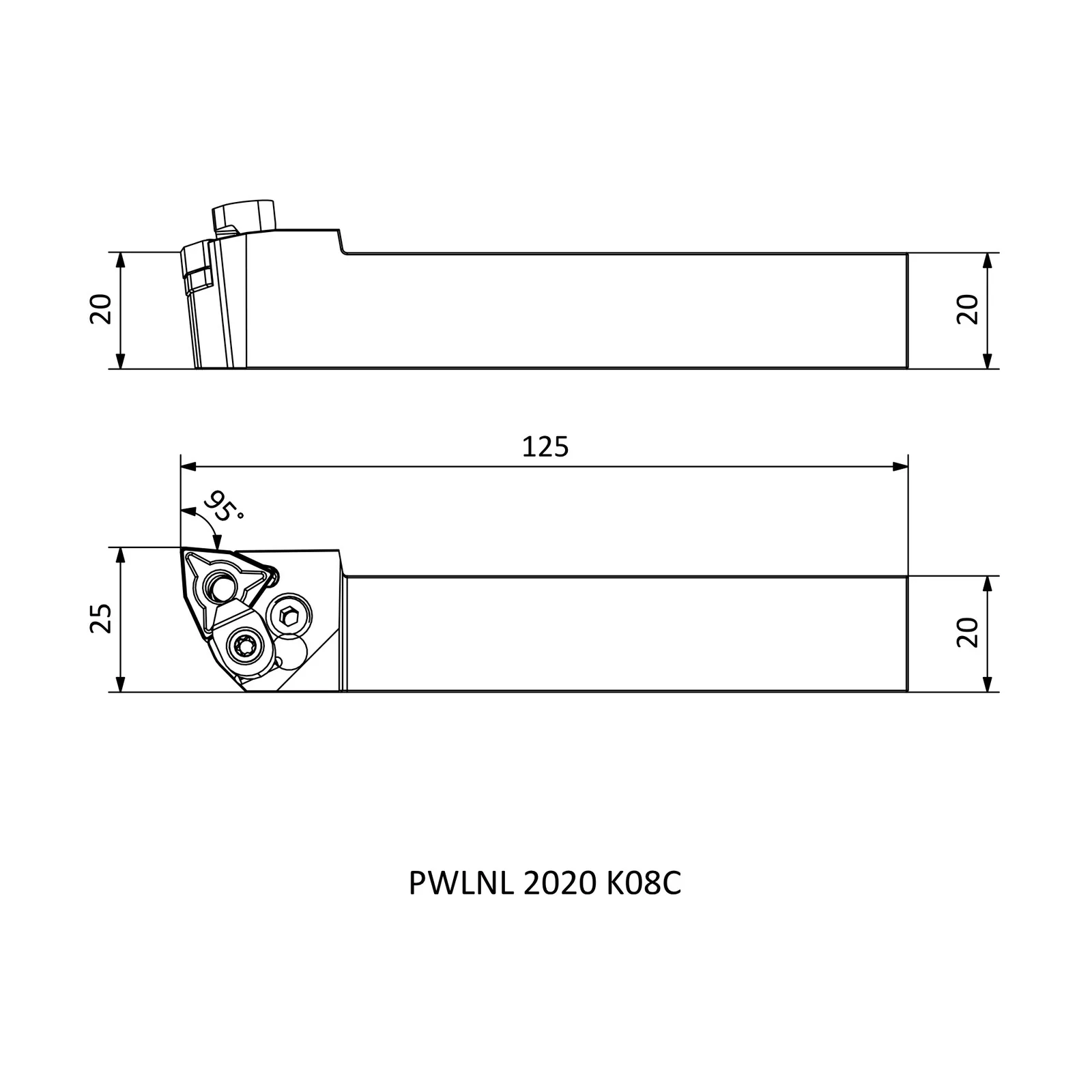

Specifications — PWLNL 2020 K08C
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in PWLNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
