Tool Holders / Rough Boring Bars
AKCR 28-38
AKCR series · see all 9 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

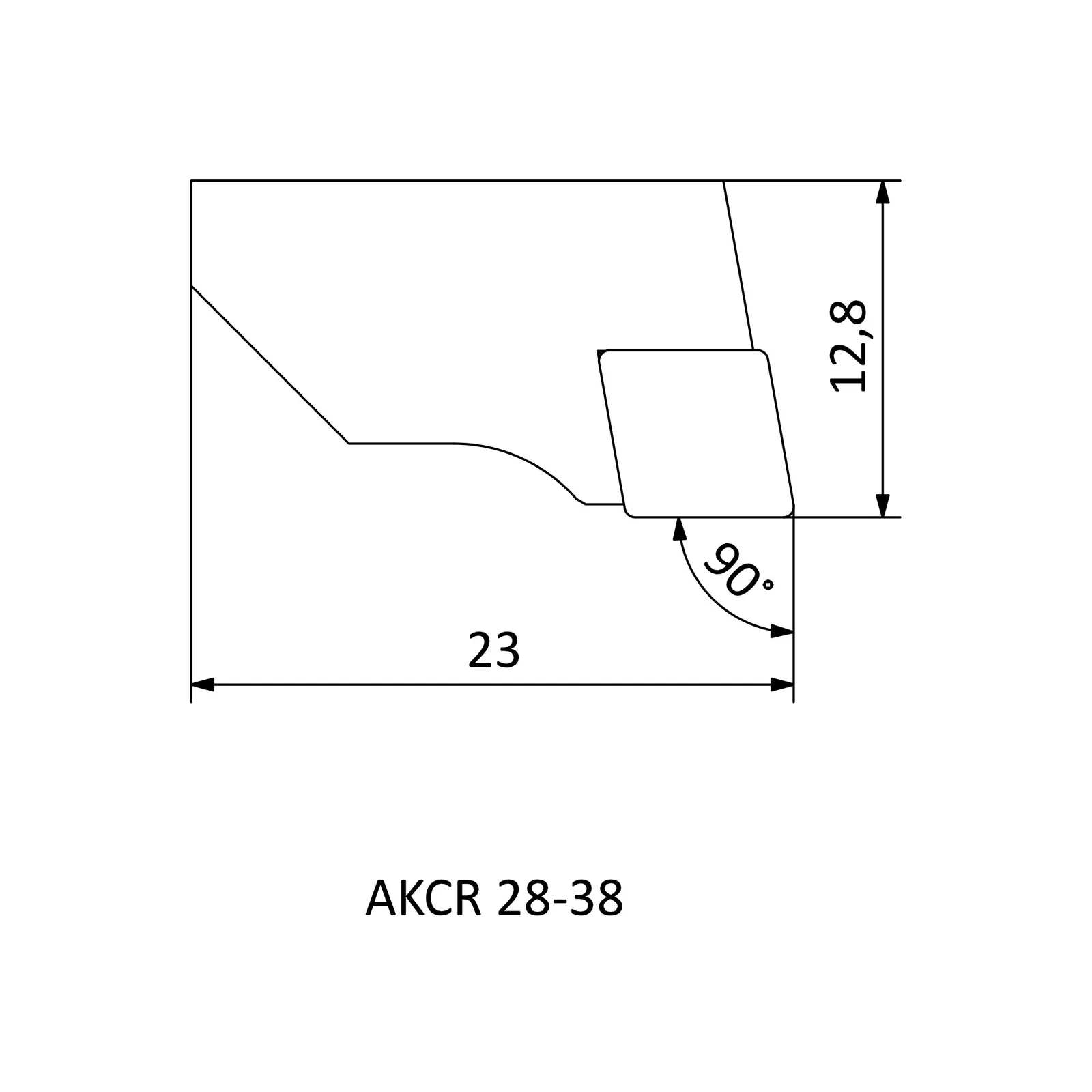

Specifications — AKCR 28-38
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| OAL | Overall length (mm) | 23 |
| WF | Functional width (mm) | 12.8 |
| DCN-DCX | Cutting diameter range, DCN-DCX (mm) | 28-38 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in AKCR
| Product code | Cutting direction (hand) | Overall length (mm) | Functional width (mm) | Cutting diameter range, DCN-DCX (mm) |
|---|---|---|---|---|
| AKCR 160-200 | R | 120 | 31.7 | 160-200 |
| AKCR 28-38 | R | 23 | 12.8 | 28-38 |
| AKCR 36-50 | R | 32 | 15.8 | 36-50 |
| AKCR 36-50-09 | R | 32 | 15.8 | 36-50 |
| AKCR 50-68 | R | 40 | 19.7 | 50-68 |
| AKCR 50-68-12 | R | 40 | 19.7 | 50-68 |
| AKCR 68-90 | R | 54 | 22.7 | 68-90 |
| AKCR 90-120 | R | 70 | 27.7 | 90-120 |
| AKCR 120-160 | R | 95 | 31.7 | 120-160 |
