Tool Holders / Rough Boring Bars
AKCR 50-68
AKCR series · see all 9 sizes
Insert compatibility
This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

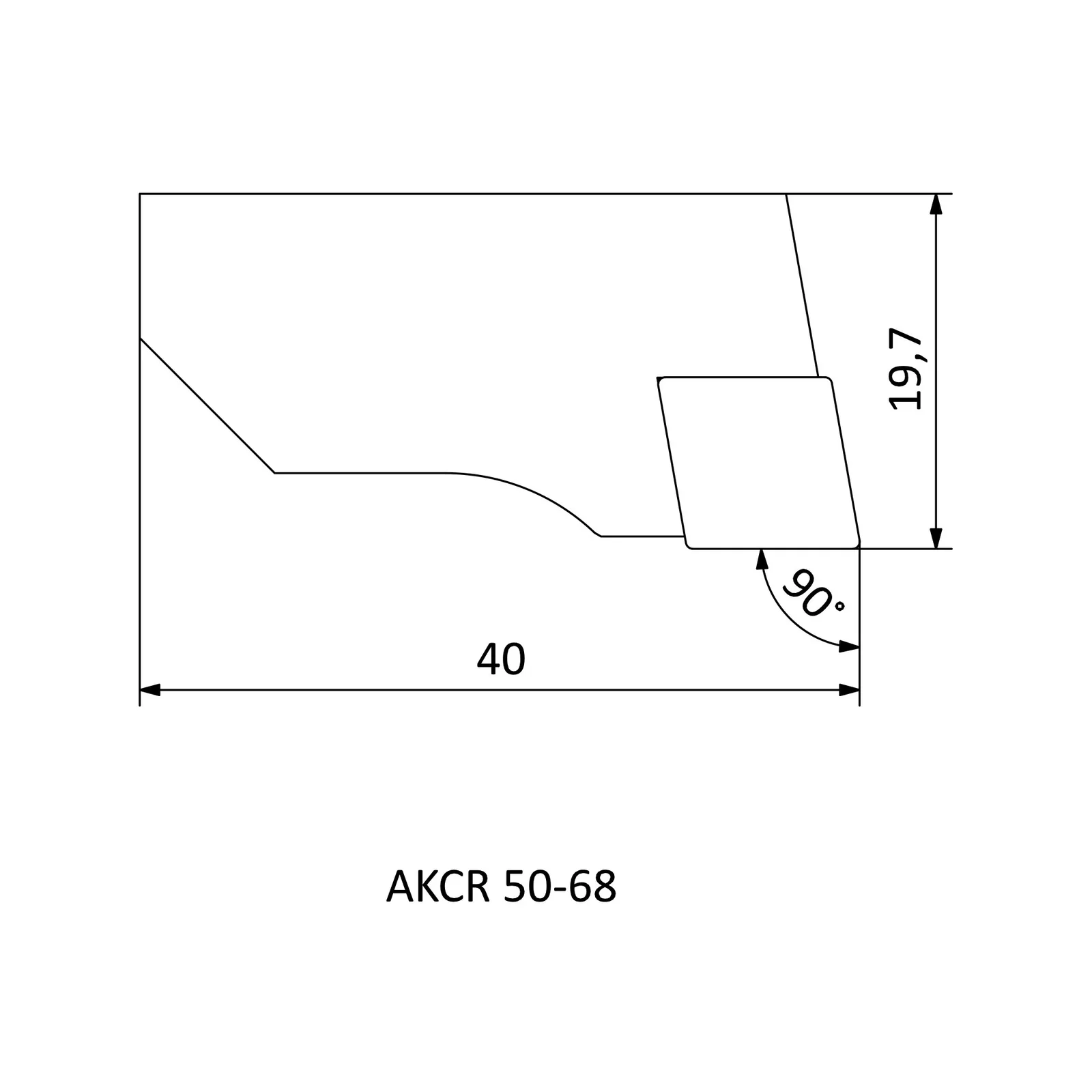

Specifications — AKCR 50-68
| Insert Code | Insert designation | CC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| OAL | Overall length (mm) | 40 |
| WF | Functional width (mm) | 19.7 |
| DCN-DCX | Cutting diameter range, DCN-DCX (mm) | 50-68 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
