Tool Holders / S-System Boring Bars
S08H SCFCR 06
SCFCR/L series · see all 22 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

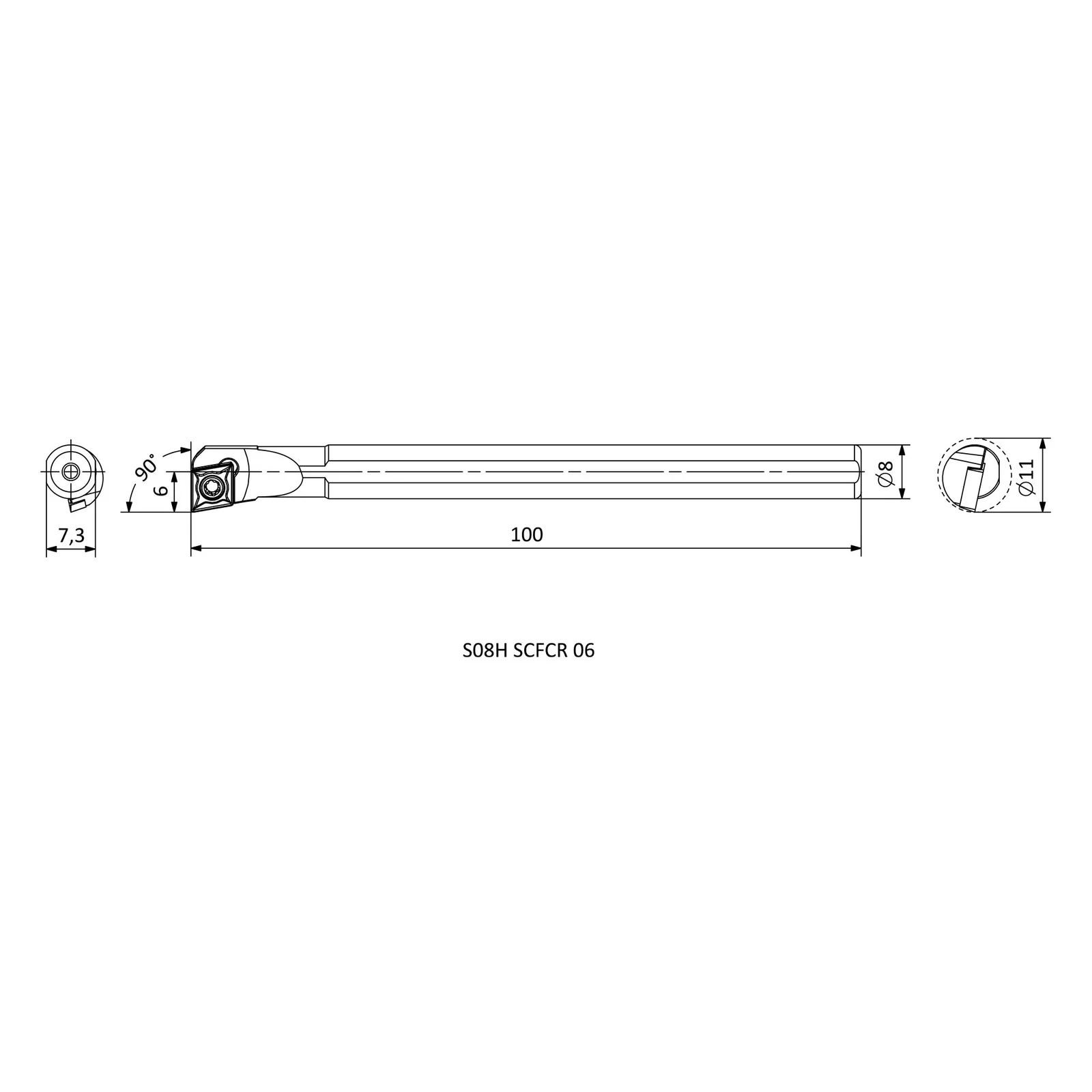

Specifications — S08H SCFCR 06
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 8 |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 6 |
| H | Shank height (mm) | 7.3 |
| D min | Minimum working diameter (mm) | ≥11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 22 sizes in SCFCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S08H SCFCL 06 | L | 8 | 100 | 6 |
| S08H SCFCR 06 | R | 8 | 100 | 6 |
| S10K SCFCL 06 | L | 10 | 125 | 7 |
| S10K SCFCR 06 | R | 10 | 125 | 7 |
| S12K SCFCL 06 | L | 12 | 125 | 9 |
| S12K SCFCR 06 | R | 12 | 125 | 9 |
| S12K SCFCL 09 | L | 12 | 125 | 9 |
| S12K SCFCR 09 | R | 12 | 125 | 9 |
| S16P SCFCL 09 | L | 16 | 170 | 11 |
| S16P SCFCR 09 | R | 16 | 170 | 11 |
| S20R SCFCL 09 | L | 20 | 200 | 13 |
| S20R SCFCR 09 | R | 20 | 200 | 13 |
| S25S SCFCL 09 | L | 25 | 250 | 17 |
| S25S SCFCR 09 | R | 25 | 250 | 17 |
| S25S SCFCL 12 | L | 25 | 250 | 17 |
| S25S SCFCR 12 | R | 25 | 250 | 17 |
| S32T SCFCL 12 | L | 32 | 300 | 22 |
| S32T SCFCR 12 | R | 32 | 300 | 22 |
| S40U SCFCL 12 | L | 40 | 350 | 27 |
| S40U SCFCR 12 | R | 40 | 350 | 27 |
| A08H SCFCL 06 | L | 8 | 100 | 6 |
| A08H SCFCR 06 | R | 8 | 100 | 6 |
