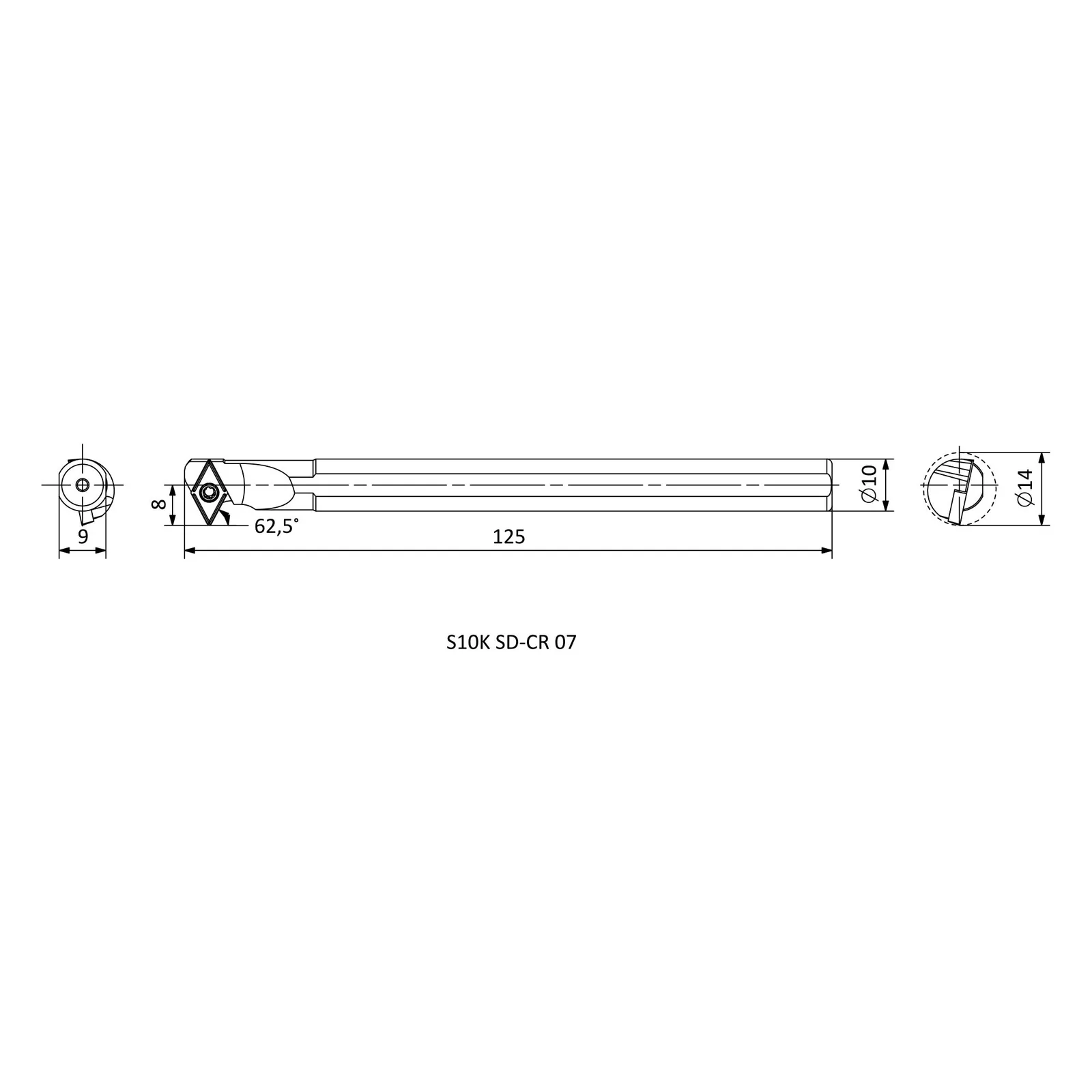

Drag to rotate — real 3D model from the CAD file
Tool Holders / S-System Boring Bars
S10K SD-CR 07
SD-CR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation DC.T 0702 (as listed in the catalogue data).
Specifications — S10K SD-CR 07
| Insert Code | Insert designation | DC.T 0702.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 10 |
| LPR | Protruding / projection length (mm) | 125 |
| WF | Functional width (mm) | 7 |
| H | Shank height (mm) | 9 |
| D min | Minimum working diameter (mm) | ≥14 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in SD-CR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Protruding / projection length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S10K SD-CL 07 | L | 10 | 125 | 7 |
| S10K SD-CR 07 | R | 10 | 125 | 7 |
| S12K SD-CL 07 | L | 12 | 125 | 9 |
| S12K SD-CR 07 | R | 12 | 125 | 9 |
| S16P SD-CR 07 | R | 16 | 170 | 11 |
| S16P SD-CL 07 | L | 16 | 170 | 11 |
| S20R SD-CL 07 | L | 20 | 200 | 13 |
| S20R SD-CR 07 | R | 20 | 200 | 13 |
| S16P SD-CL 11 | L | 16 | 170 | 14 |
| S16P SD-CR 11 | R | 16 | 170 | 14 |
| S20R SD-CL 11 | L | 20 | 200 | 15 |
| S20R SD-CR 11 | R | 20 | 200 | 15 |
| S25S SD-CL 11 | L | 25 | 250 | 18 |
| S25S SD-CR 11 | R | 25 | 250 | 18 |
| S32T SD-CL 11 | L | 32 | 300 | 22 |
| S32T SD-CR 11 | R | 32 | 300 | 22 |
| S40U SD-CL 11 | L | 40 | 350 | 27 |
| S40U SD-CR 11 | R | 40 | 350 | 27 |
