Tool Holders / S-System Boring Bars
S20R SDPCL 11
SDPCR/L series · see all 10 sizes
Insert compatibility
This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).

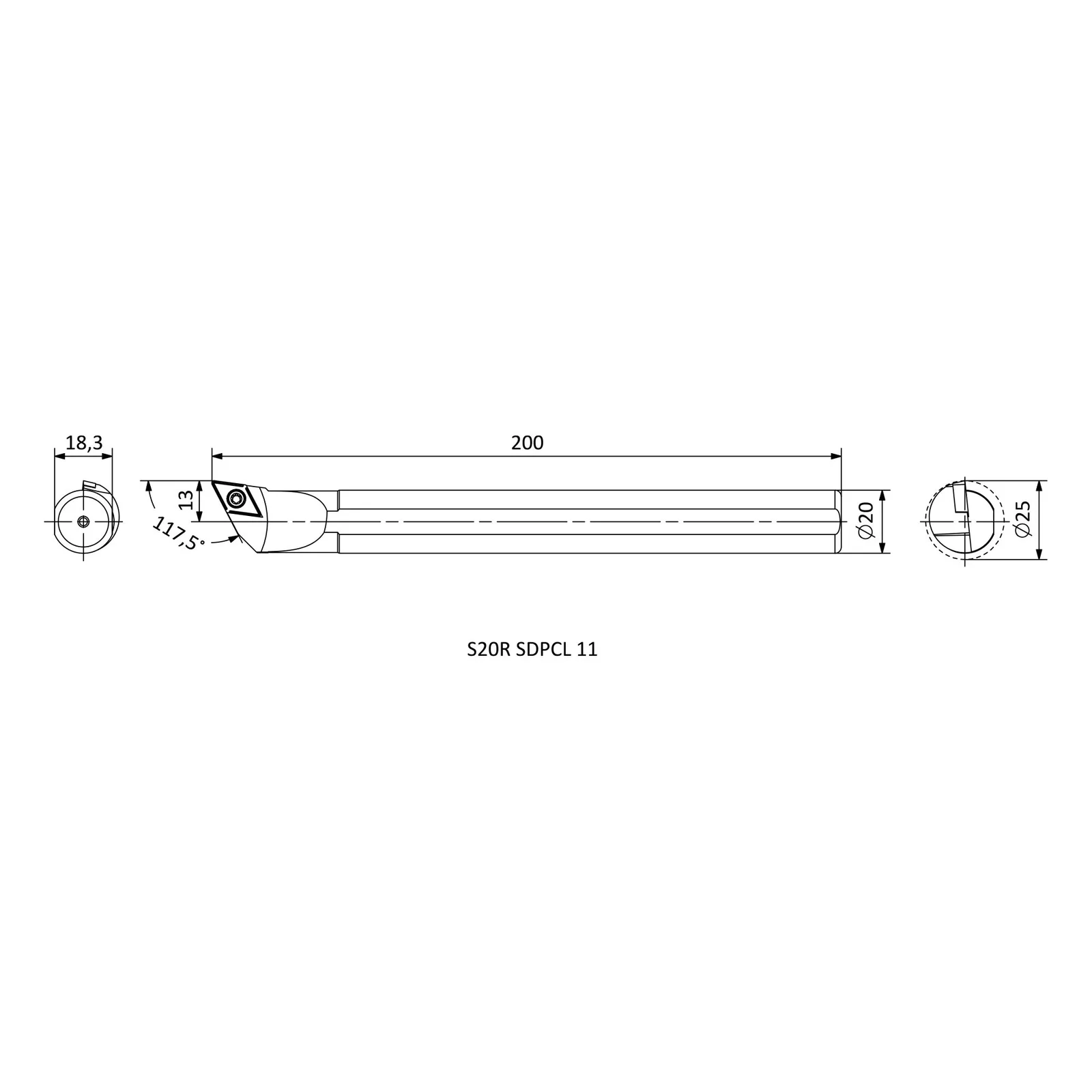

Specifications — S20R SDPCL 11
| Insert Code | Insert designation | DC.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 200 |
| WF | Functional width (mm) | 13 |
| H | Shank height (mm) | 18.3 |
| D min | Minimum working diameter (mm) | ≥25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in SDPCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S10K SDPCL 07 | L | 10 | 125 | 7 |
| S25S SDPCL 11 | L | 25 | 250 | 17 |
| S10K SDPCR 07 | R | 10 | 125 | 7 |
| S12K SDPCL 07 | L | 12 | 125 | 9 |
| S12K SDPCR 07 | R | 12 | 125 | 9 |
| S16P SDPCL 11 | L | 16 | 170 | 11 |
| S16P SDPCR 11 | R | 16 | 170 | 11 |
| S20R SDPCL 11 | L | 20 | 200 | 13 |
| S20R SDPCR 11 | R | 20 | 200 | 13 |
| S25S SDPCR 11 | R | 25 | 250 | 17 |
