Tool Holders / S-System Boring Bars

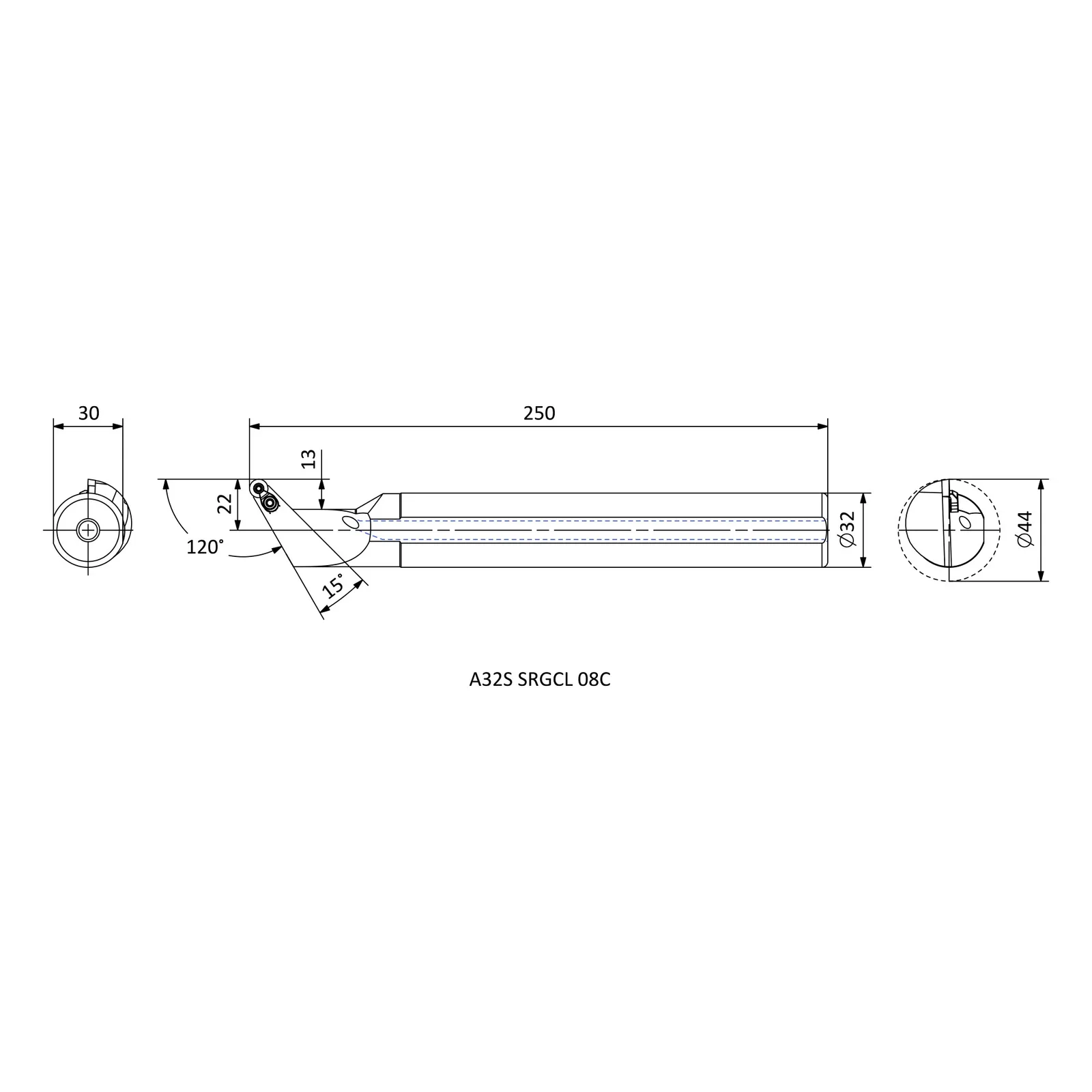

A32S SRGCL 08C
SRGCR/L series · see all 20 sizes
Insert compatibility
This size is built for the insert designation RC.T 0803 (as listed in the catalogue data).
Specifications — A32S SRGCL 08C
| Insert Code | Insert designation | RC.T 0803.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 250 |
| WF | Functional width (mm) | 22 |
| APMX | Depth of cut, maximum (mm) | 13 |
| H | Shank height (mm) | 30 |
| D min | Minimum working diameter (mm) | ≥44 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 20 sizes in SRGCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S16P SRGCL 08 | L | 16 | 170 | 11 |
| S16P SRGCR 08 | R | 16 | 170 | 11 |
| S20R SRGCL 08 | L | 20 | 200 | 13 |
| S20R SRGCR 08 | R | 20 | 200 | 13 |
| S25S SRGCL 08C | L | 25 | 250 | 17 |
| S25S SRGCR 08C | R | 25 | 250 | 17 |
| S32T SRGCL 08C | L | 32 | 300 | 22 |
| S32T SRGCR 08C | R | 32 | 300 | 22 |
| S40U SRGCL 08C | L | 40 | 350 | 27 |
| S40U SRGCR 08C | R | 40 | 350 | 27 |
| A16M SRGCL 08 | L | 16 | 150 | 11 |
| A16M SRGCR 08 | R | 16 | 150 | 11 |
| A20P SRGCL 08 | L | 20 | 170 | 13 |
| A20P SRGCR 08 | R | 20 | 170 | 13 |
| A25R SRGCL 08C | L | 25 | 200 | 17 |
| A25R SRGCR 08C | R | 25 | 200 | 17 |
| A32S SRGCL 08C | L | 32 | 250 | 22 |
| A32S SRGCR 08C | R | 32 | 250 | 22 |
| A40T SRGCL 08C | L | 40 | 300 | 27 |
| A40T SRGCR 08C | R | 40 | 300 | 27 |
