Tool Holders / S-System Boring Bars
S12K STFCR 11
STFCR/L series · see all 32 sizes
Insert compatibility
This size is built for the insert designation TC.T 1102 (as listed in the catalogue data).

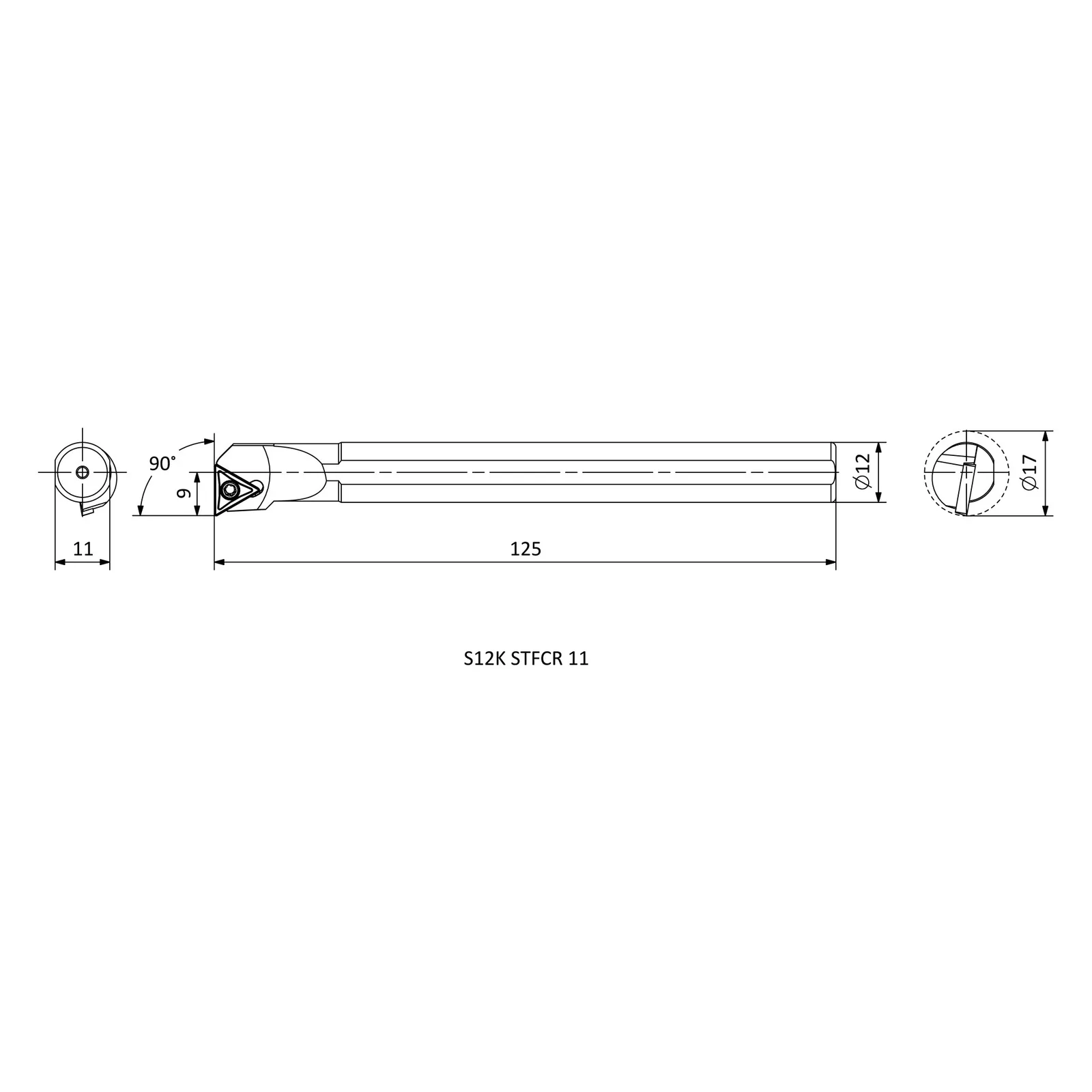

Specifications — S12K STFCR 11
| Insert Code | Insert designation | TC.T 1102.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 9 |
| H | Shank height (mm) | 11 |
| D min | Minimum working diameter (mm) | ≥17 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 32 sizes in STFCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| A20R STFCR 16 | R | 20 | 200 | 13 |
| A20R STFCL 16 | L | 20 | 200 | 14 |
| S12K STFCL 09 | L | 12 | 125 | 9 |
| S12K STFCR 09 | R | 12 | 125 | 9 |
| S20R STFCL 11 | L | 20 | 200 | 13 |
| S10K STFCL 09 | L | 10 | 125 | 7 |
| S0610F STFCL 06 | L | 10 | 80 | 4.5 |
| S0610F STFCR 06 | R | 10 | 80 | 4.5 |
| S08H STFCL 06 | L | 8 | 100 | 6 |
| S08H STFCR 06 | R | 8 | 100 | 6 |
| S10K STFCR 09 | R | 10 | 125 | 7 |
| S12K STFCL 11 | L | 12 | 125 | 9 |
| S12K STFCR 11 | R | 12 | 125 | 9 |
| S16P STFCL 11 | L | 16 | 170 | 11 |
| S16P STFCR 11 | R | 16 | 170 | 11 |
| S20R STFCR 11 | R | 20 | 200 | 13 |
| S16P STFCL 16 | L | 16 | 170 | 11 |
| S16P STFCR 16 | R | 16 | 170 | 11 |
| S20R STFCL 16 | L | 20 | 200 | 13 |
| S20R STFCR 16 | R | 20 | 200 | 13 |
| S25S STFCL 16 | L | 25 | 250 | 17 |
| S25S STFCR 16 | R | 25 | 250 | 17 |
| S32T STFCL 16 | L | 32 | 300 | 22 |
| S32T STFCR 16 | R | 32 | 300 | 22 |
| S40U STFCL 16 | L | 40 | 350 | 27 |
| S40U STFCR 16 | R | 40 | 350 | 27 |
| A10H STFCL 11 | L | 10 | 100 | 7 |
| A10H STFCR 11 | R | 10 | 100 | 7 |
| A12H STFCL 11 | L | 12 | 100 | 9 |
| A12H STFCR 11 | R | 12 | 100 | 9 |
| A16M STFCL 11 | L | 16 | 150 | 11 |
| A16M STFCR 11 | R | 16 | 150 | 11 |
