Tool Holders / S-System Boring Bars
S32T STFCL 16
STFCR/L series · see all 32 sizes
Insert compatibility
This size is built for the insert designation TC.T 16T3 (as listed in the catalogue data).

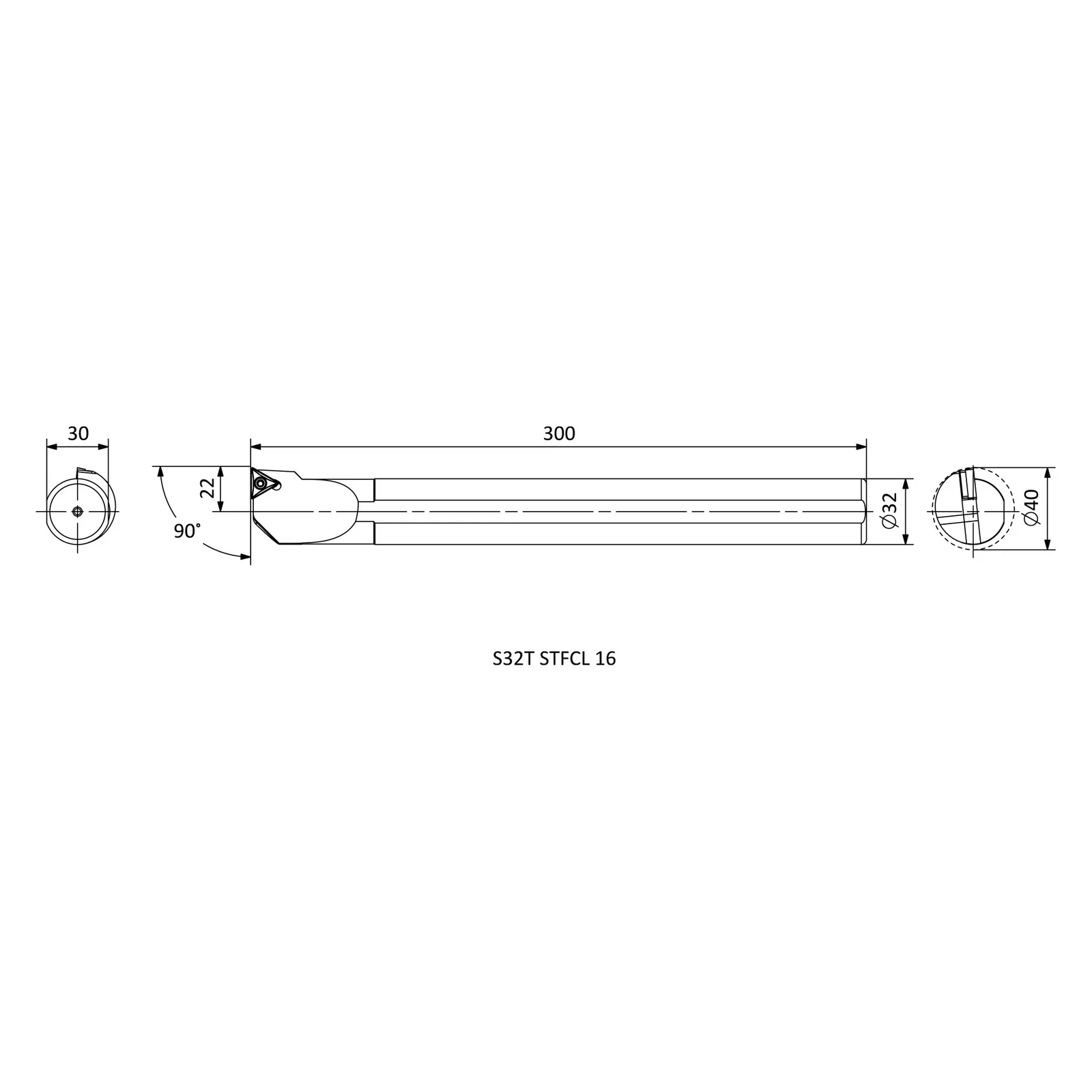

Specifications — S32T STFCL 16
| Insert Code | Insert designation | TC.T 16T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 300 |
| WF | Functional width (mm) | 22 |
| H | Shank height (mm) | 30 |
| D min | Minimum working diameter (mm) | ≥40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
