Tool Holders / S-System Boring Bars
S12M STUPR 1103
STUPR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TP.. 1103 (as listed in the catalogue data).

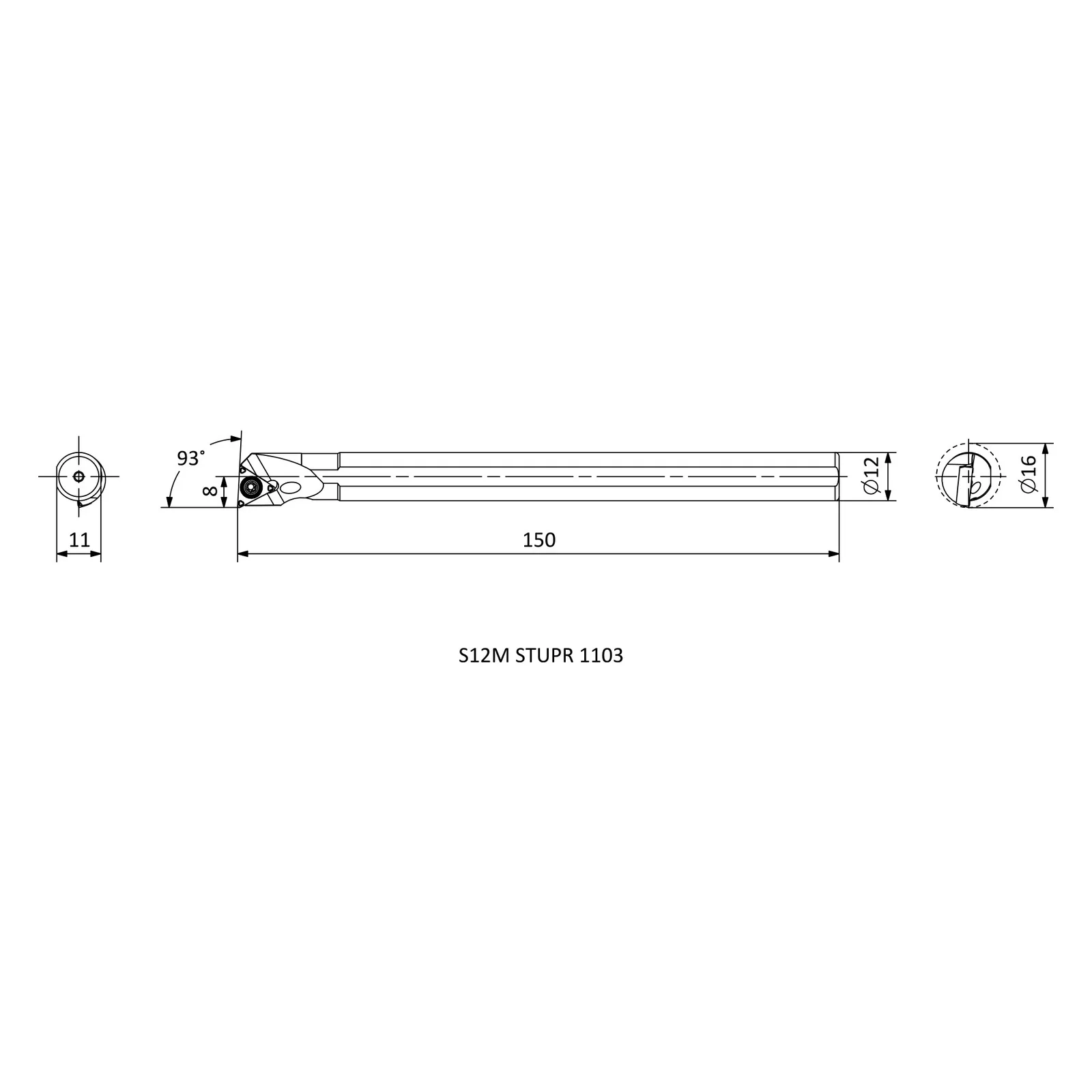

Specifications — S12M STUPR 1103
| Insert Code | Insert designation | TP.. 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 8 |
| H | Shank height (mm) | 11 |
| D min | Minimum working diameter (mm) | ≥16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in STUPR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S12K STUPR 1103 | R | 12 | 125 | 9 |
| S12K STUPL 1103 | L | 12 | 125 | 9 |
| S08H STUPL 0802 | L | 8 | 100 | 5 |
| S08H STUPR 0802 | R | 8 | 100 | 5 |
| S10K STUPL 1103 | L | 10 | 125 | 6 |
| S10K STUPR 1103 | R | 10 | 125 | 6 |
| S12M STUPL 1103 | L | 12 | 150 | 8 |
| S12M STUPR 1103 | R | 12 | 150 | 8 |
| S16P STUPL 1103 | L | 16 | 170 | 10 |
| S16P STUPR 1103 | R | 16 | 170 | 10 |
| S16R STUPL 1103 | L | 16 | 200 | 10 |
| S16R STUPR 1103 | R | 16 | 200 | 10 |
| A20R STUPL 1103 | L | 20 | 200 | 13 |
| A20R STUPR 1103 | R | 20 | 200 | 13 |
