Tool Holders / S-System Boring Bars
A20Q SVQBL 11
SVQBR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation VB.T 1103 (as listed in the catalogue data).

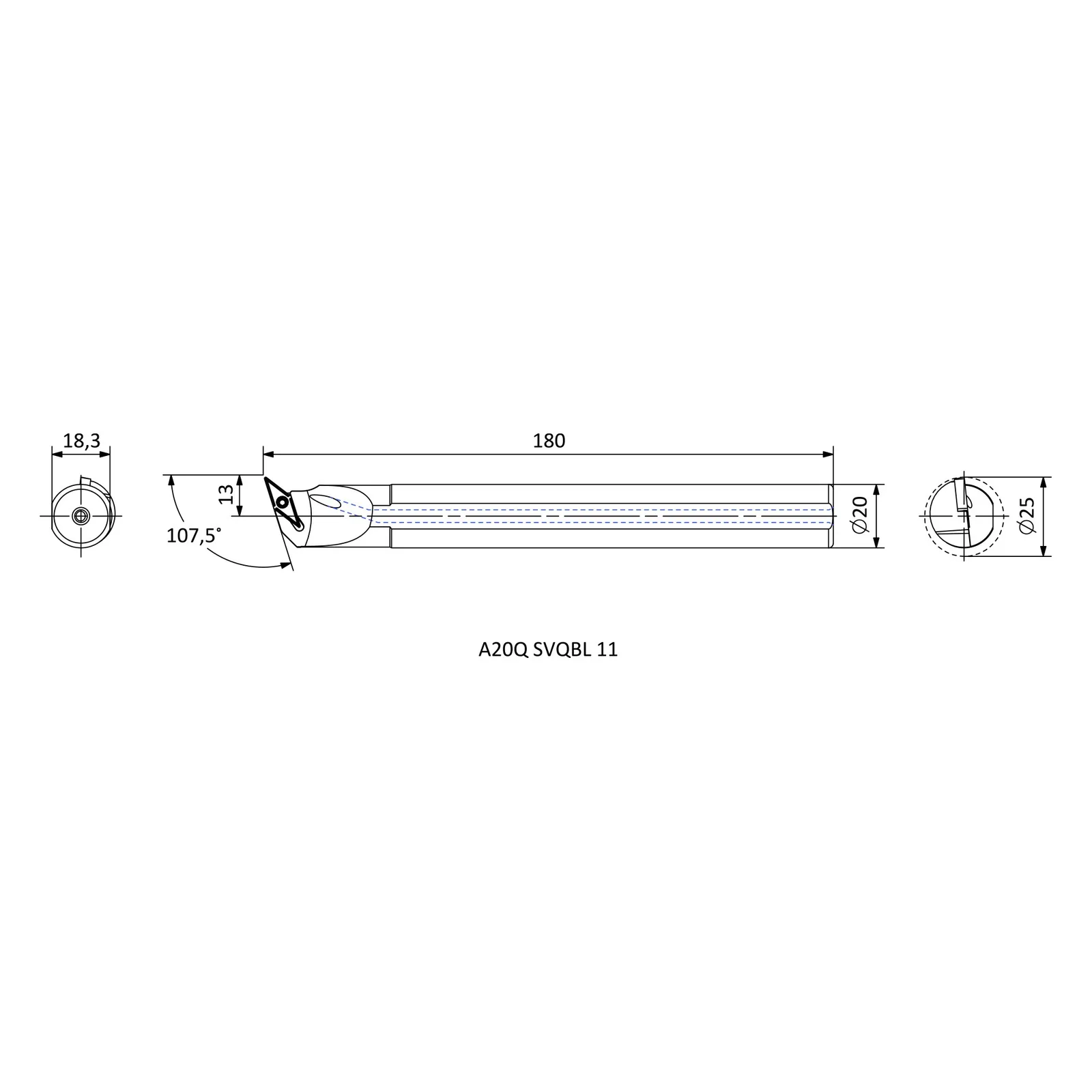

Specifications — A20Q SVQBL 11
| Insert Code | Insert designation | VB.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 180 |
| WF | Functional width (mm) | 13 |
| H | Shank height (mm) | 18.5 |
| D min | Minimum working diameter (mm) | ≥25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
