Tool Holders / S-System Boring Bars
S40U SVQBR 16
SVQBR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation VB.T 1604 (as listed in the catalogue data).

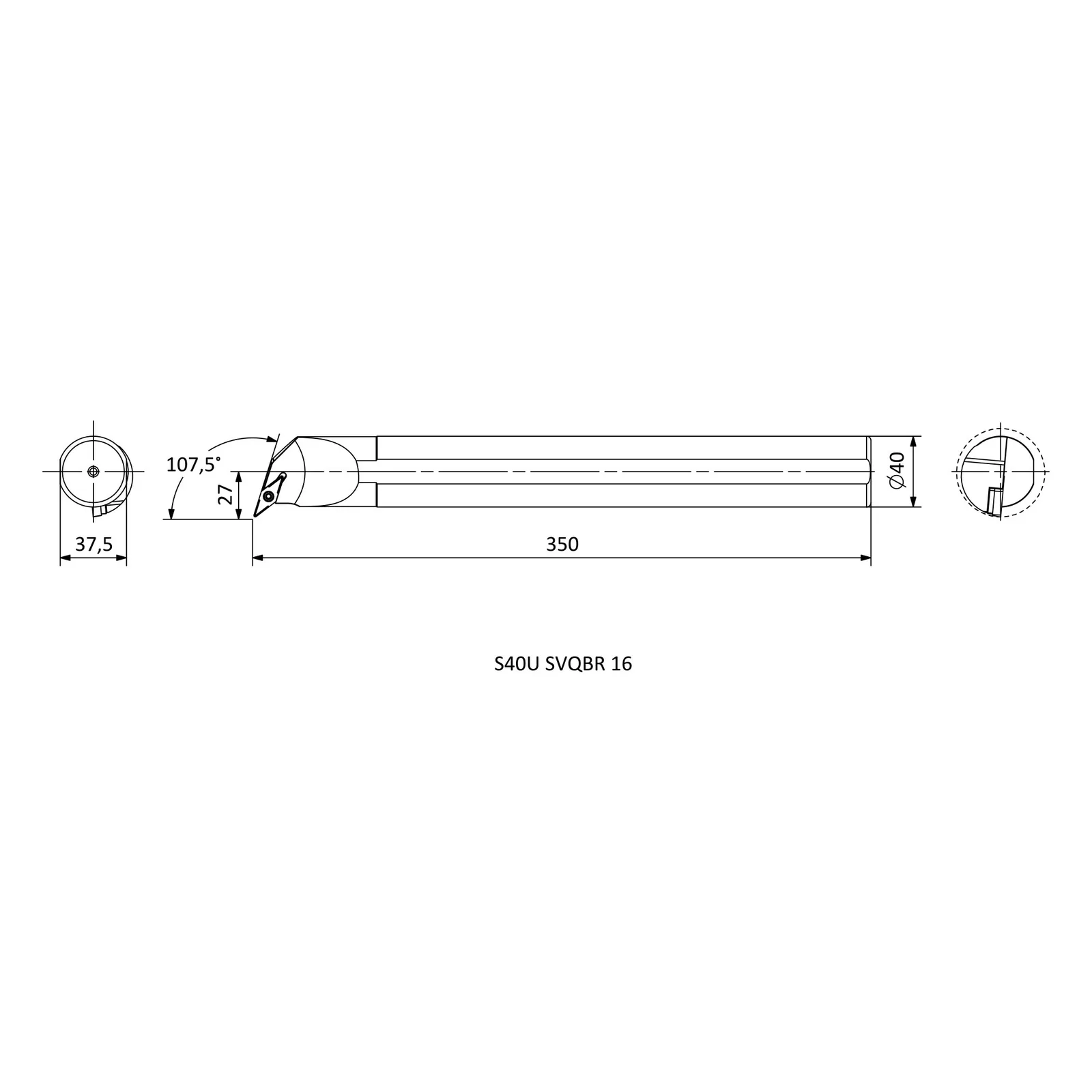

Specifications — S40U SVQBR 16
| Insert Code | Insert designation | VB.T 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in SVQBR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S16P SVQBL 11 | L | 16 | 170 | 11 |
| S16P SVQBR 11 | R | 16 | 170 | 11 |
| S20R SVQBL 11 | L | 20 | 200 | 13 |
| S20R SVQBR 11 | R | 20 | 200 | 13 |
| A25S SVQBL 16 | L | 25 | 250 | 17 |
| A25S SVQBR 16 | R | 25 | 250 | 17 |
| S32T SVQBL 16 | L | 32 | 300 | 22 |
| S32T SVQBR 16 | R | 32 | 300 | 22 |
| S40U SVQBL 16 | L | 40 | 350 | 27 |
| S40U SVQBR 16 | R | 40 | 350 | 27 |
| A20Q SVQBL 11 | L | 20 | 180 | 13 |
| A20Q SVQBR 11 | R | 20 | 180 | 13 |
| A20Q SVQBL 16 | L | 20 | 180 | 20 |
| A20Q SVQBR 16 | R | 20 | 180 | 20 |
| S25S SVQBL 16 | L | 25 | 250 | 17 |
| S25S SVQBR 16 | R | 25 | 250 | 17 |
| A32S SVQBL 16 | L | 32 | 250 | 22 |
| A32S SVQBR 16 | R | 32 | 250 | 22 |
