Tool Holders / S-System Boring Bars
S40U SVQCL 16
SVQCR/L series · see all 20 sizes
Insert compatibility
This size is built for the insert designation VC.T 1604 (as listed in the catalogue data).

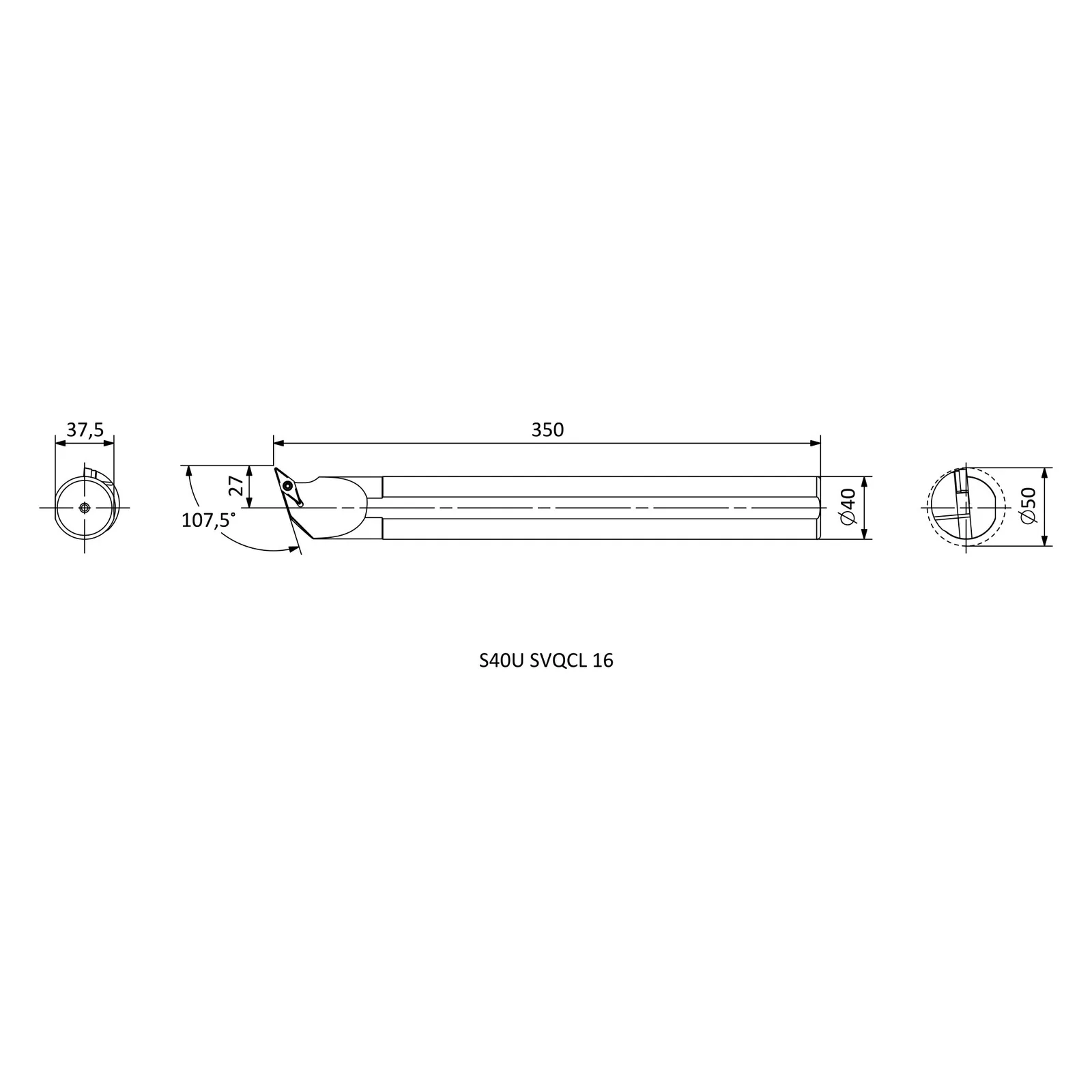

Specifications — S40U SVQCL 16
| Insert Code | Insert designation | VC.T 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 20 sizes in SVQCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S16P SVQCL 11 | L | 16 | 170 | 11 |
| S16P SVQCR 11 | R | 16 | 170 | 11 |
| S20R SVQCL 11 | L | 20 | 200 | 13 |
| S20R SVQCR 11 | R | 20 | 200 | 13 |
| S25S SVQCL 16 | L | 25 | 250 | 17 |
| S25S SVQCR 16 | R | 25 | 250 | 17 |
| S32T SVQCL 16 | L | 32 | 300 | 22 |
| S32T SVQCR 16 | R | 32 | 300 | 22 |
| S40U SVQCL 16 | L | 40 | 350 | 27 |
| S40U SVQCR 16 | R | 40 | 350 | 27 |
| A16M SVQCL 11 | L | 16 | 150 | 11 |
| A16M SVQCR 11 | R | 16 | 150 | 11 |
| A20P SVQCL 11 | L | 20 | 170 | 13 |
| A20P SVQCR 11 | R | 20 | 170 | 13 |
| A25R SVQCL 16 | L | 25 | 200 | 17 |
| A25R SVQCR 16 | R | 25 | 200 | 17 |
| A32S SVQCL 16 | L | 32 | 250 | 22 |
| A32S SVQCR 16 | R | 32 | 250 | 22 |
| A40T SVQCL 16 | L | 40 | 300 | 27 |
| A40T SVQCR 16 | R | 40 | 300 | 27 |
