Tool Holders / S-System Boring Bars
A20P SVUCR 11
SVUCR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation VC.T 1103 (as listed in the catalogue data).

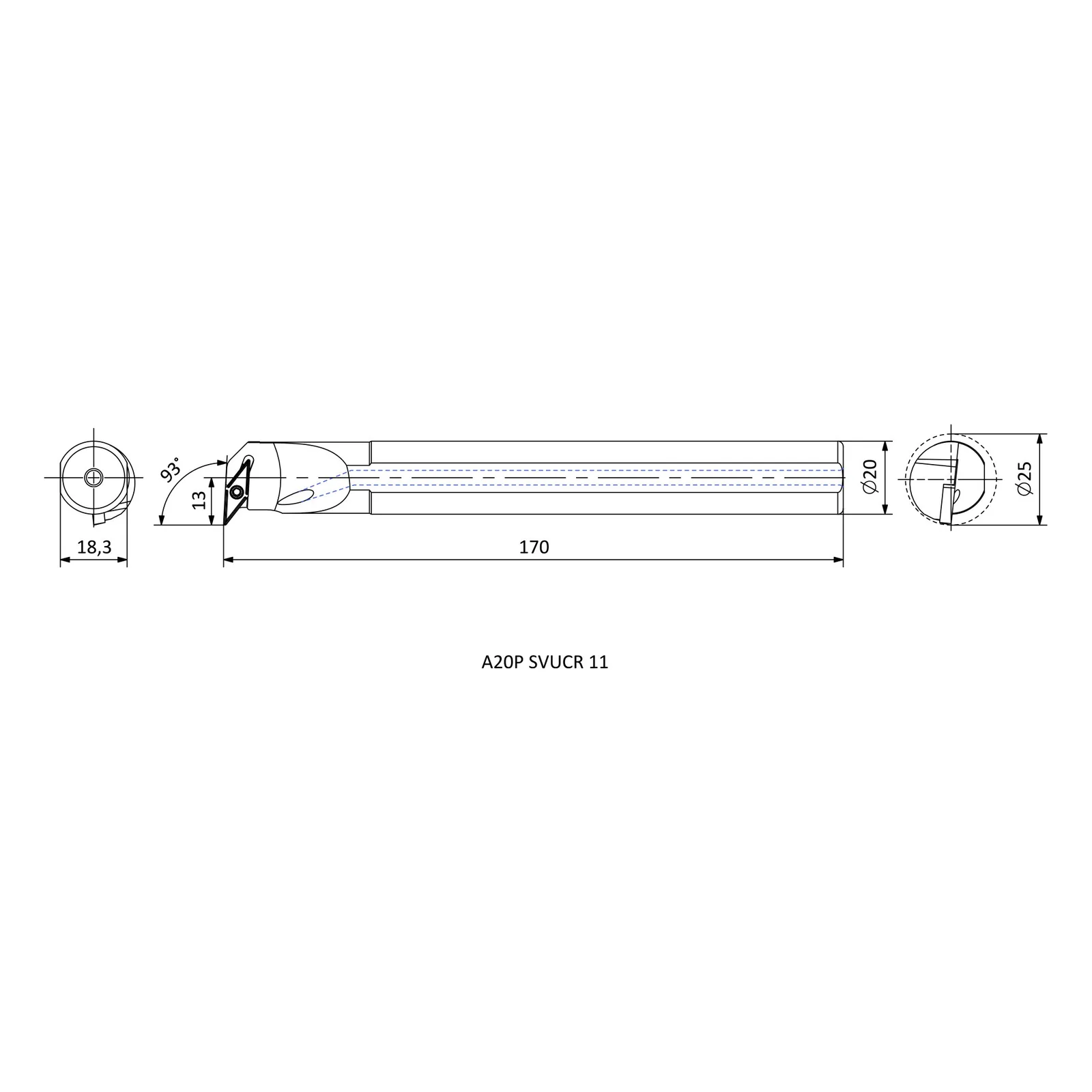

Specifications — A20P SVUCR 11
| Insert Code | Insert designation | VC.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 13 |
| H | Shank height (mm) | 18.3 |
| D min | Minimum working diameter (mm) | ≥25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in SVUCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S16P SVUCL 11 | L | 16 | 170 | 12.5 |
