Tool Holders / S-System Boring Bars

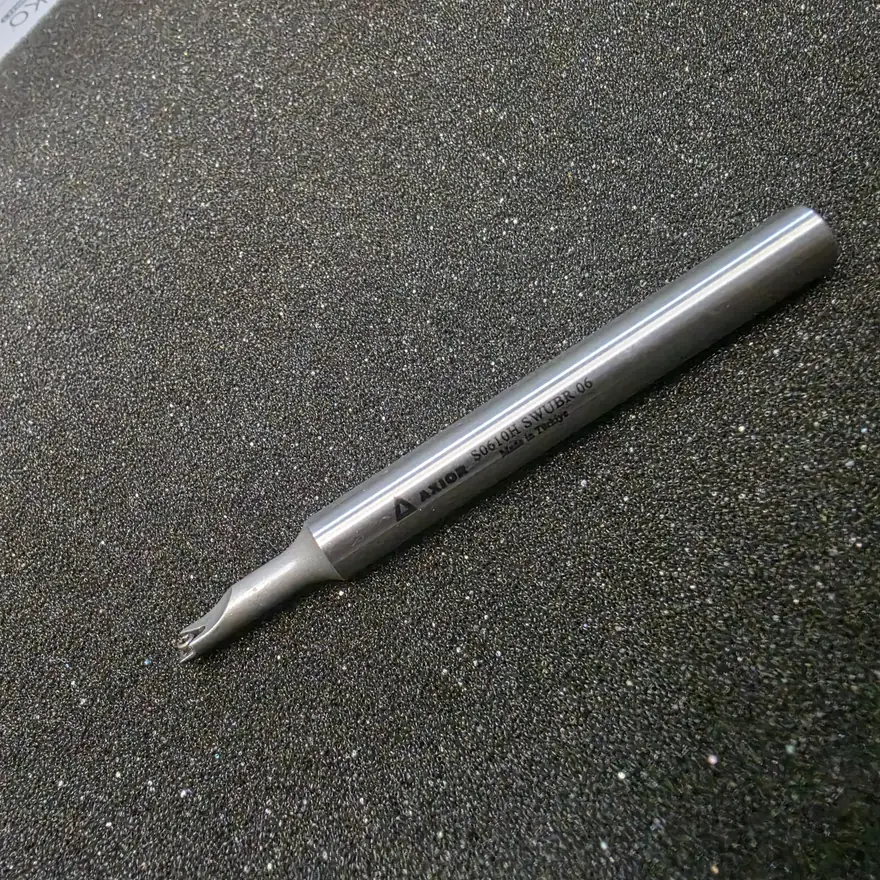

SWUBR/L
6 sizes available · 10 specification fields · standard: ISO
SWUBR/L is a boring bar for internal turning that takes WBGT-style inserts. It is listed here in 6 sizes, 7.3 mm shank height, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: boring, internal turning and back-facing.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- WBGT 060102-L
Specifications
| Product code | Insert designation | Cutting direction (hand) | Connection diameter (mm) | Usable length (mm) | Bore diameter (mm) | Functional length (mm) | Functional width (mm) | Shank height (mm) | Minimum working diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S0610H SWUBL 06 | WBGT 060102-L | L | 10 | 18 | 5 | 100 | 3 | 7.3 | ≥6 |
| S0610H SWUBR 06 | WBGT 060102-L | R | 10 | 18 | 5 | 100 | 3 | 7.3 | ≥6 |
| S08H SWUBL 06-5.5 | WBGT 060102-L | L | 8 | 18 | 5 | 100 | 2.75 | 7.3 | ≥5.7 |
| S08H SWUBR 06-5.5 | WBGT 060102-L | R | 8 | 18 | 5 | 100 | 2.75 | 7.3 | ≥5.7 |
| S08H SWUBL 06-7 | WBGT 060102-L | L | 8 | 18 | 6.5 | 100 | 3.5 | 7.3 | ≥7 |
| S08H SWUBR 06-7 | WBGT 060102-L | R | 8 | 18 | 6.5 | 100 | 3.5 | 7.3 | ≥7 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- DCON — Connection diameter (mm)
- LU — Usable length (mm)
- BD — Bore diameter (mm)
- LF — Functional length (mm)
- WF — Functional width (mm)
- H — Shank height (mm)
- D min — Minimum working diameter (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
