Tool Holders / S-System Boring Bars
S08H SWUBL 06-7
SWUBR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation WBGT 060102 (as listed in the catalogue data).

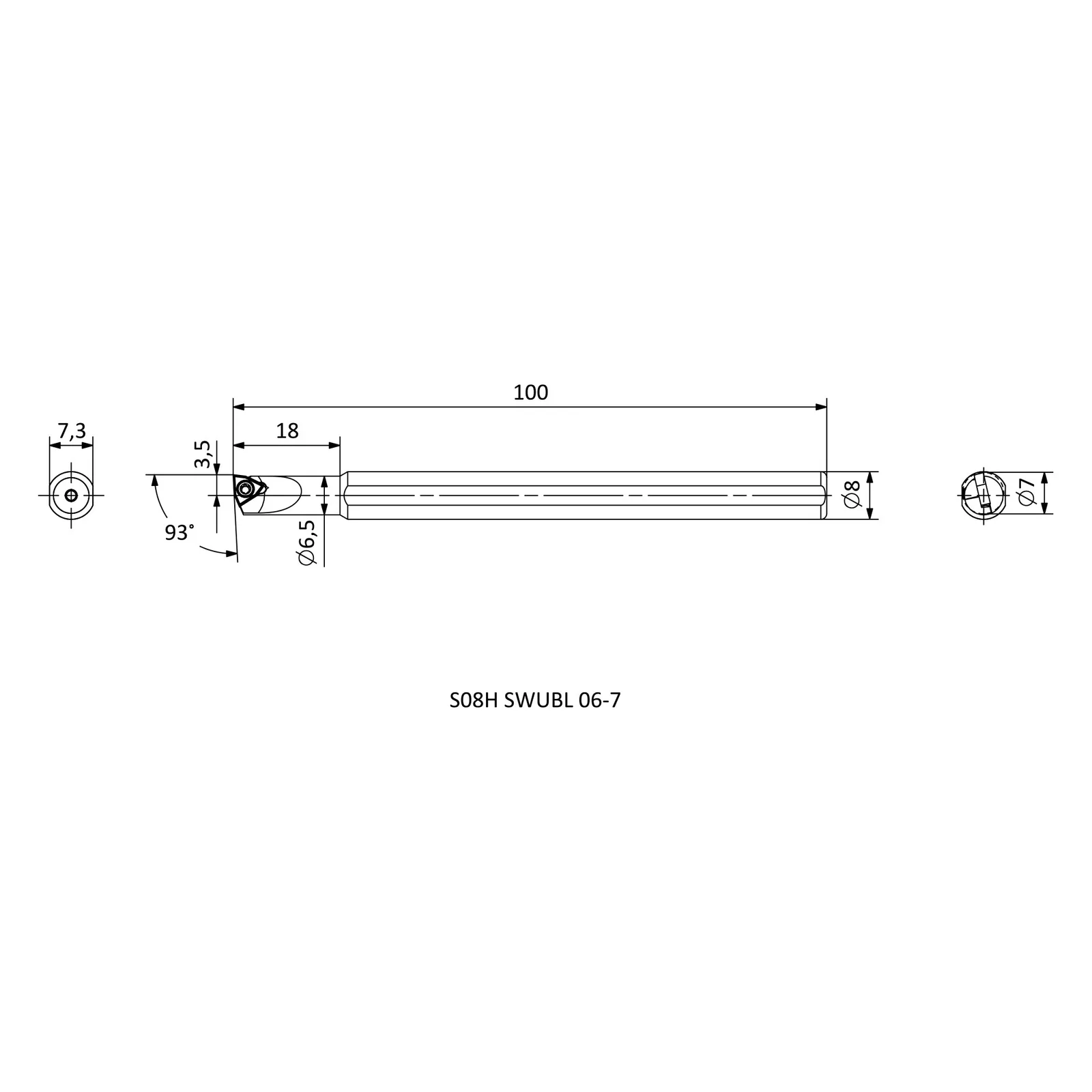

Specifications — S08H SWUBL 06-7
| Insert Code | Insert designation | WBGT 060102-L |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 8 |
| LU | Usable length (mm) | 18 |
| BD | Bore diameter (mm) | 6.5 |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 3.5 |
| H | Shank height (mm) | 7.3 |
| D min | Minimum working diameter (mm) | ≥7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SWUBR/L
