Tool Holders / S-System Cartridge
SCFCR/L
10 sizes available · 9 specification fields · standard: ISO

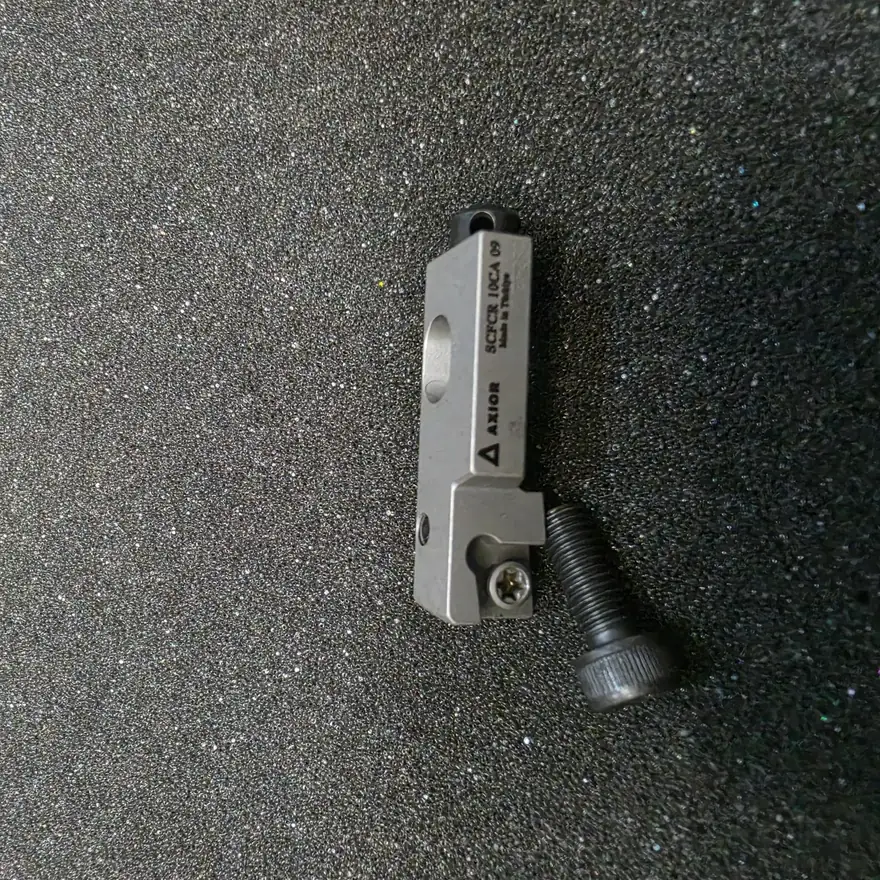

SCFCR/L is an insert cartridge that takes positive 80° rhombic (C-type) inserts. It is listed here in 10 sizes, 8.5–21 × 6–20 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: seating replaceable inserts in boring heads and special tools.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- CC.T 0602..
- CC.T 09T3..
- CC.T 120408
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) | Shank height (mm) | Functional height (mm) | Minimum working diameter (mm) |
|---|---|---|---|---|---|---|---|---|
| SCFCL 06CA 06 | CC.T 0602.. | L | 25 | 8 | 6 | 8.5 | 6 | ≥20 |
| SCFCR 06CA 06 | CC.T 0602.. | R | 25 | 8 | 6 | 8.5 | 6 | ≥20 |
| SCFCL 08CA 06 | CC.T 0602.. | L | 32 | 10 | 8 | 11 | 8 | ≥25 |
| SCFCR 08CA 06 | CC.T 0602.. | R | 32 | 10 | 8 | 11 | 8 | ≥25 |
| SCFCL 10CA 09 | CC.T 09T3.. | L | 50 | 14 | 11 | 15 | 10 | ≥40 |
| SCFCR 10CA 09 | CC.T 09T3.. | R | 50 | 14 | 11 | 15 | 10 | ≥40 |
| SCFCL 12CA 12 | CC.T 120408 | L | 55 | 20 | 15 | 20 | 12 | ≥50 |
| SCFCR 12CA 12 | CC.T 120408 | R | 55 | 20 | 15 | 20 | 12 | ≥50 |
| SCFCL 16CA 12 | CC.T 120408 | L | 63 | 25 | 20 | 21 | 16 | ≥60 |
| SCFCR 16CA 12 | CC.T 120408 | R | 63 | 25 | 20 | 21 | 16 | ≥60 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- B — Shank width (mm)
- H — Shank height (mm)
- HF — Functional height (mm)
- D min — Minimum working diameter (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
