Tool Holders / S-System Cartridge
SCFCR 10CA 09
SCFCR/L series · see all 10 sizes
Insert compatibility
This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

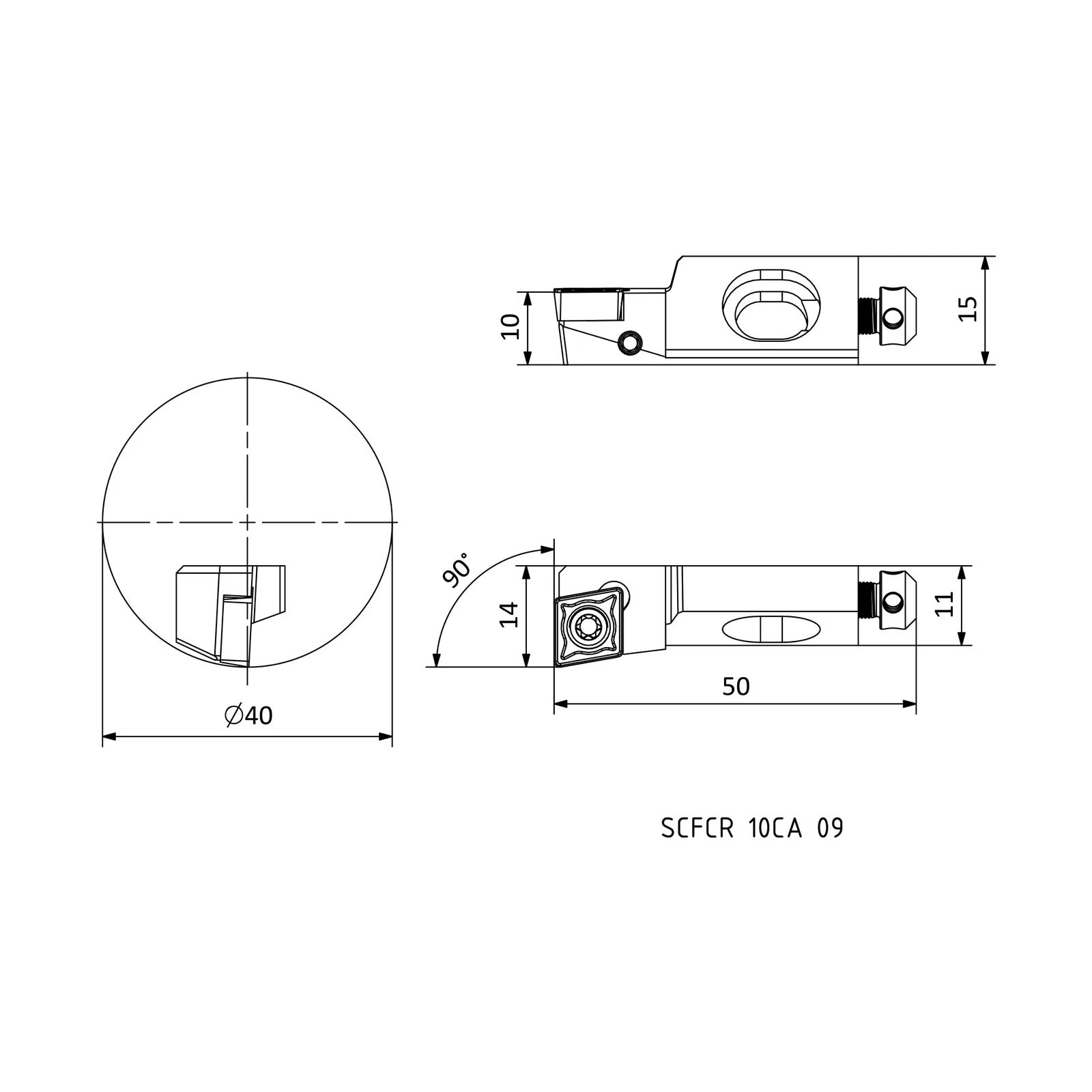

Specifications — SCFCR 10CA 09
| Insert Code | Insert designation | CC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 50 |
| WF | Functional width (mm) | 14 |
| B | Shank width (mm) | 11 |
| H | Shank height (mm) | 15 |
| HF | Functional height (mm) | 10 |
| D min | Minimum working diameter (mm) | ≥40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in SCFCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) |
|---|---|---|---|---|
| SCFCL 06CA 06 | L | 25 | 8 | 6 |
| SCFCR 06CA 06 | R | 25 | 8 | 6 |
| SCFCL 08CA 06 | L | 32 | 10 | 8 |
| SCFCR 08CA 06 | R | 32 | 10 | 8 |
| SCFCL 10CA 09 | L | 50 | 14 | 11 |
| SCFCR 10CA 09 | R | 50 | 14 | 11 |
| SCFCL 12CA 12 | L | 55 | 20 | 15 |
| SCFCR 12CA 12 | R | 55 | 20 | 15 |
| SCFCL 16CA 12 | L | 63 | 25 | 20 |
| SCFCR 16CA 12 | R | 63 | 25 | 20 |
