Tool Holders / S-System Cartridge
STSCR 10CA 11
STSCR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation TC.T 1102 (as listed in the catalogue data).

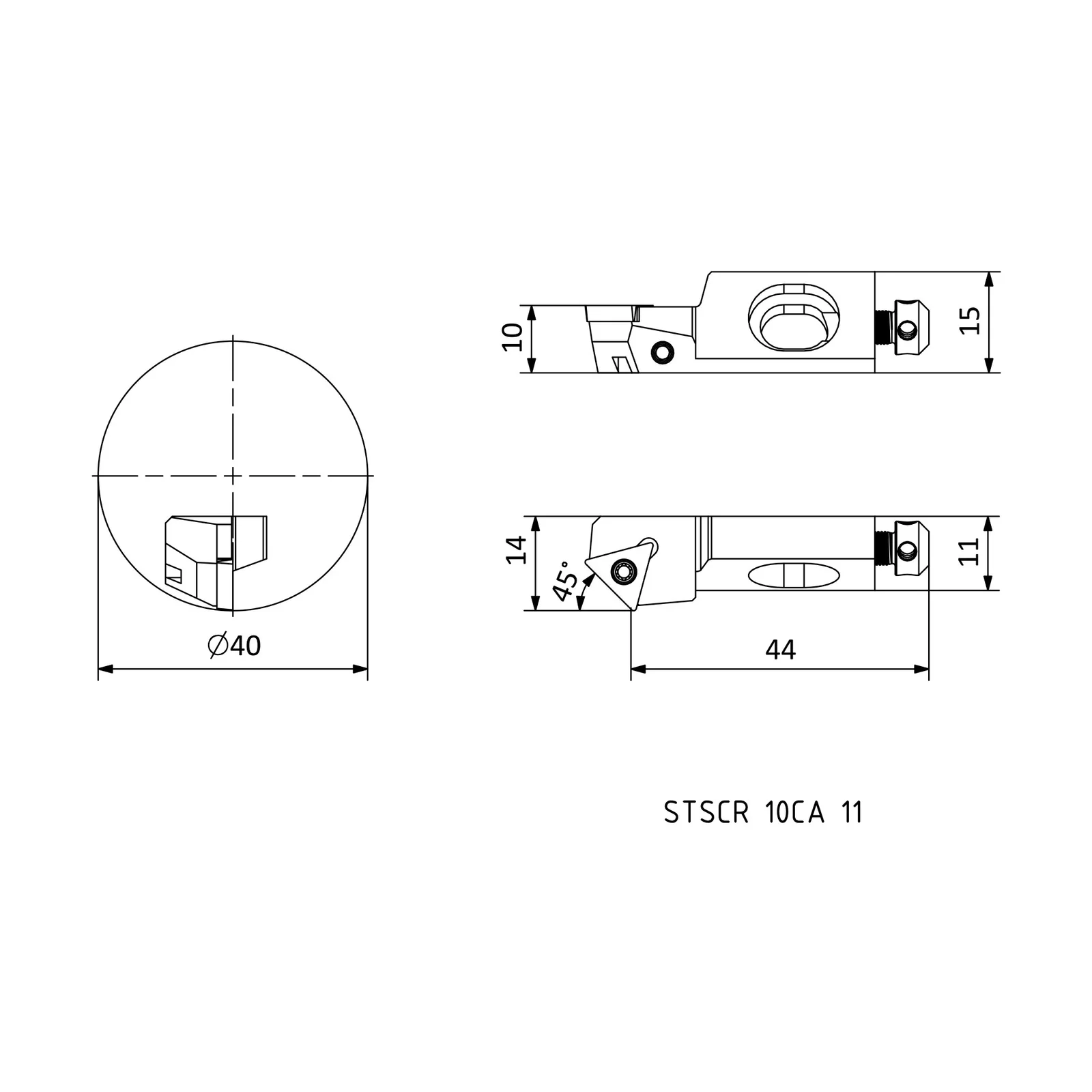

Specifications — STSCR 10CA 11
| Insert Code | Insert designation | TC.T 1102.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 44 |
| WF | Functional width (mm) | 14 |
| B | Shank width (mm) | 11 |
| H | Shank height (mm) | 15 |
| HF | Functional height (mm) | 10 |
| D min | Minimum working diameter (mm) | ≥40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in STSCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) |
|---|---|---|---|---|
| STSCL 08CA 09 | L | 28 | 10 | 8 |
| STSCR 08CA 09 | R | 28 | 10 | 8 |
| STSCL 10CA 11 | L | 44 | 14 | 11 |
| STSCR 10CA 11 | R | 44 | 14 | 11 |
| STSCL 12CA 16 | L | 47 | 20 | 15 |
| STSCR 12CA 16 | R | 47 | 20 | 15 |
