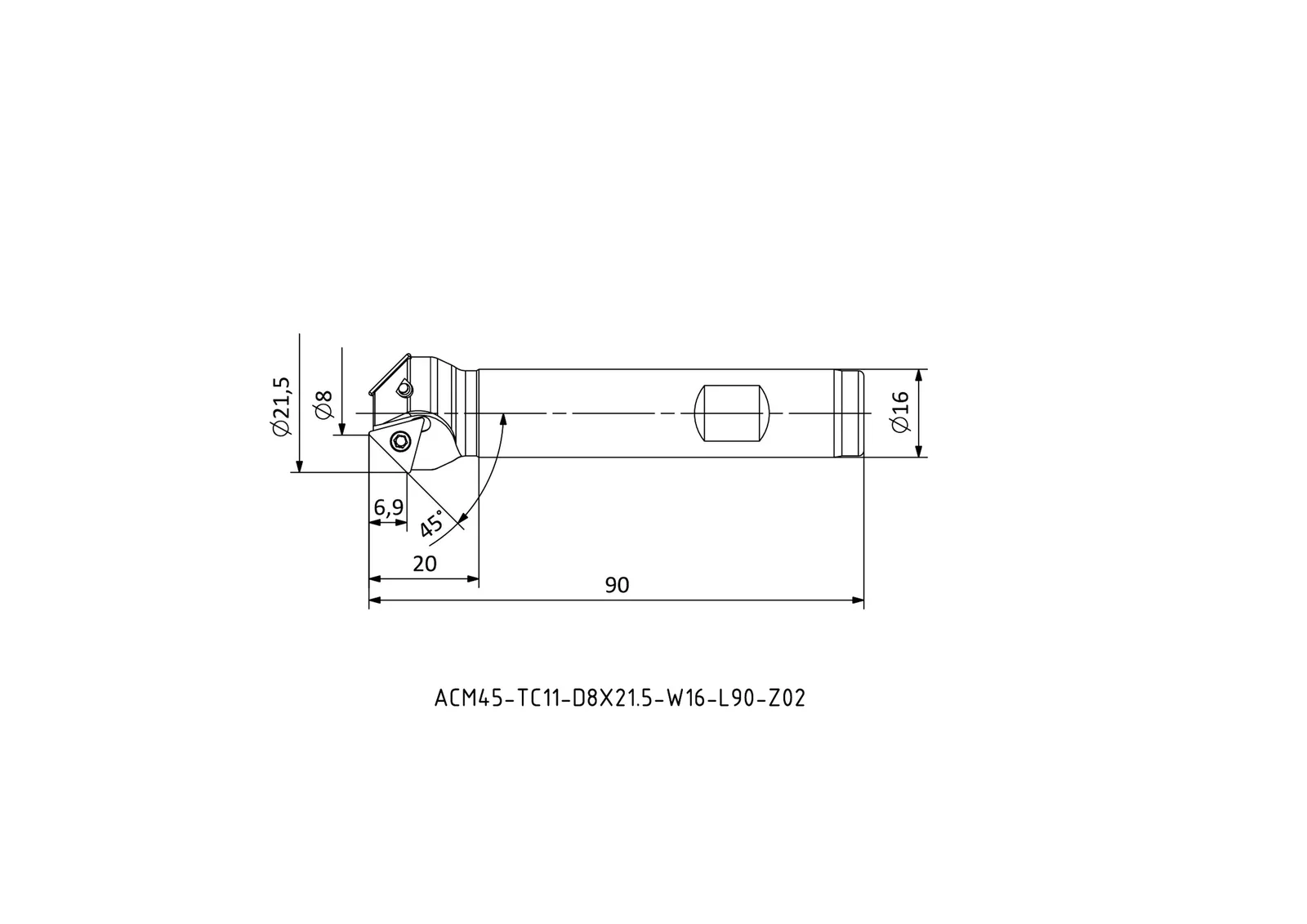

ACM45-TC11-D8X21.5-W16-L90-Z02 — dimensioned drawing
Tool Holders / S-System Chamfering End Mills

ACM45-TC11-D8X21.5-W16-L90-Z02

ACM series · see all 42 sizes

Insert compatibility

This size is built for the insert designation TC.T 110204 (as listed in the catalogue data).

Ask about this size

Specifications — ACM45-TC11-D8X21.5-W16-L90-Z02

Insert Code Insert designation TC.T 110204
Product Direction Cutting direction (hand) R
DC Cutting diameter (mm) 8
DCON Connection diameter (mm) 16
LF Functional length (mm) 90
KAPR Tool cutting edge angle (deg) 45
DCX Maximum diameter (mm) 21.5
LH Head length (mm) 20
ZEFP Effective cutting edges 2
APMX Depth of cut, maximum (mm) 6.9

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
