Tool Holders / S-System End Mills
AEM90-3P0603-D20-W20-L150-Z03-H
AEM90-3P series · see all 15 sizes
Insert compatibility
This size is built for the insert designation 3PKT (as listed in the catalogue data).

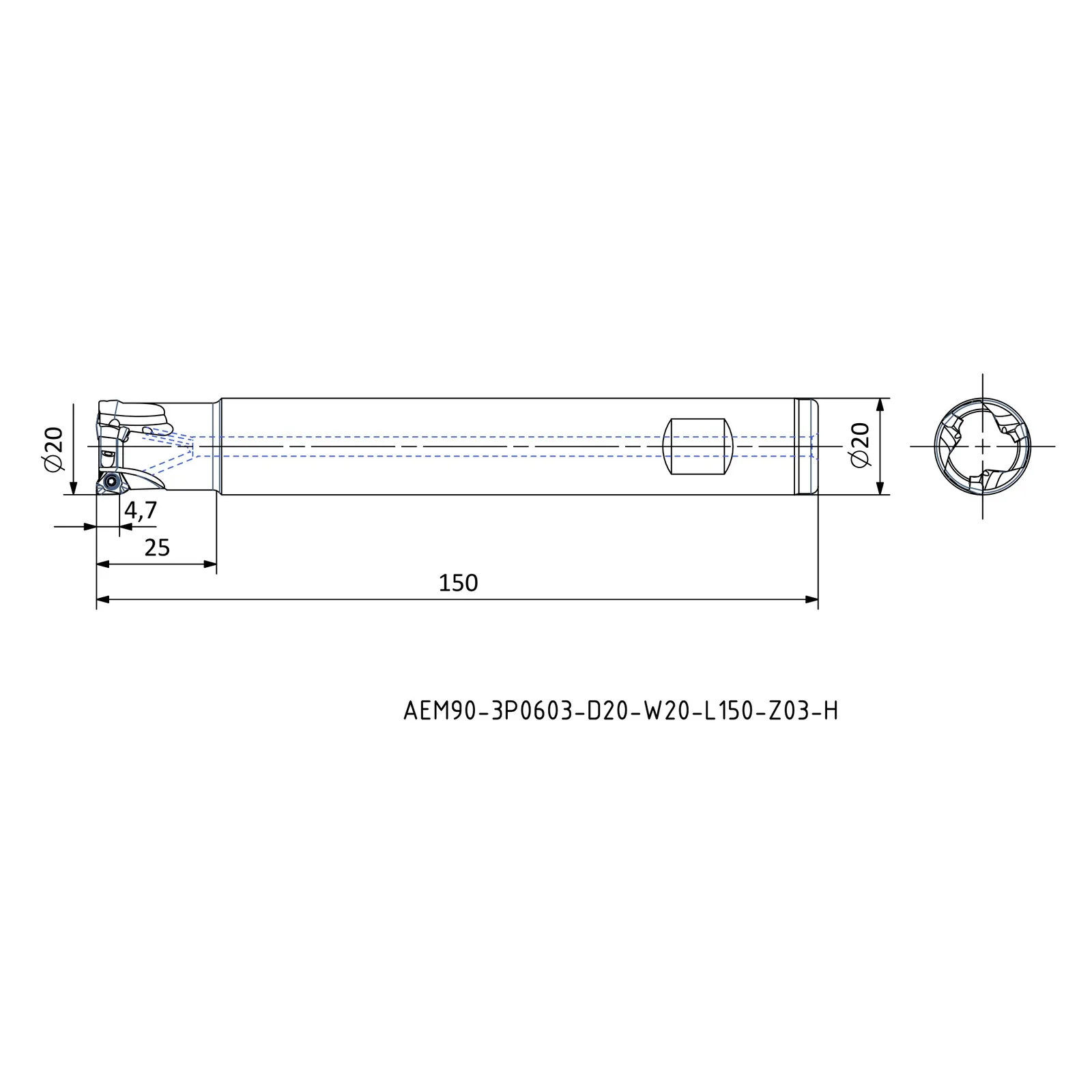

Specifications — AEM90-3P0603-D20-W20-L150-Z03-H
| Insert Code | Insert designation | 3PKT 0603.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 25 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 4.7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 15 sizes in AEM90-3P
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-3P1004-D26-C25-L200-Z02 | R | 26 | 25 | 200 |
| AEM90-3P1004-D26-C25-L250-Z02 | R | 26 | 25 | 250 |
| AEM90-3P1004-D33-C32-L200-Z03 | R | 33 | 32 | 200 |
| AEM90-3P1004-D33-C32-L250-Z03 | R | 33 | 32 | 250 |
| AEM90-3P0603-D12-C12-L120-Z01-H | R | 12 | 12 | 120 |
| AEM90-3P0603-D16-W16-L120-Z03-H | R | 16 | 16 | 120 |
| AEM90-3P0603-D20-W20-L150-Z03-H | R | 20 | 20 | 150 |
| AEM90-3P0603-D25-W25-L150-Z05-H | R | 25 | 25 | 150 |
| AEM90-3P1004-D20-W20-L150-Z02 | R | 20 | 20 | 150 |
| AEM90-3P1004-D21-C20-L200-Z02 | R | 21 | 20 | 200 |
| AEM90-3P1004-D22-W20-L150-Z02 | R | 22 | 20 | 150 |
| AEM90-3P1004-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-3P1505-D32-W32-L150-Z03 | R | 32 | 32 | 150 |
| AEM90-3P1505-D38-W32-L150-Z03 | R | 38 | 32 | 150 |
| AEM90-3P1505-D40-W32-L150-Z04 | R | 40 | 32 | 150 |
