Tool Holders / S-System End Mills
AEM90-3P1004-D22-W20-L150-Z02
AEM90-3P series · see all 15 sizes
Insert compatibility
This size is built for the insert designation 3P (as listed in the catalogue data).

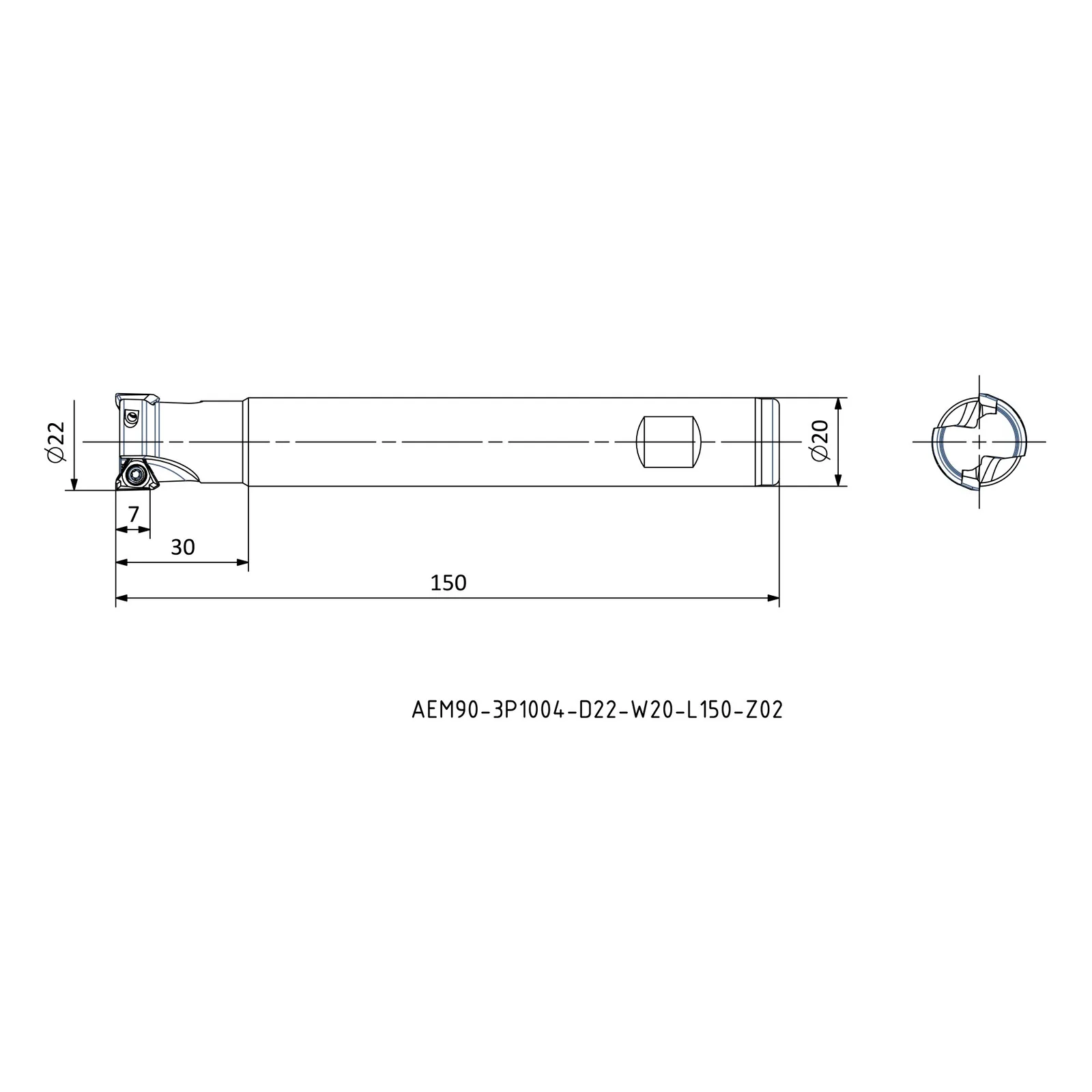

Specifications — AEM90-3P1004-D22-W20-L150-Z02
| Insert Code | Insert designation | 3P.T 1004 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 22 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
