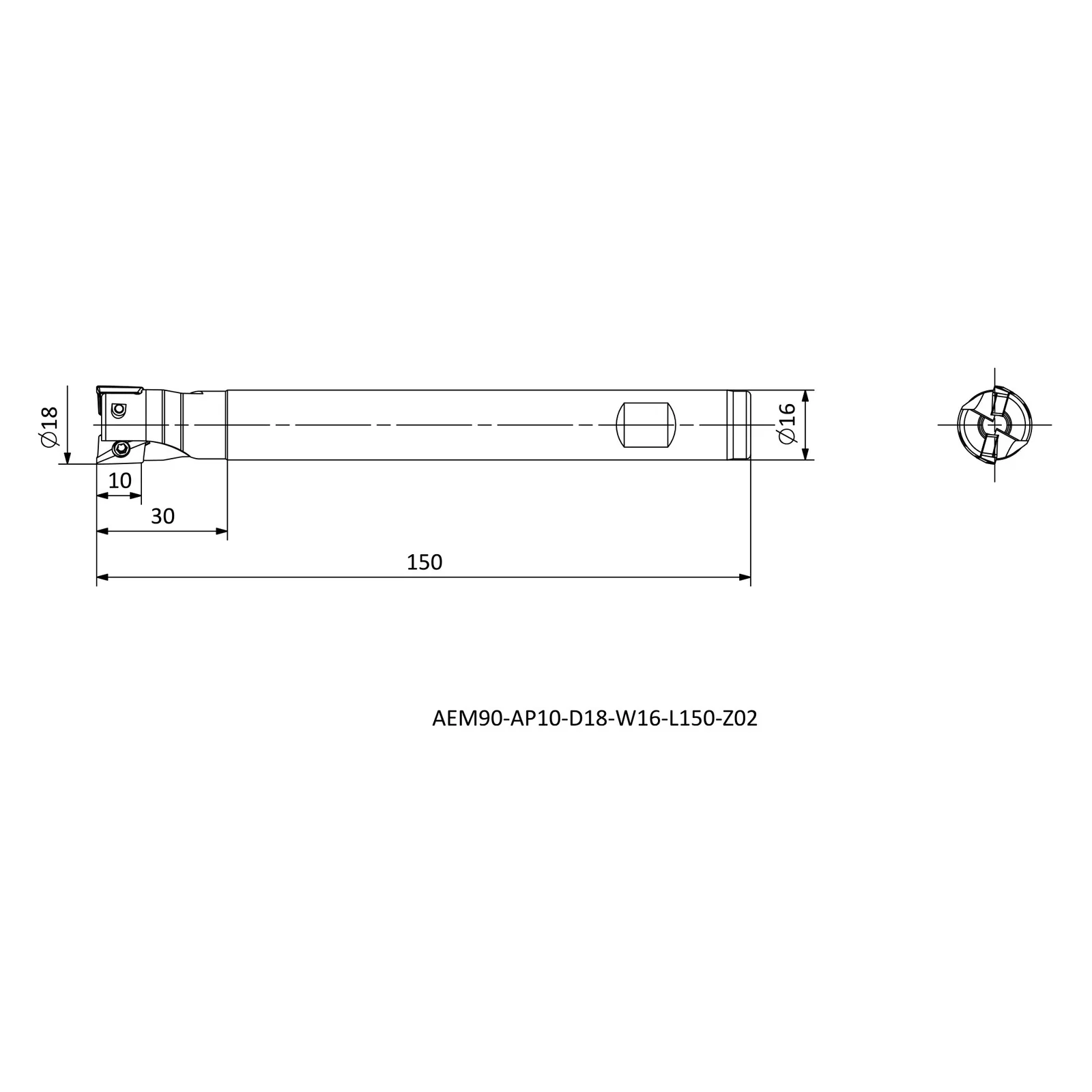

AEM90-AP10-D18-W16-L150-Z02 — dimensioned drawing
Tool Holders / S-System End Mills

AEM90-AP10-D18-W16-L150-Z02

AEM90-AP series · see all 99 sizes

Insert compatibility

This size is built for the insert designation AP.. 1003 (as listed in the catalogue data).

Ask about this size

Specifications — AEM90-AP10-D18-W16-L150-Z02

Insert Code Insert designation AP.. 1003..
Product Direction Cutting direction (hand) R
DC Cutting diameter (mm) 18
DCON Connection diameter (mm) 16
LF Functional length (mm) 150
LH Head length (mm) 30
ZEFP Effective cutting edges 2
APMX Depth of cut, maximum (mm) 10

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 99 sizes in AEM90-AP

Product codeCutting direction (hand)Cutting diameter (mm)Connection diameter (mm)Functional length (mm)
AEM90-AP10-D16-C16-L250-Z02-H R1416250
AEM90-AP10-D32-W32-L120-Z04-H R3232120
AEM90-AP16-D25-C20-L100-Z02-H R2520100
AEM90-AP16-D32-C25-L110-Z03-H R3225110
AEM90-AP10-D32-C32-L120-Z04-H R3232120
AEM90-AP16-D25-W25-L200-Z02 R2525200
AEM90-AP16-D32-C32-L200-Z02 R3232200
AEM90-AP10-D20.5-C20-L90-Z03 R20.52090
AEM90-AP10-D16-C16-L250-Z02 R1716150
AEM90-AP10-D40-W32-L150-Z05 R4032150
AEM90-AP16-D25-W25-L100-Z02-H R2525100
AEM90-AP10-D21-C20-L200-Z03-H R2120200
AEM90-AP16-D30-W25-L110-Z03-H R3025110
AEM90-AP10-D12-C16-L100-Z01-H R1216100
AEM90-AP10-D22-W20-L100-Z03-H R2220100
AEM90-AP16-D32-C32-L150-Z03 R3232150
AEM90-AP10-D25-C25-L200-Z03 R2525200
AEM90-AP10-D32-C25-L120-Z04-H R3225120
AEM90-AP16-D32-W32-L150-Z03-H R3232150
AEM90-AP10-D25-C25-L250-Z02 R2525250
AEM90-AP10-D32-C25-L150-Z04 R3225150
AEM90-AP10-D20-C20-L150-Z03-H R2020150
AEM90-AP10-D21-C20-L150-Z03 R2120200
AEM90-AP16-D25-C25-L250-Z02 R2525250
AEM90-AP10-D25-W25-L100-Z04-H R2525100
AEM90-AP16-D30-W25-L150-Z03 R3025150
AEM90-AP10-D25-W25-L95-Z04-H R252595
AEM90-AP16-D32-C25-L200-Z03-H R3225200
AEM90-AP10-D10-C10-L100-Z01 R1010100
AEM90-AP10-D16-C16-L200-Z02 R1616200
AEM90-AP16-D40-C32-L250-Z02 R4032250
AEM90-AP10-D16-C16-L120-Z02-H R1616120
AEM90-AP10-D20-C20-L100-Z03-H R2020100
AEM90-AP16-D28-W25-L150-Z03 R2825150
AEM90-AP10-D16-W16-L85-Z02-H R161685
AEM90-AP10-D20-C20-L150-Z03 R2020150
AEM90-AP16-D30-W25-L150-Z02 R3025150
AEM90-AP10-D16-W16-L150-Z02 R1616150
AEM90-AP16-D32-C32-L250-Z02 R3232250
AEM90-AP10-D16-C16-L150-Z02 R1616150
AEM90-AP16-D32-W25-L150-Z03 R3225150
AEM90-AP10-D17-C16-L150-Z02 R1716250
AEM90-AP16-D32-W32-L150-Z03 R3232150
AEM90-AP10-D18-W16-L100-Z02-H R1816100
AEM90-AP10-D32-C32-L130-Z05 R3232130
AEM90-AP16-D36-W32-L110-Z03-H R3632110
AEM90-AP10-D14-W16-L150-Z01 R1416150
AEM90-AP10-D20-C20-L120-Z03-H R2020120
AEM90-AP10-D32-W25-L150-Z04 R3225150
AEM90-AP10-D20-C20-L200-Z02 R2020200
AEM90-AP10-D32-W32-L150-Z04 R3232150
AEM90-AP10-D12-W16-L100-Z01-H R1216100
AEM90-AP10-D20-C20-L200-Z03-H R2020200
AEM90-AP16-D25-C20-L100-Z02 R2520100
AEM90-AP10-D16-C16-L100-Z02-H R1616100
AEM90-AP10-D20-W20-L100-Z03-H R2020100
AEM90-AP16-D40-C32-L150-Z04 R4032150
AEM90-AP10-D16-W16-L100-Z02-H R1616100
AEM90-AP10-D20-W20-L90-Z03-H R202090
AEM90-AP10-D16-W16-L150-Z02-H R1616150
AEM90-AP10-D24-W20-L150-Z03 R2420150
AEM90-AP10-D25-W25-L100-Z03-H R2525100
AEM90-AP10-D30-C25-L120-Z04-H R3025120
AEM90-AP10-D25-W25-L150-Z04-H R2525150
AEM90-AP10-D32-C32-L170-Z04 R3232170
AEM90-AP10-D20-C19-L180-Z02 R2019180
AEM90-AP10-D32-W25-L105-Z05-H R3225105
AEM90-AP16-D32-W32-L110-Z03-H R3232110
AEM90-AP10-D20-C20-L250-Z02-H R2020250
AEM90-AP10-D22-W20-L150-Z03 R2220150
AEM90-AP10-D25-C25-L120-Z03-H R2525120
AEM90-AP10-D25-C25-L200-Z02 R2525200
AEM90-AP10-D14-W16-L100-Z01-H R1416100
AEM90-AP10-D16-C16-L200-Z02-H R1616200
AEM90-AP10-D16-W16-L200-Z02 R1616200
AEM90-AP16-D25-W25-L150-Z02 R2525150
AEM90-AP10-D21-W20-L150-Z03 R2120150
AEM90-AP16-D28-W25-L100-Z03-H R2825100
AEM90-AP10-D23-W20-L150-Z03 R2320150
AEM90-AP16-D32-C32-L250-Z03 R3232250
AEM90-AP10-D25-C25-L100-Z03-H R2525100
AEM90-AP16-D35-W32-L150-Z03 R3532150
AEM90-AP10-D25-C25-L150-Z03 R2525150
AEM90-AP16-D40-C32-L250-Z04 R4032250
AEM90-AP10-D25-W25-L150-Z03 R2525150
AEM90-AP10-D12-W16-L150-Z01 R1216150
AEM90-AP16-D40-W32-L150-Z04 R4032150
AEM90-AP10-D16-C16-L150-Z02-H R1616150
AEM90-AP10-D18-W16-L150-Z02 R1816150
AEM90-AP10-D26-C25-L200-Z04 R2625200
AEM90-AP16-D36-W32-L150-Z03 R3632150
AEM90-AP10-D30-C25-L150-Z04 R3025150
AEM90-AP16-D40-W32-L110-Z04-H R4032110
AEM90-AP10-D20-C20-L250-Z02 R2020250
AEM90-AP10-D32-C25-L100-Z04-H R3225100
AEM90-AP10-D20-W20-L150-Z03 R2020150
AEM90-AP10-D21-C20-L200-Z03 R2120200
AEM90-AP10-D22.5-W20-L150-Z03 R22.520150
AEM90-AP10-D30-C25-L100-Z04-H R3025100
