Tool Holders / S-System End Mills
AEM90-AP1135A-D25-C25-L200-Z03
AEM90-AP-ACHTK series · see all 11 sizes
Insert compatibility
This size is built for the insert designation APMT 1135 (as listed in the catalogue data).

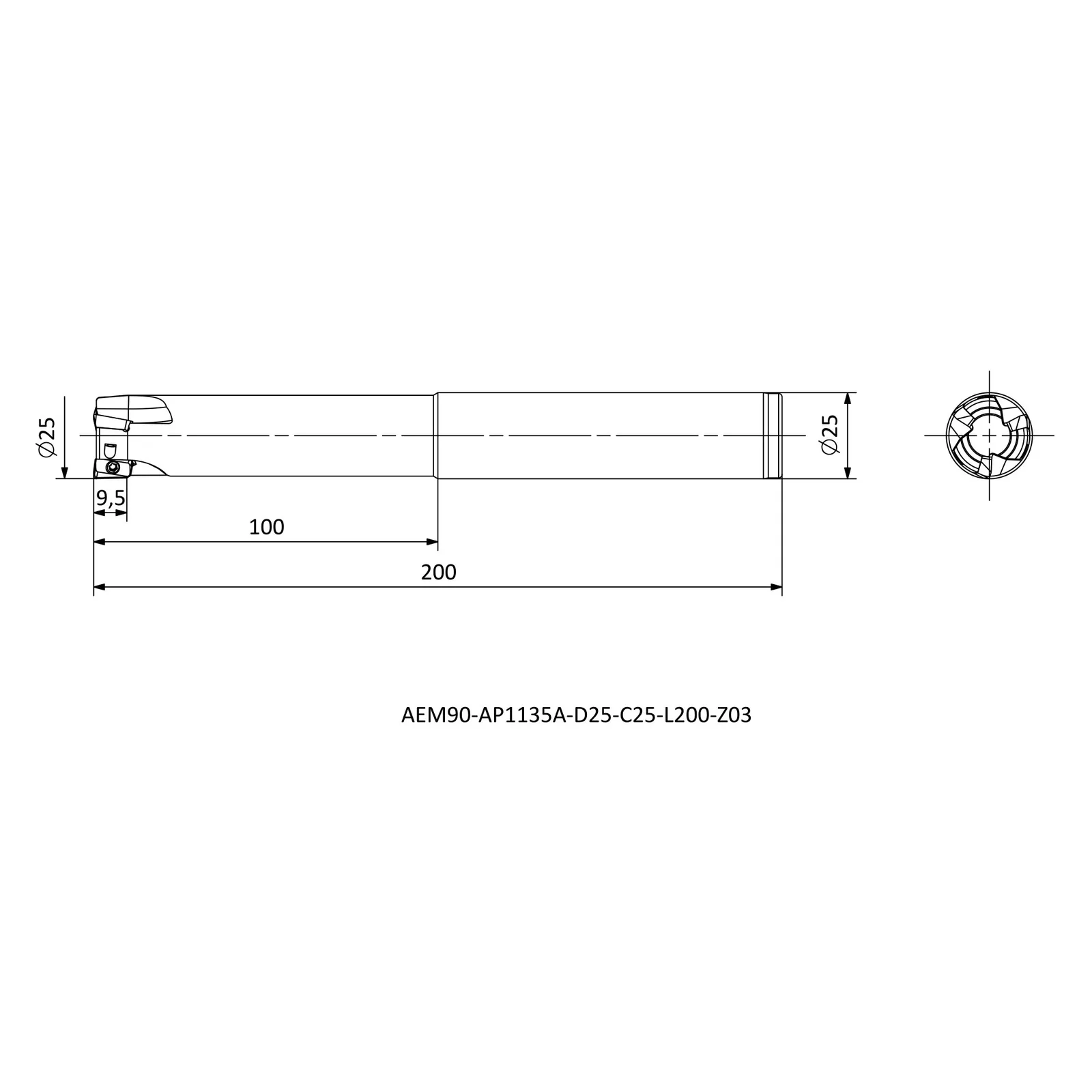

Specifications — AEM90-AP1135A-D25-C25-L200-Z03
| Insert Code | Insert designation | APMT 1135.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 200 |
| LH | Head length (mm) | 100 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 9.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AEM90-AP-ACHTK
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AP1135A-D16-C16-L200-Z02 | R | 16 | 16 | 200 |
| AEM90-AP1135A-D16-C16-L250-Z02 | R | 16 | 16 | 250 |
| AEM90-AP1135A-D16-C16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-AP1135A-D25-C25-L200-Z03 | R | 25 | 25 | 200 |
| AEM90-AP1135A-D33-C32-L250-Z02 | R | 33 | 32 | 250 |
| AEM90-AP1135A-D17-C16-L180-Z02 | R | 17 | 16 | 180 |
| AEM90-AP1135A-D20-C20-L200-Z02 | R | 20 | 20 | 200 |
| AEM90-AP1135A-D20-C20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-AP1135A-D21-C20-L180-Z02 | R | 21 | 20 | 180 |
| AEM90-AP1135A-D14-C16-L150-Z01 | R | 14 | 16 | 150 |
| AEM90-AP1135A-D26-C25-L250-Z02 | R | 26 | 25 | 250 |
