Tool Holders / S-System End Mills
AEM90-AP1135A-D33-C32-L250-Z02
AEM90-AP-ACHTK series · see all 11 sizes
Insert compatibility
This size is built for the insert designation APMT 1135 (as listed in the catalogue data).

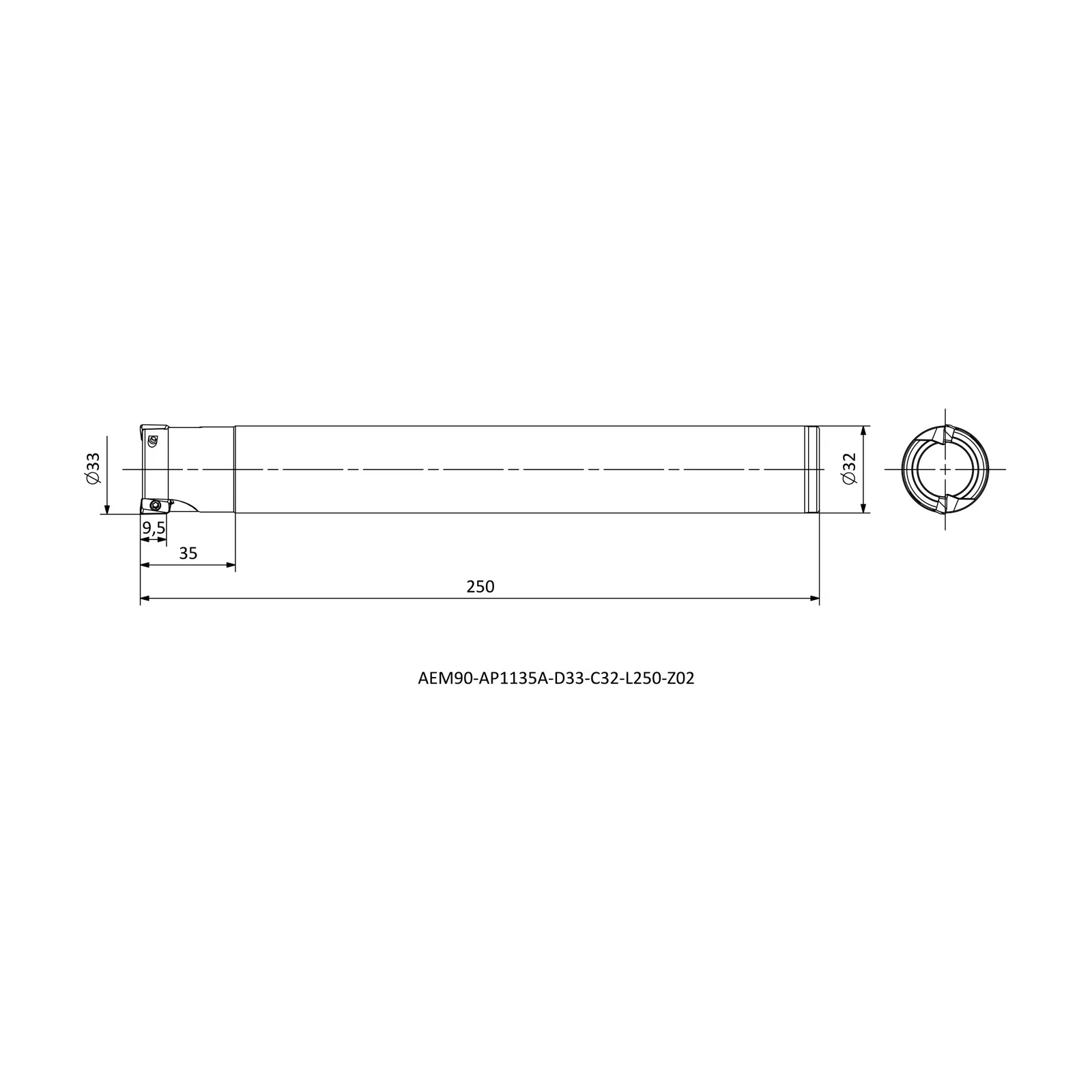

Specifications — AEM90-AP1135A-D33-C32-L250-Z02
| Insert Code | Insert designation | APMT 1135.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 33 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 250 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 9.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AEM90-AP-ACHTK
