Tool Holders / S-System End Mills

AEM90-AP09-D26-C25-L150-Z04

Name: AEM90-AP09-D26-C25-L150-Z04
Brand: Axior
SKU: AEM90-AP09-D26-C25-L150-Z04

AEM90-AP-TGTC series · see all 28 sizes

This size is built for the insert designation APKT 09T3 (as listed in the catalogue data).

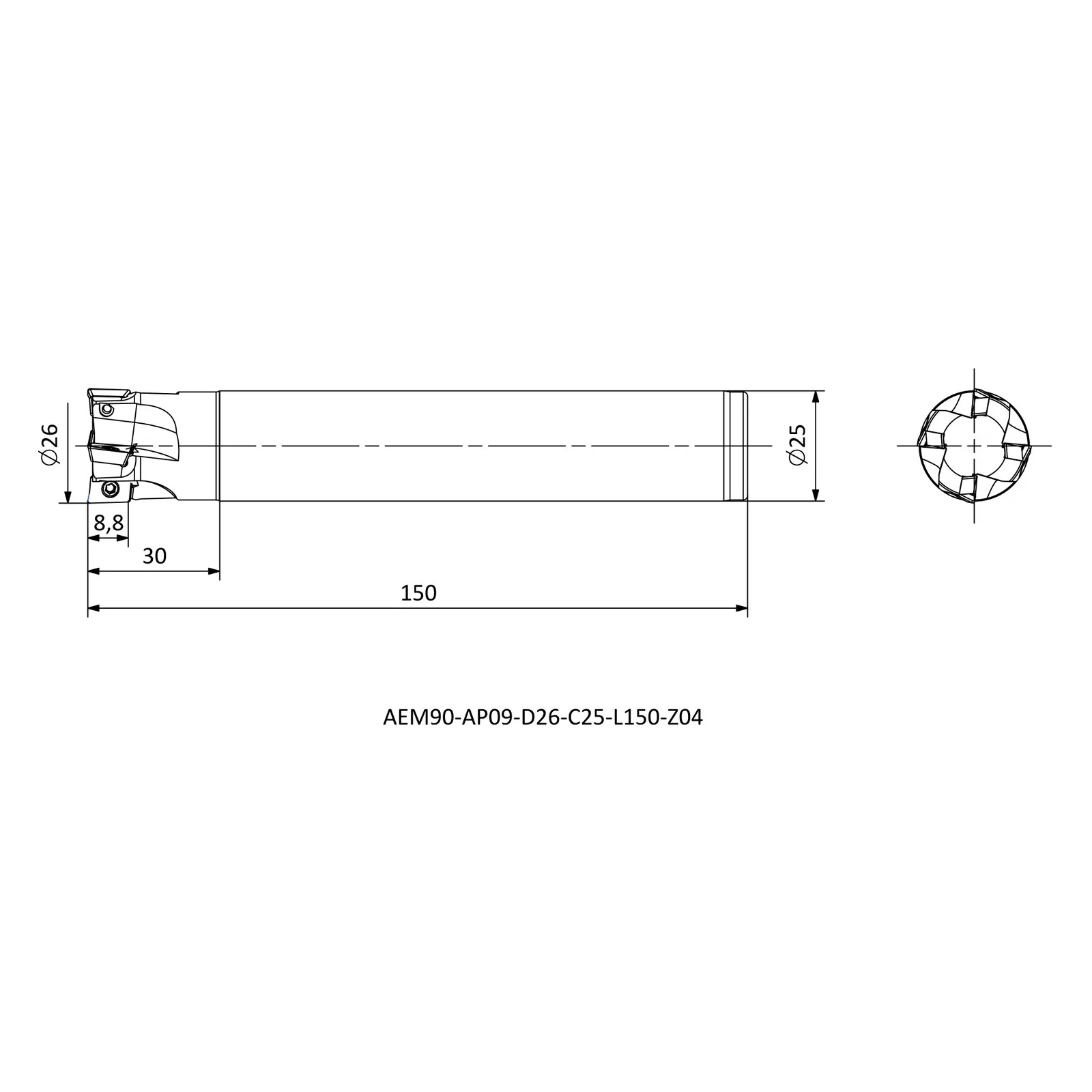

Specifications — AEM90-AP09-D26-C25-L150-Z04

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Functional length (mm)
AEM90-AP1204-D21-C20-L200-Z02	R	21	20	200
AEM90-AP09-D20-C20-L250-Z02-H	R	20	20	250
AEM90-AP1705-D25-C25-L120-Z02	R	25	25	120
AEM90-AP1705-D26-C25-L200-Z02	R	26	25	200
AEM90-AP1204-D22-C20-L200-Z02	R	22	20	200
AEM90-AP1705-D26-C25-L250-Z02	R	26	25	250
AEM90-AP1204-D25-C25-L150-Z03	R	25	25	150
AEM90-AP1705-D26-C25-L300-Z02	R	26	25	300
AEM90-AP1705-D28-W25-L075-Z02	R	28	25	75
AEM90-AP09-D17-C16-L150-Z02	R	17	16	150
AEM90-AP1705-D32-C25-L150-Z03	R	32	25	150
AEM90-AP09-D21-C20-L150-Z03	R	21	20	150
AEM90-AP1705-D33-C32-L250-Z03	R	33	32	250
AEM90-AP1705-D33-C32-L300-Z02	R	33	32	300
AEM90-AP09-D16-C16-L200-Z02-H	R	16	16	200
AEM90-AP09-D17-C16-L180-Z02-H	R	17	16	180
AEM90-AP09-D20-C20-L150-Z03-H	R	20	20	150
AEM90-AP09-D26-C25-L150-Z04	R	26	25	150
AEM90-AP1204-D21-C20-L150-Z02	R	21	20	150
AEM90-AP09-D16-C16-L100-Z02-H	R	16	16	100
AEM90-AP1204-D26-C25-L250-Z02	R	26	25	250
AEM90-AP1204-D20-C20-L150-Z02	R	20	20	150
AEM90-AP09-D16-C15-L150-Z02	R	16	15	150
AEM90-AP1204-D25-C25-L250-Z03	R	25	25	250
AEM90-AP09-D16-W16-L150-Z02-H	R	16	16	150
AEM90-AP1204-D32-C25-L150-Z03	R	32	25	150
AEM90-AP09-D20-C20-L200-Z03-H	R	20	20	200
AEM90-AP09-D21-C20-L180-Z02-H	R	21	20	180
