Tool Holders / S-System End Mills
AEM90-AP1705-D33-C32-L300-Z02
AEM90-AP-TGTC series · see all 28 sizes
Insert compatibility
This size is built for the insert designation AP.. 1705 (as listed in the catalogue data).

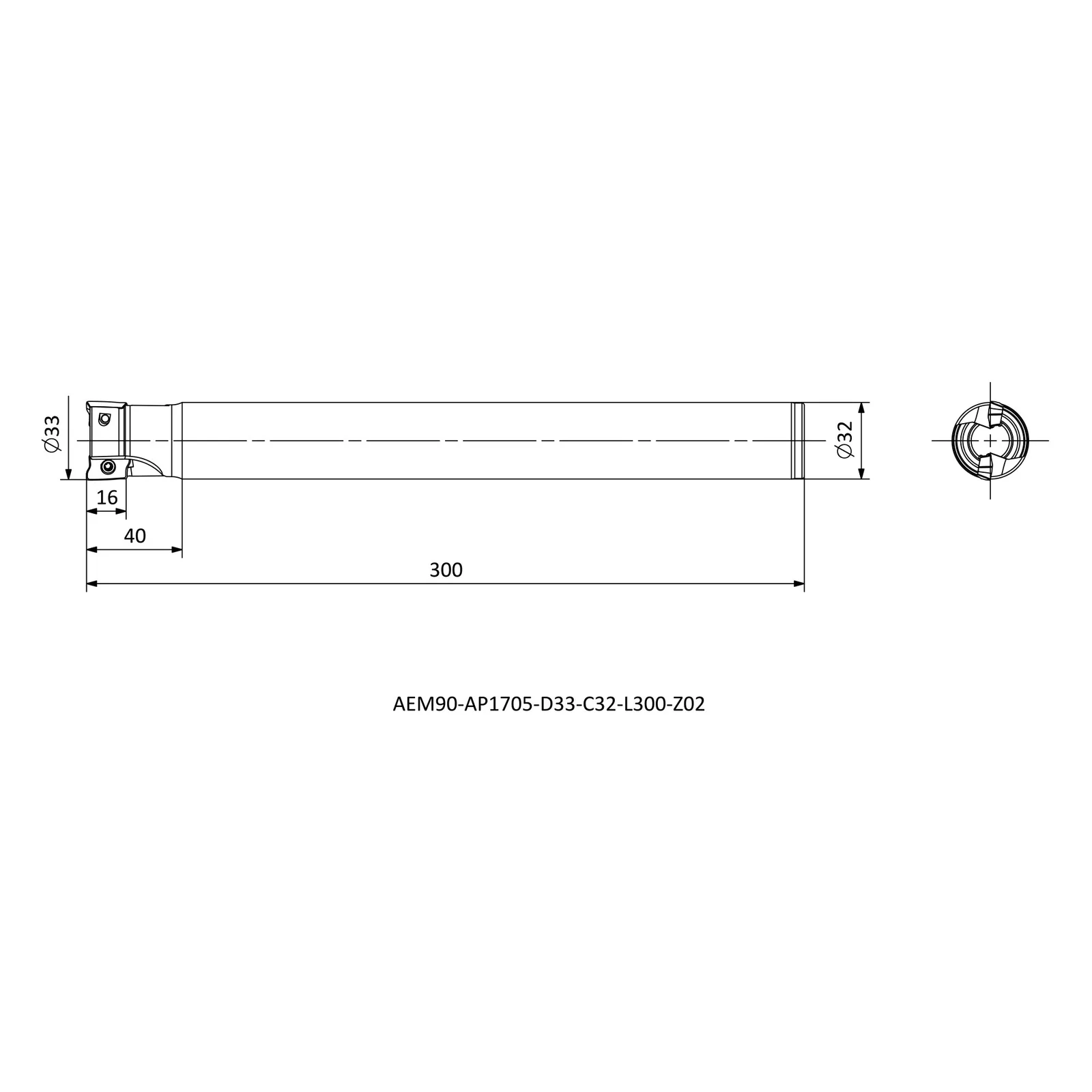

Specifications — AEM90-AP1705-D33-C32-L300-Z02
| Insert Code | Insert designation | AP.. 1705.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 33 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 300 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
