Tool Holders / S-System End Mills

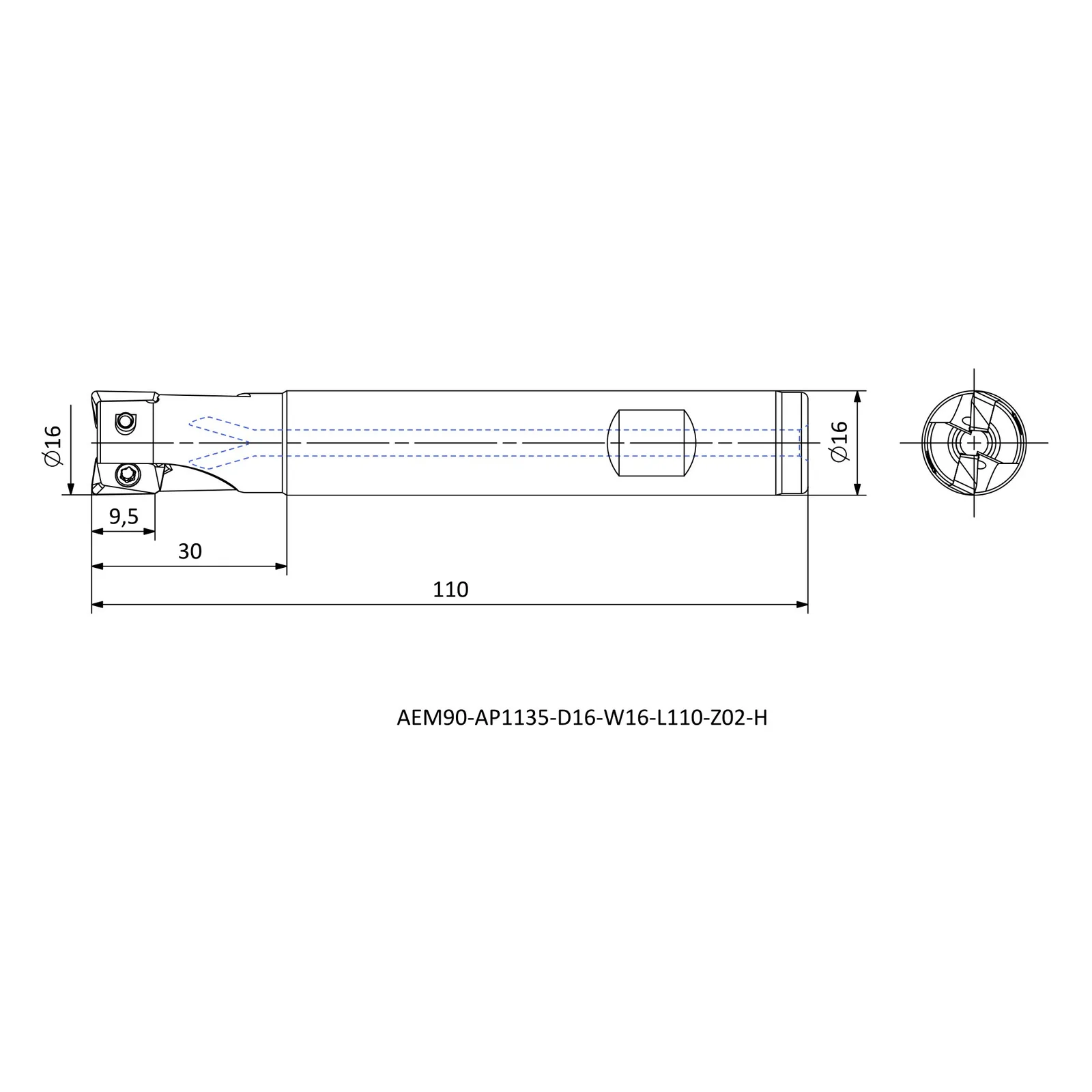

AEM90-AP1135-D16-W16-L110-Z02-H
AEM90-AP-XTC-GSC series · see all 11 sizes
Insert compatibility
This size is built for the insert designation AP.. 1135 (as listed in the catalogue data).
Specifications — AEM90-AP1135-D16-W16-L110-Z02-H
| Insert Code | Insert designation | AP.. 1135.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 16 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 110 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 9.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AEM90-AP-XTC-GSC
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AP1135-D20-W20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-AP1135-D25-W25-L125-Z04-H | R | 25 | 25 | 125 |
| AEM90-AP1135-D16-W16-L110-Z02-H | R | 16 | 16 | 110 |
| AEM90-AP1135-D20-W20-L125-Z03-H | R | 20 | 20 | 125 |
| AEM90-AP1135-D32-W32-L125-Z05-H | R | 32 | 32 | 125 |
| AEM90-AP1135-D32-W32-L200-Z04-H | R | 32 | 32 | 200 |
| AEM90-APK11G-D20-W20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-AP1135-D25-W25-L200-Z04-H | R | 25 | 25 | 200 |
| AEM90-APK11G-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-AP1135-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-APK11G-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
