Tool Holders / S-System End Mills
AEM90-APK11G-D20-W20-L150-Z03
AEM90-AP-XTC-GSC series · see all 11 sizes
Insert compatibility
This size is built for the insert designation APKT 1135 (as listed in the catalogue data).

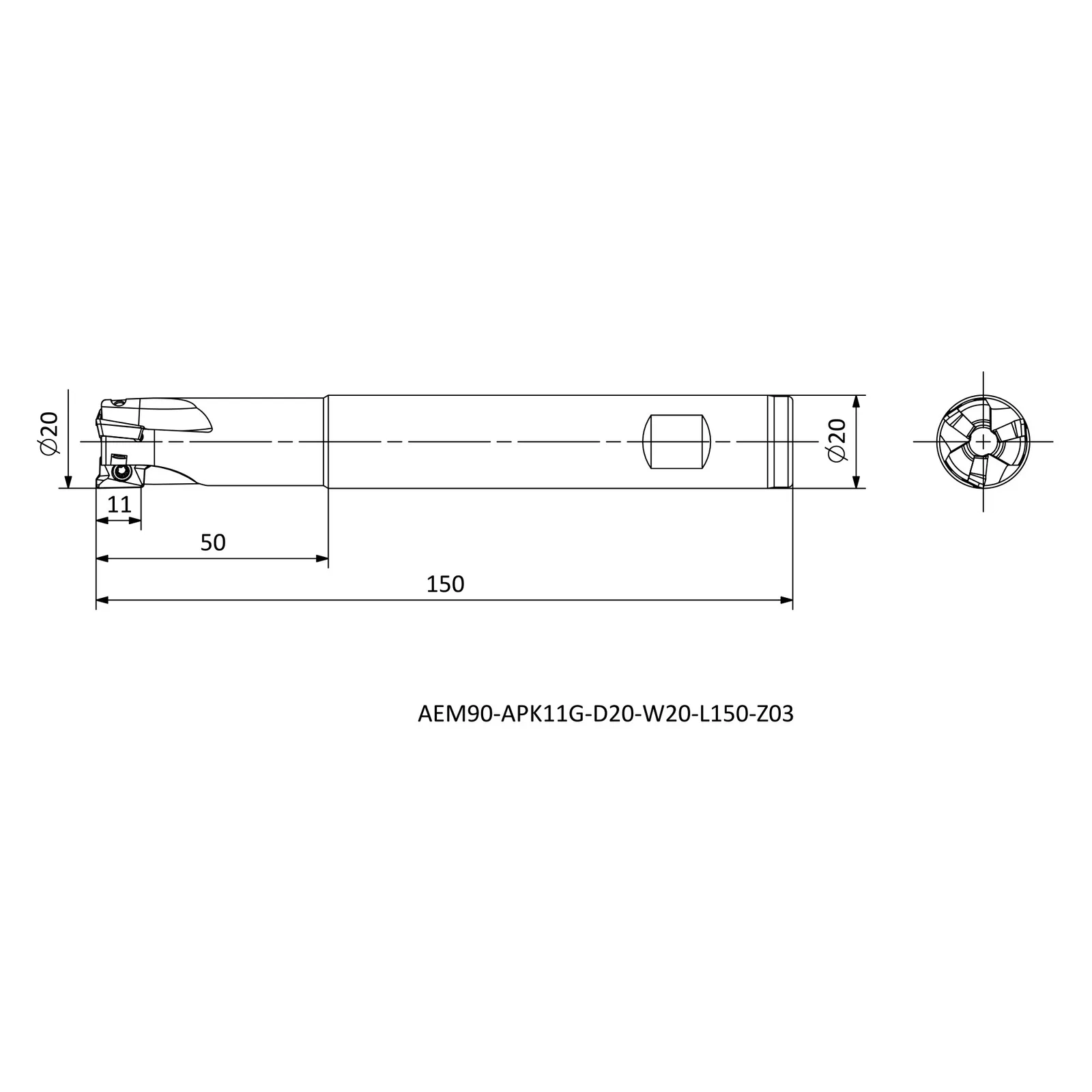

Specifications — AEM90-APK11G-D20-W20-L150-Z03
| Insert Code | Insert designation | APKT 1135.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 26 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
