Tool Holders / S-System End Mills
AEM90-AX0602-D10-C10-L120-Z02
AEM90-AX series · see all 22 sizes
Insert compatibility
This size is built for the insert designation AX.. 0602 (as listed in the catalogue data).

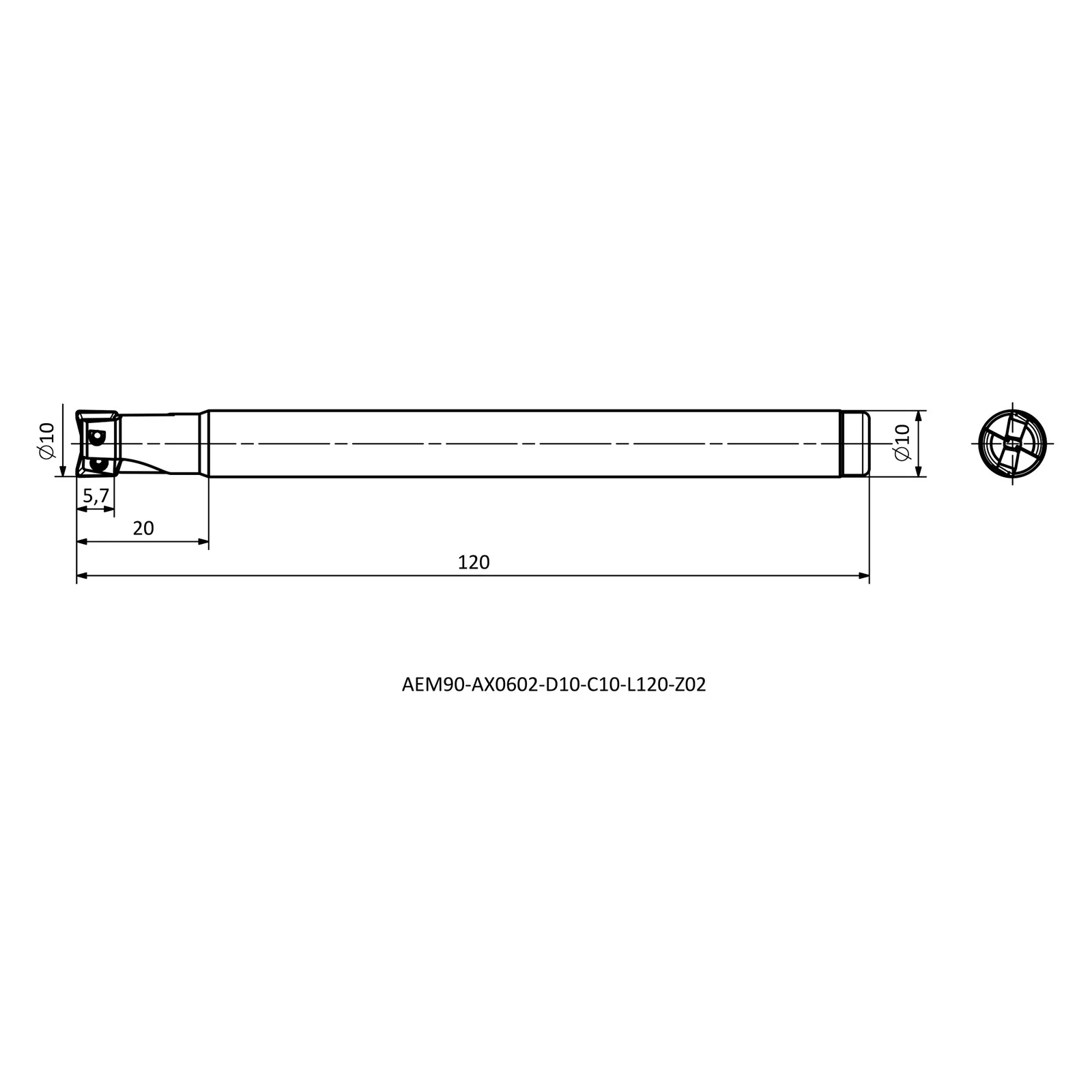

Specifications — AEM90-AX0602-D10-C10-L120-Z02
| Insert Code | Insert designation | AX.. 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 10 |
| DCON | Connection diameter (mm) | 10 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 20 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 5.7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
