Tool Holders / S-System End Mills
AEM90-AX0903-D20-C20-L120-Z03
AEM90-AX series · see all 22 sizes
Insert compatibility
This size is built for the insert designation AX.. 0903 (as listed in the catalogue data).

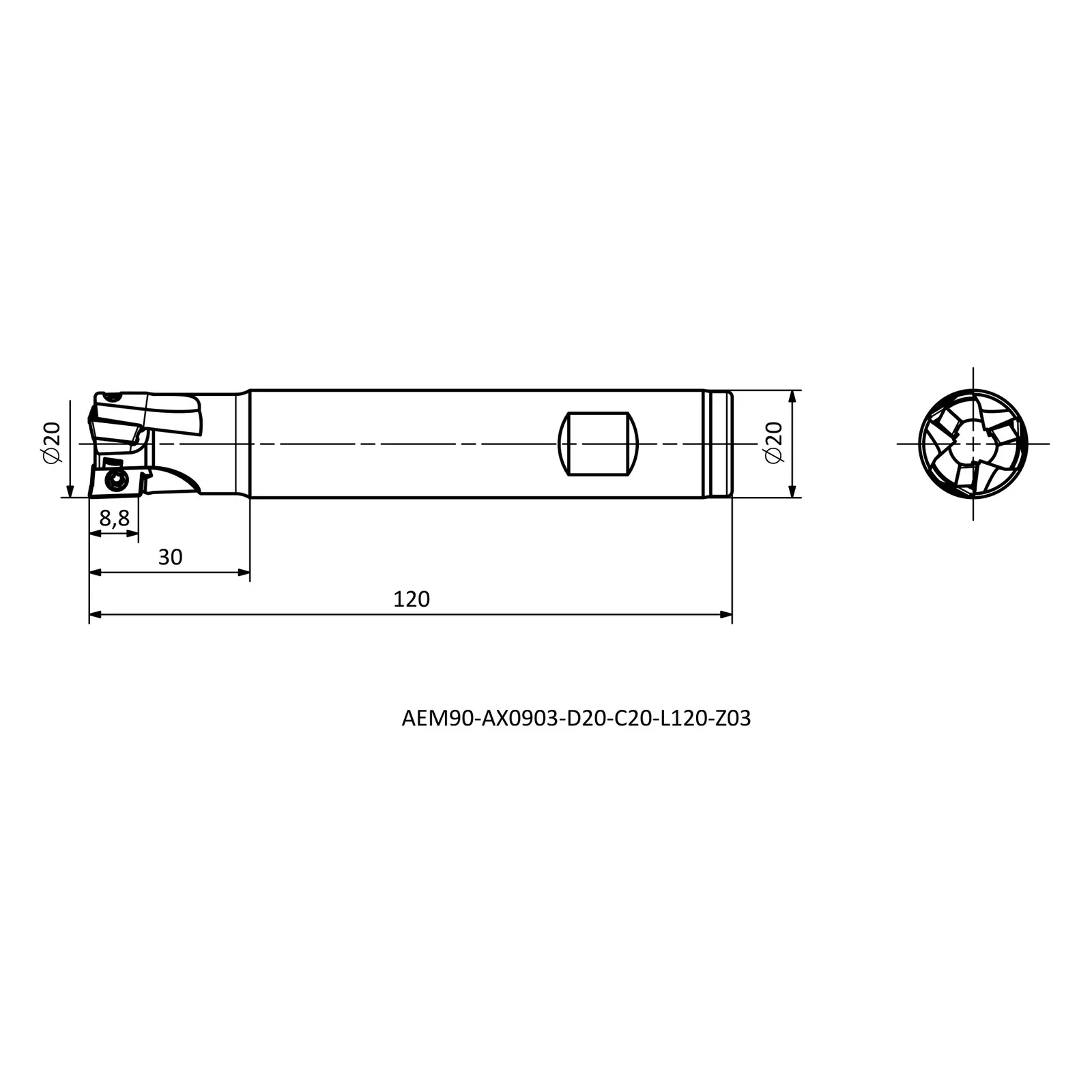

Specifications — AEM90-AX0903-D20-C20-L120-Z03
| Insert Code | Insert designation | AX.. 0903.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 8.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
