Tool Holders / S-System End Mills
AEM90-ED10T3-D20-W20-L120-Z02
AEM90-ED series · see all 5 sizes
Insert compatibility
This size is built for the insert designation EDPT 10T3 (as listed in the catalogue data).

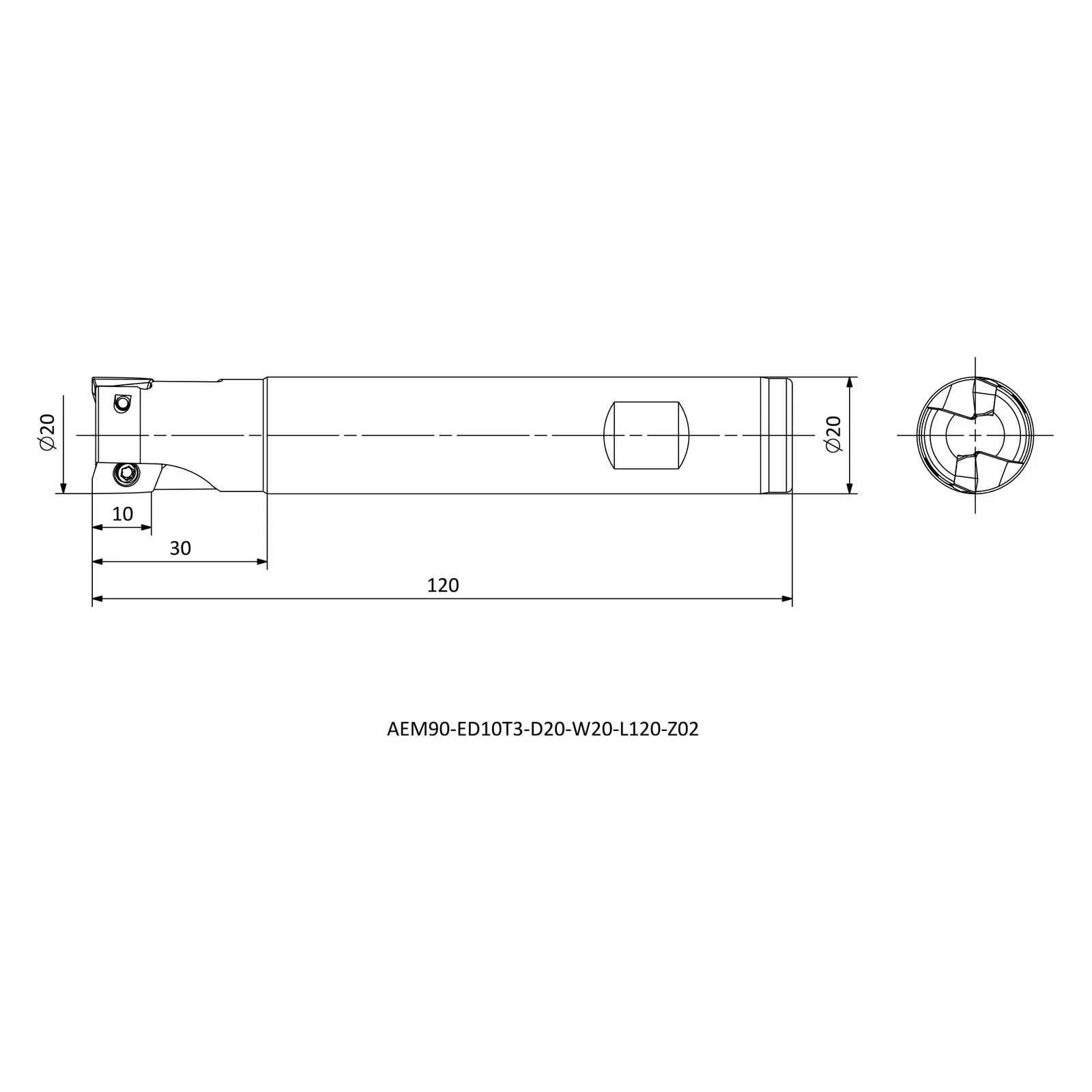

Specifications — AEM90-ED10T3-D20-W20-L120-Z02
| Insert Code | Insert designation | EDPT 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 30 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AEM90-ED
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-ED10T3-D16-W16-L120-Z02 | R | 16 | 16 | 120 |
| AEM90-ED10T3-D20-W20-L120-Z02 | R | 20 | 20 | 120 |
| AEM90-ED1404-D20-W20-L150-Z02 | R | 20 | 20 | 150 |
| AEM90-ED1404-D25-W25-L150-Z02 | R | 25 | 25 | 150 |
| AEM90-ED1404-D30-C25-L150-Z03 | R | 30 | 25 | 150 |
