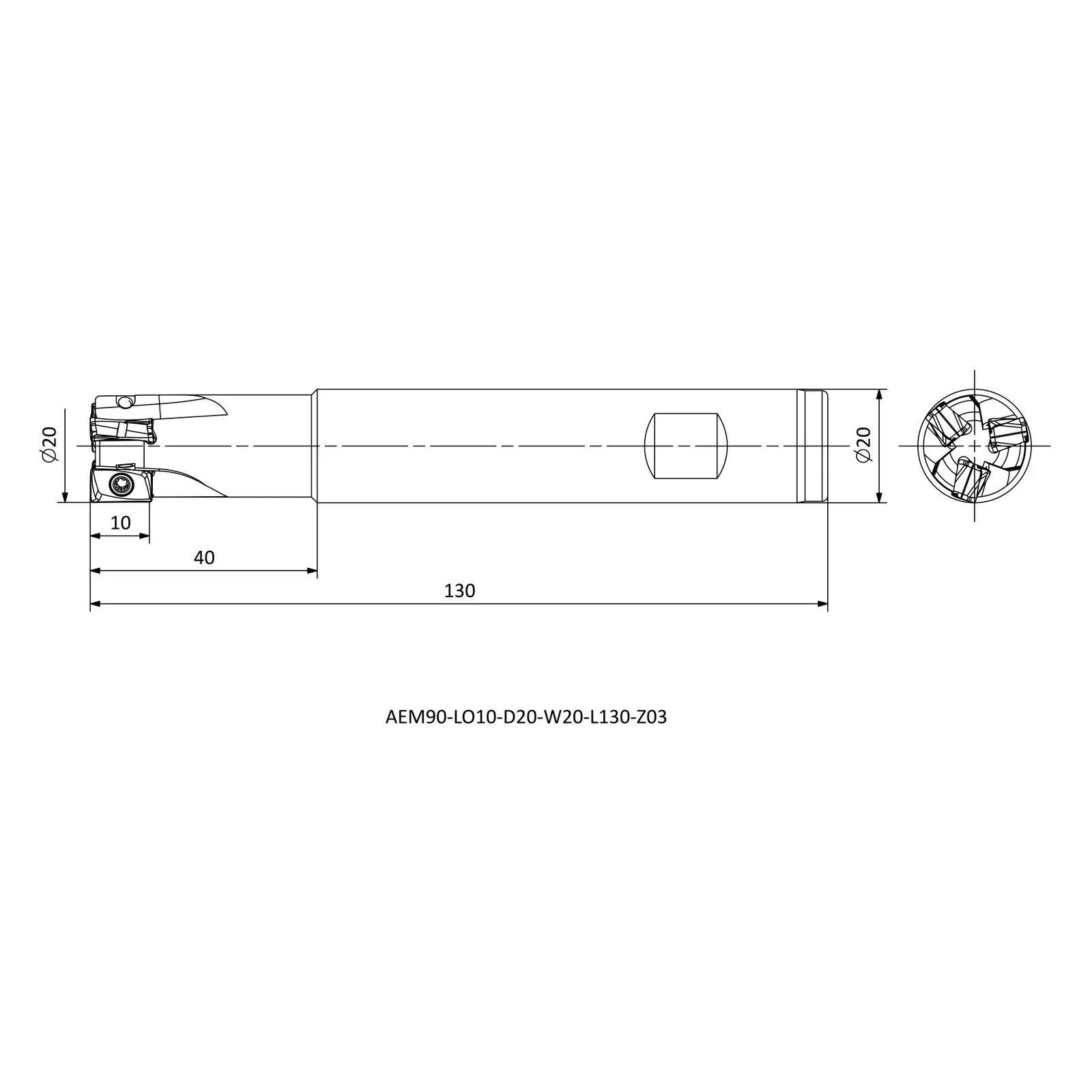

Drag to rotate — real 3D model from the CAD file
Tool Holders / S-System End Mills
AEM90-LO10-D20-W20-L130-Z03
AEM90-LO10 series · see all 5 sizes
Insert compatibility
This size is built for the insert designation LOMU 100408ER (as listed in the catalogue data).
Specifications — AEM90-LO10-D20-W20-L130-Z03
| Insert Code | Insert designation | LOMU100408ER |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 130 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AEM90-LO10
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-LO10-D16-W16-L100-Z02 | R | 16 | 16 | 100 |
| AEM90-LO10-D16-W16-L160-Z02 | R | 16 | 16 | 160 |
| AEM90-LO10-D20-W20-L130-Z03 | R | 20 | 20 | 130 |
| AEM90-LO10-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-LO10-D32-W32-L150-Z04 | R | 32 | 32 | 150 |
