Tool Holders / S-System End Mills

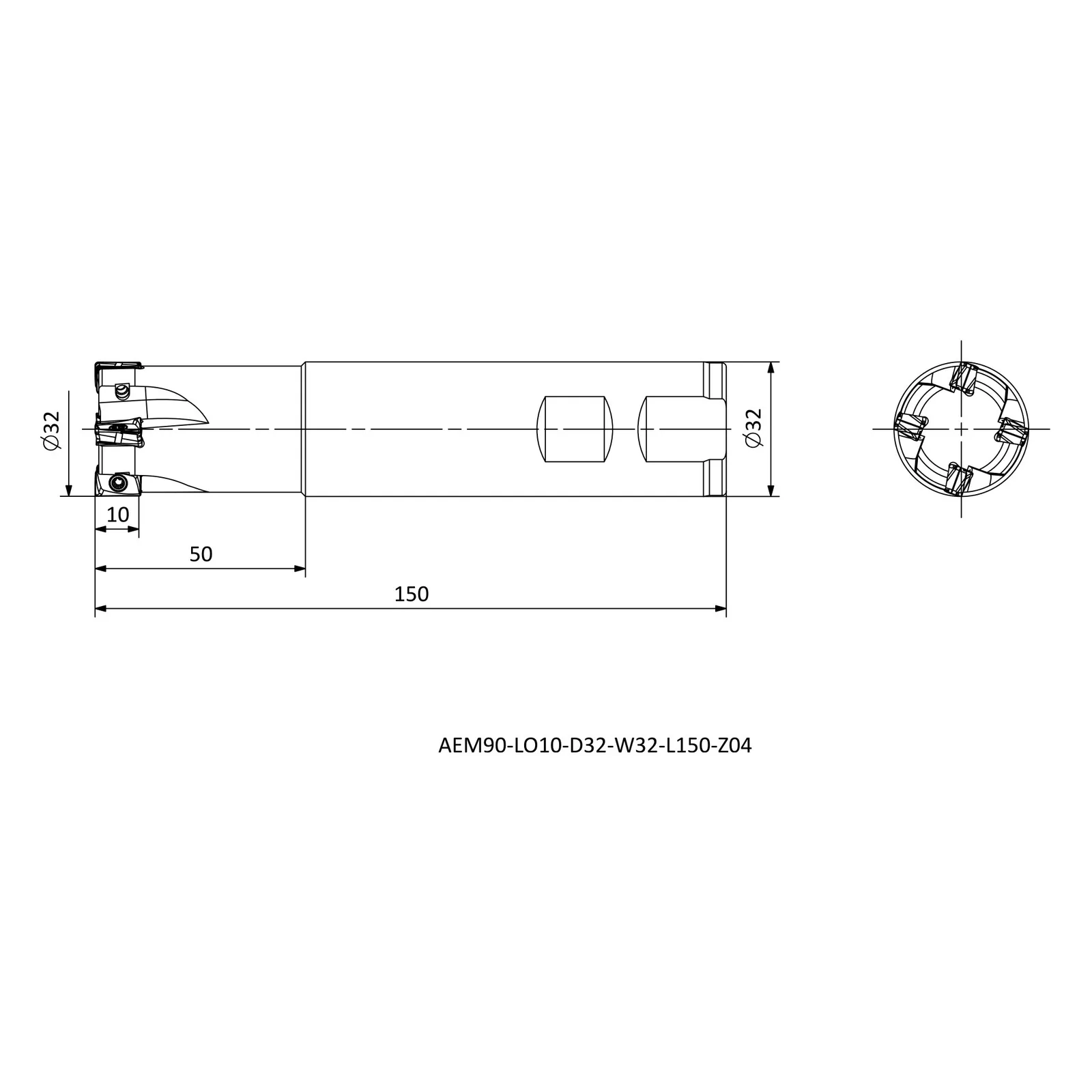

AEM90-LO10-D32-W32-L150-Z04
AEM90-LO10 series · see all 5 sizes
Insert compatibility
This size is built for the insert designation LOMU 100408ER (as listed in the catalogue data).
Specifications — AEM90-LO10-D32-W32-L150-Z04
| Insert Code | Insert designation | LOMU100408ER |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
