Tool Holders / S-System End Mills

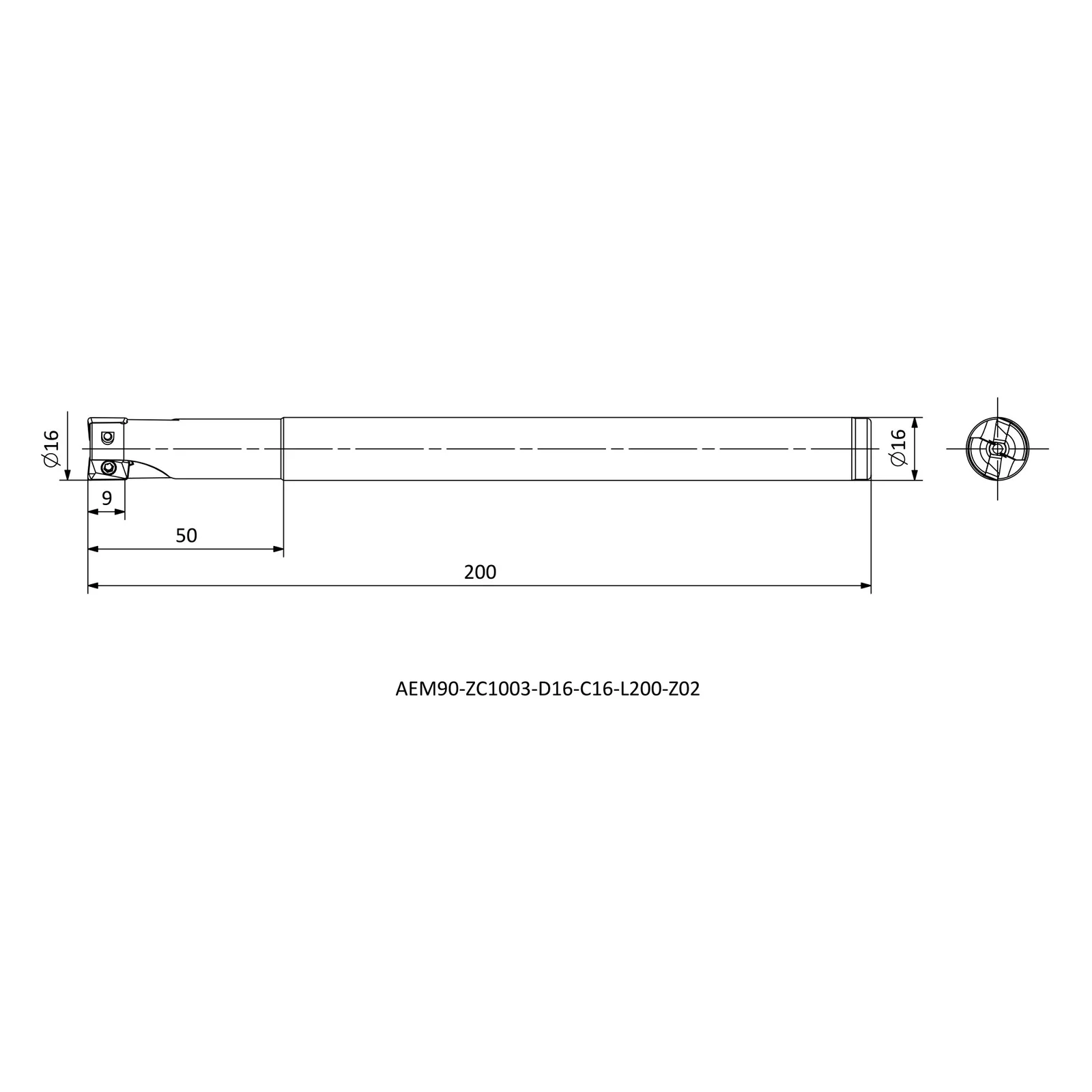

AEM90-ZC1003-D16-C16-L200-Z02
AEM90-ZC series · see all 21 sizes
Insert compatibility
This size is built for the insert designation ZCMT 100308R (as listed in the catalogue data).
Specifications — AEM90-ZC1003-D16-C16-L200-Z02
| Insert Code | Insert designation | ZCMT 100308R |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 16 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 200 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 21 sizes in AEM90-ZC
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-ZC1003-D16-C14-L150-Z02 | R | 16 | 14 | 150 |
| AEM90-ZC1003-D16-C14-L200-Z02 | R | 16 | 14 | 200 |
| AEM90-ZC1003-D16-C15-L150-Z02 | R | 16 | 15 | 150 |
| AEM90-ZC1003-D16-C16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-ZC1003-D16-C16-L200-Z02 | R | 16 | 16 | 200 |
| AEM90-ZC1003-D17-C16-L150-Z02 | R | 17 | 16 | 150 |
| AEM90-ZC1003-D17-C16-L200-Z02 | R | 17 | 16 | 200 |
| AEM90-ZC1003-D20-C18-L150-Z03 | R | 20 | 18 | 150 |
| AEM90-ZC1003-D20-C18-L200-Z02 | R | 20 | 18 | 200 |
| AEM90-ZC1003-D20-C20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-ZC1003-D20-C18-L200-Z03 | R | 20 | 18 | 200 |
| AEM90-ZC1003-D21-C20-L150-Z02 | R | 21 | 20 | 150 |
| AEM90-ZC1003-D21-C20-L150-Z03 | R | 21 | 20 | 150 |
| AEM90-ZC1003-D21-C20-L200-Z03 | R | 21 | 20 | 200 |
| AEM90-ZC1003-D25-C20-L150-Z03 | R | 25 | 20 | 150 |
| AEM90-ZC1003-D25-C20-L200-Z03 | R | 25 | 20 | 200 |
| AEM90-ZC1003-D25-C25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-ZC1003-D26-C25-L170-Z03 | R | 26 | 25 | 170 |
| AEM90-ZC1003-D26-C25-L200-Z03 | R | 26 | 25 | 200 |
| AEM90-ZC1003-D32-C25-L180-Z04 | R | 32 | 25 | 180 |
| AEM90-ZC1003-D33-C32-L200-Z04 | R | 33 | 32 | 200 |
